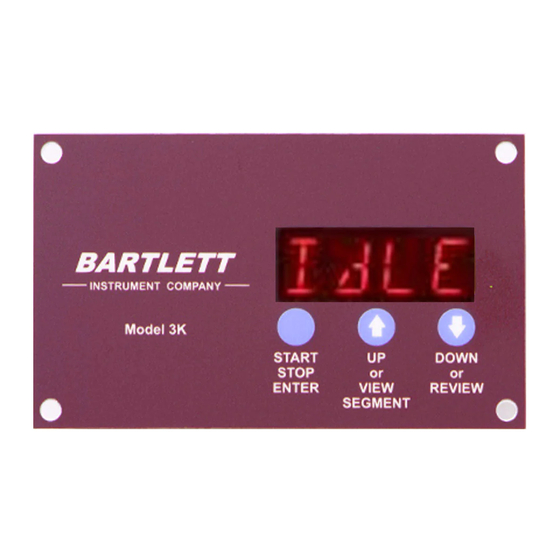

Bartlett 3K Operation Manual
  1. Manuals
  2. Brands
  3. Bartlett Manuals
  4. Controller
  5. 3K
  6. Operation manual

Bartlett 3K Operation Manual

With cone fire
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Operation manual for Model 3K with Cone fire
KEY PAD OPERATION
Function of Each Key at Different Controller Stages
CONTROLLER
STAGE
IDLE
PROGRAMMING
At Ready (redi)
During firing
At complete or
error code
RAMPCONEA 9-18-08
START/STOP/ENTER
KEY
Initiates programming
Stores displayed value
Starts firing
STOPs
the firing
Back to idle
UP ARROW
No function
Increases displayed
value. Hold for
rapid scrolling
No function
Shows current
segment and target
temperature.
Provides access to
skip step and add
time or temperature
No function
DOWN ARROW
Press once to review
and refire last
program.
Press twice to go
directly to "redi"
Decreases displayed
value. Hold for rapid
scrolling
No function
Reviews current
program
No function

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3K and is the answer not in the manual?

Questions and answers

steven watson
February 17, 2025

ERRP is displaying and will not clear by pressing buttons

0
1 comments:
Mr. Anderson
February 17, 2025

To clear the ERRP message on a Bartlett 3K, press any key.

This answer is automatically generated

0

Related Manuals for Bartlett 3K

Summary of Contents for Bartlett 3K

  • Page 1 Operation manual for Model 3K with Cone fire KEY PAD OPERATION Function of Each Key at Different Controller Stages CONTROLLER START/STOP/ENTER UP ARROW DOWN ARROW STAGE Initiates programming No function Press once to review IDLE and refire last program. Press twice to go directly to “redi”...
  • Page 2 Operation manual for Model 3K with Cone fire PROGRAMMING FLOW CHART Note – “enter delay start” is an option that can be disabled and may From idle, not show up. Press enter Use arrow keys to select r-Hd selected C-Fr selected ConeFire or rampHold;...

  • Page 3: Cone Fire Programming

    Operation manual for Model 3K with Cone fire GETTING TO IDLE When power is applied, the display will show the controller’s firmware version and then ErrP, an error code, or IdLE or StOP, flashing with the current temperature. If ErrP is displayed press any key to clear this error message.

  • Page 4: Ramp-Hold Programming

    Operation manual for Model 3K with Cone fire RAMP-HOLD PROGRAMMING STEP DESCRIPTION Start with the display reading IdLE, Press “enter”. Select ramp-hold. If “r-Hd” is displayed, press “enter”, else press an arrow key to display “r-Hd” and then press “enter”.
  • Page 5 Operation manual for Model 3K with Cone fire while holds at peak temperature usually range 10 – 15 minutes to even out the kiln temperature. REPEAT STEPS 5-7 for each segment. DISPLAY WILL SHOW “REDI” (ready) when all segments have been entered.
  • Page 6 Operation manual for Model 3K with Cone fire Add Temperature to Hold Period Available only during a hold period This option allows you to add temperature in 5 degree increments to a hold (soak) period. When in a hold period (during a hold or soak, the temperature in the kiln will be alternating in the display with the remaining hold time), press the UP key.
  • Page 7 Operation manual for Model 3K with Cone fire CONE FIRE PROFILES FAST SEGMENT RAMP RATE °/HR TEMPERATURE HOLD PREHEAT 1050 CT -256 HOLD NOTE CT= CONE TEMPERATURE MEDIUM SEGMENT RAMP RATE °/HR TEMPERATURE HOLD PREHEAT 1050 00.10 CT -256 HOLD...
