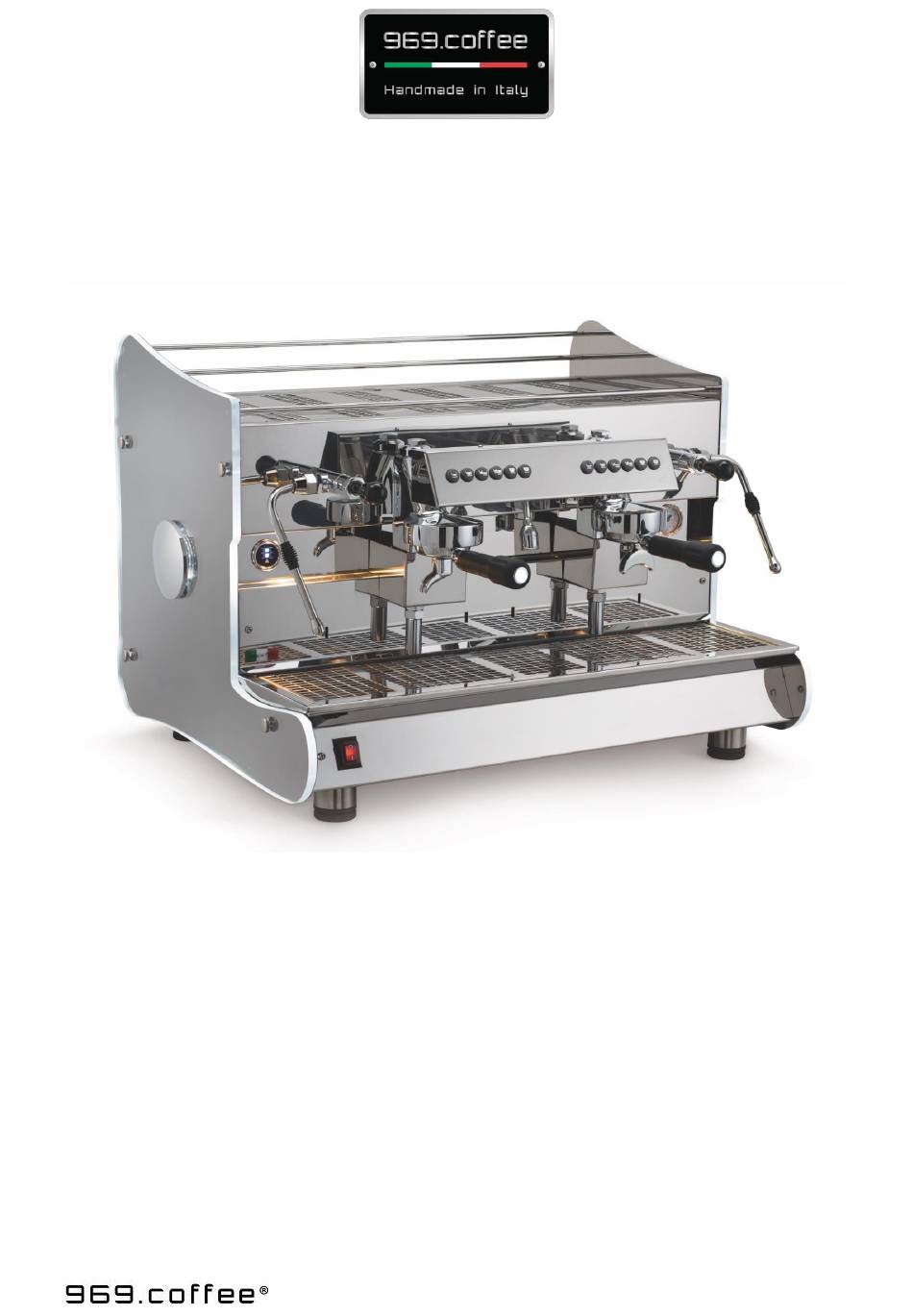

Artika

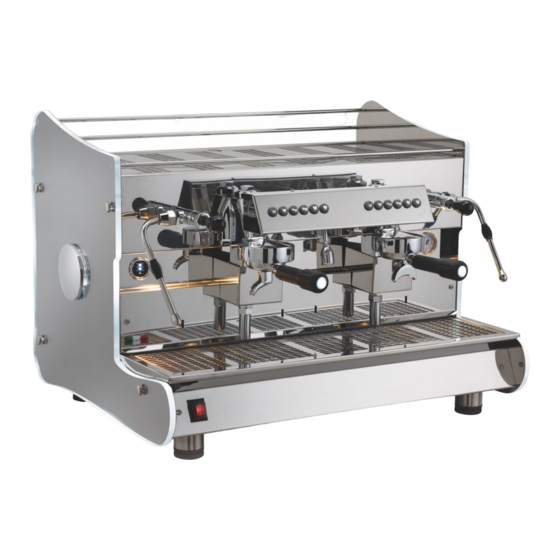

Introduction
The espresso makers described in this manual were specifically designed to fit in rooms with any type of décor and
were created for users who have special requirements as regards space.
They ensure an excellent coffee yield thanks to one of the most tested dispenser units, which permits excellent quality
from the first to the last coffee, thanks to its thermosyphonic circulation.
They are supplied in manual, semiautomatic and electronic versions and are guaranteed by quality components
produced by leading Italian companies in this industry. They are equipped with copper boilers in order to maintain the
tradition of great-tasting coffee!
Warnings
This manual provides important information for the installation and trouble free maintenance of the machine.
Therefore It must be carefully stored for future reference and the instructions contained in it must be thoroughly read.
The machine must only be used for its intended purpose, i.e. for making coffee.
Any other use is incorrect and therefore dangerous.
After removing the machine from its package, make sure that it has not been damaged during transport and that all of
the parts have been included as stated on the order.
If in doubt, do not use it and immediately contact an after-sales service center or the sales outlet.
1
Advertisement
Table of Contents
Related Manuals for 969.Coffee Artika
Summary of Contents for 969.Coffee Artika
- Page 1 Artika Introduction The espresso makers described in this manual were specifically designed to fit in rooms with any type of décor and were created for users who have special requirements as regards space. They ensure an excellent coffee yield thanks to one of the most tested dispenser units, which permits excellent quality from the first to the last coffee, thanks to its thermosyphonic circulation.
- Page 2 The packaging must not be left within children’s reach since it is a potential source of danger. Dispose of it according to all applicable regulations in force. Before connecting the machine, make sure that the mains voltage is the same as the one shown on the rating plate. The machine must be installed, tested, and serviced in compliance with all applicable regulations in force by qualified personnel who fulfill the legal requirements.
- Page 3 ARTIKA GROUPS WIDTH DEPTH HEIGHT WEIGHT kg. POWER SUPPLY V HEATING ELEMENT W 4500 BOILER lt. Hydraulic circuit Electrical features...
- Page 4 The pump is controlled by a relay with a 10-Amp contact, whereas the solenoid valve is controlled by a relay with an 8 amp contact. The high/voltage connections of the volumetric meters and the level probe are made with 6.38mm faston connectors, whereas the connections to the push button panels and the serial transmission are made with model II AMP connectors.
- Page 5 Avoid the use of adapters, multiple sockets, and/or extension cords. If necessary, use only materials which comply with the safety regulations in force. If the power cord deteriorates, have it replaced by an authorized aftersales service center. Be careful not to block the air vents. Electrical connections connect the cable supplied together with the espresso maker to the mains, after fitting a safety circuit breaker with suitable protection fuses in between.
- Page 6 Hot water dispensing (to prepare hot drinks such as tea, chamomile, etc.) Check the level indicator to make sure there is enough water in the boiler. In case there is not, contact the after-sales service center. Make sure the water is hot, checking that the boiler pressure gauge indicates a pressure of approximately 0.8 to 1 bar Place the empty container under the hot water wand and press the button on the touch button panel.
- Page 7 If the filter is clogged or deteriorated, contact the after-sales service center for its replacement. The group shower heads and wands must also be cleaned by using a sponge and hot water. Troubleshooting If all the LED flash at the same time, the control unit is signaling a problem. The most important cases include: •...
