Midland 4001 Alignment Instructions

8. ALIGNMENT INSTRUCTIONS
Warning : Any repairs or adjustment should be made under the supervision of a
qualified radio-telephone technician.

8.1.VCO locking voltage

Set unit chanel 40
-
- TX no mod
Check voltage at TP1
-
Adjust L501 until voltage at TP1 to be equal to 4 volt
-

8.2.TX frequency

Set unit chanel 20
-
TX no mod
-
- Measure frequency
Adjust CT201 until frequency to be equal to 27.205MHz
-
If can not measure frequency skip to adjust TX power and return to this
-
methode next time

8.3.TX power

Set unit chanel 20 mic gain maximum
-
Adjust L502,L10,L11 and L6 downward for minimum
-
- Adjust L11 upward 1 round ( 360° )
TX with mod 1.25KHz up 20 dB
-
See signal at oscilloscope
-
Adjust L10 upward for maximum
-
Adjust L11 again for maximum
-
- TX no mod
Adjust C607 for maximum power
-
Adjust RV102 until TX power to be equal to 3.8 volt
-

8.4.TX AM modulation

Set unit chanel 20 mic gain maximum
-
- TX with mod 1KHz up 20 dB
Measure % modulation
-
Adjust RV 201 for modulation 90%
-
TX with mod 1KHz down20 dB
-
Measure % modulation
-
- Adjust level at CR oscilator until % modulation to be equal to 30%
TX with mod 1KHz up 20 dB
-
If % modulation not equal with 90% back to adjust RV 201 again
-

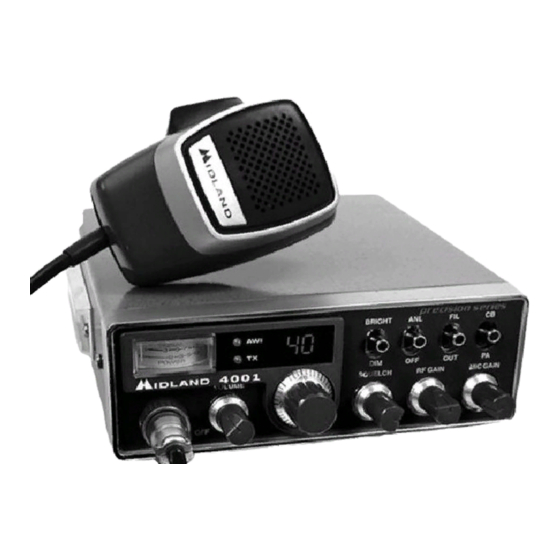

MIDLAND 4001
