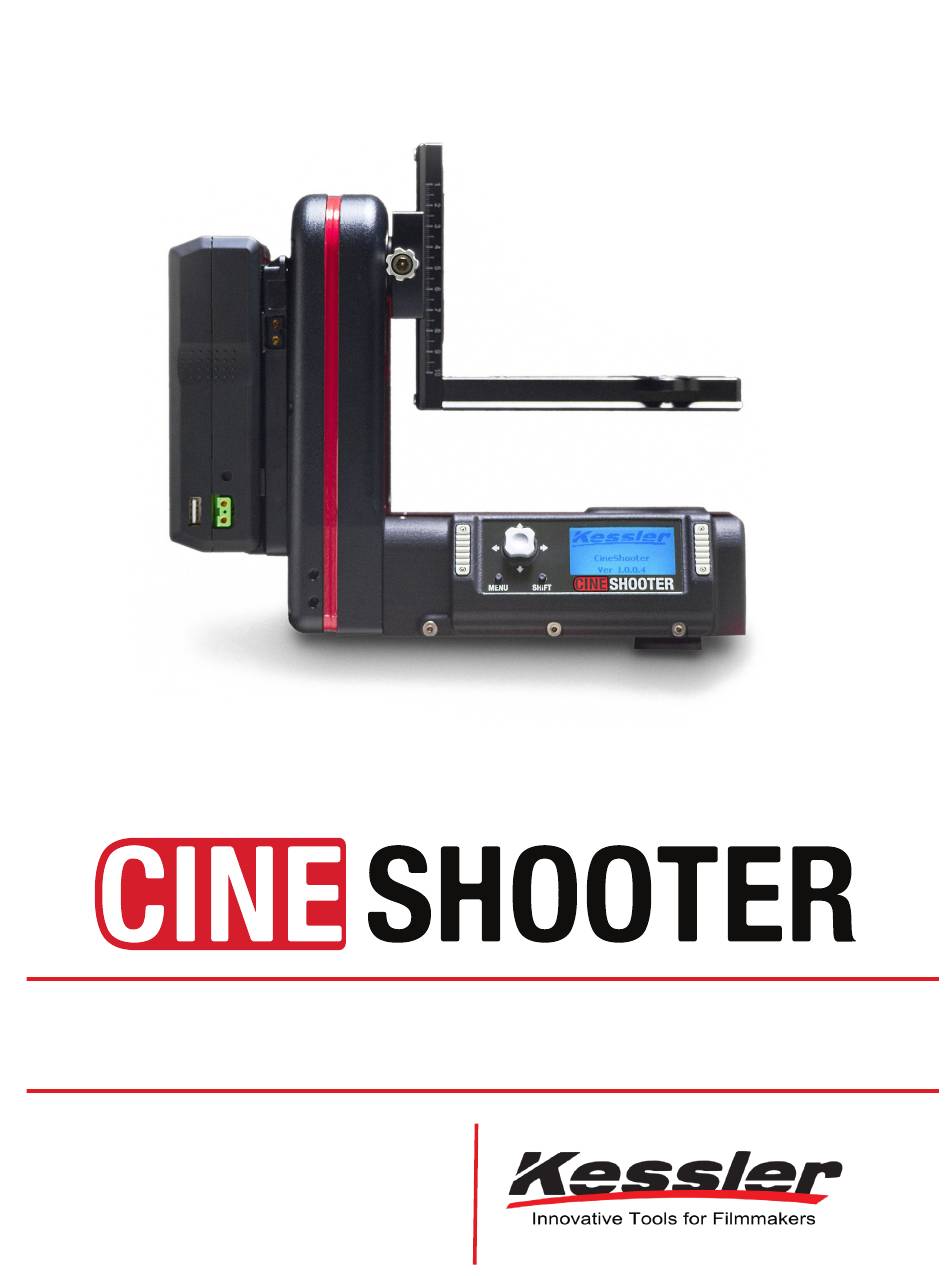

- Page 1 COMPLETE USER MANUAL http://kesslercrane.com/support support@kesslercrane.com 574-400-2251...
-
Page 2: Table Of Contents
....................... . . • Mounting your CineShooter Pan & Tilt Head . -
Page 3: Features And Functions
This system is regularly maintained with firmware updates. It is recommended that users verify they are running the most current version of firmware before operating the CineShooter system for the first time. Firmware can be downloaded and installed wirelessly via the CineShooter Remote mobile companion app, or it can be downloaded manually at kesslercrane.com/support and installed via the USB-C port located on the end of the Pan & Tilt Head. -
Page 4: On-Board Controls
USB-C Port The USB-C Port is for hardwiring the system for use through Kessler kOS software, as well as hardwire option for firmware updates (firmware can also be wirelessly updated via the mobile app as well). -
Page 5: Hardware Setup
(A slider, a tripod, or some other camera mounting base). The mounting foot of the CineShooter is an Arca-Swiss base that works with our Kwik Release Receiver, as well as a variety of other third party Arca-based mounts. -
Page 6: Balancing Your Camera
Otherwise, adjust your build by shifting accessories and adding counter weight to help offset the weight. Repeat the test on the CineShooter until the camera feels relatively balanced. - Page 7 Note the new measured balance point. Using that reference point, center your camera on the L-Bracket or H-Frame of the CineShooter. SIMPLE FULCRUM TEST A more rudimentary method is the use of...
-
Page 8: Finding Nodal Center
Nodal Center is achieved when the sensor is perfecty aligned with both the pan and tilt axes on your system (indicated with the cross marker on the top of the base of the CineShooter Head, and on the Tilt Axis knob. -
Page 9: Mounting To The L-Bracket Or H-Frame
HARDWARE SETUP CINESHOOTER SYSTEM MOUNTING TO THE L-BRACKET OR H-FRAME There are several ways to mount your camera to the CineShooter Pan & Tilt Head. We suggest first removing the L-Bracket or H-Frame and mounting your camera to the bracket first before installing onto the head. We also recommend powering your CineShooter Head before mounting your camera and L-Bracket or H-Frame into the Arca-Swiss receiver plate(s) built into the CineShooter. -
Page 10: Mounting In Roll Mode
USER GUIDE HARDWARE SETUP CINESHOOTER SYSTEM MOUNTING IN “ROLL MODE” For Roll Mode operation, you may: • Mount your camera using a Kwik Release Receiver oriented 90 degrees from standard mode mounted using the horizontal slide slot available on the standard L-Bracket using the supplied ¼”-20 or... -
Page 11: Accessory Installation
The Heavy Duty Support Module is designed to increase the max weight capacity from 15 lbs. to 25 lbs. Screw in threaded rods into port end of CineShooter. Screw in end plate to the newly installed rods using the provided screws and 5/32 allen wrench. -
Page 12: Smart Handle Module
SMART HANDLE MODULE The Smart Handle Module is intended to function as both a grab point for carrying and adjusting your CIneShooter Pan & Tilt Head, as well as an interface to enable and interract with the FreeMotion feature. INSTALLATION... -
Page 13: Adding An Additional Motor Axis
FIZ Motor SLIDE MOTOR AXIS The most common pairing with the CineShooter Pan & Tilt Head, the Slide Motor axis allows for programmed slider motion that provides push-ins, pull-outs, pedastals up and down (when slider is mounted vertically), angled moves, parallel slides, and parallax movements. -
Page 14: Pulley Installation
USER GUIDE ACCESSORY INSTALLATION CINESHOOTER SYSTEM PULLEY INSTALLATION To adjust pulley ratios, begin by removing the pulley installed on the Slide motor and pull outward away from the motor. To install the pulley, simply push the pulley onto the motor shaft while aligning the holes. Be sure to hold the belt in place while installing. - Page 15 USER GUIDE ACCESSORY INSTALLATION CINESHOOTER SYSTEM Choose between the following pulley combinations: Fast, Normal and Slow. FAST (LOW TORQUE) *This combination is only compatible with CineSlider and Stealth sliders. NORMAL *This combination requires the pulley from the Motor Mount Kit to be used on the slider.
- Page 16 CINESHOOTER SYSTEM Place screw cap back on slider pulley point. Push down pulley if needed and tighten. Avoid over-tightening. Connect CAT5 cable from Slider motor to the SLIDE port on the CineShooter Pan & Tilt Head. support.kesslercrane.com Page 15 of 33...
-
Page 17: Axes
Connect CAT5 cable to the Pan/Tilt Motor and to either of the AUX ports on the CineShooter. Connect CAT5 cable from the Tilt axis to either of the AUX ports on the CineShooter. -
Page 18: Fiz Motor Axis
CineShooter CONNECTING AN INTERVALOMETER For time lapse or stop motion, connect a Camera Control Cable to the “Out” port on the CineShooter Pan & Tilt Head to the proper port on your camera. support.kesslercrane.com Page 17 of 33... -
Page 19: Using Kos
Enter button, your CineShooter will reboot and will now say “WiFi Enabled”. On your computer or tablet you will now see a WiFi network named “CineShooter”. Connect to that wireless network. Once connected to the “CineShooter” network, open kOS and it will automatically connect to your CineShooter via WiFi. -
Page 20: Cineshooter Remote App
Open your phone settings, go to Bluetooth, and select “DUALSHOCK 4 Wireless Controller” from the list of new devices. Once connected, open the CineShooter Remote app and click the Controller icon to pair. For further instructions, support, and troubleshooting, see CineShooter Remote manual. -
Page 21: Bridge Mode
*Although these cables are similar to other RJ-11 cables, DO NOT use any other cable for bridging CineShooter to other controllers/modules. Doing so may put your system at risk for damage. -
Page 22: Shooting Modes
USER GUIDE SETTING UP A MOVE CINESHOOTER SYSTEM SHOOTING MODES After powering up the system you will be presented with four options: • PROGRAM MOVE • MANUAL MOVE • TURNTABLE • SETTINGS PROGRAM MOVE Select PROGRAM MOVE to set the 1st (begin) and 2nd (end) key frames for the move. -
Page 23: Turntable
USER GUIDE SETTING UP A MOVE CINESHOOTER SYSTEM TURNTABLE Select TURNTABLE for continuous panning. The speed can be adjusted by pressing Up or Down on the joystick at any time. With the proper AUX axis selected, Press Left or Right on the joystick to start/stop panning. -
Page 24: Loop/Scrub
USER GUIDE SETTING UP A MOVE CINESHOOTER SYSTEM CAMERA MOVEMENT BEHAVIOR Once a camera move has been programmed (either a PROGRAM MOVE, MANUAL MOVE, TURNTABLE MOVE) choose one of the following shooting modes: • LOOP/SCRUB • TIME LAPSE • STOP MOTION... -
Page 25: Time Lapse
USER GUIDE SETTING UP A MOVE CINESHOOTER SYSTEM TIME LAPSE Chose your mode— SHOOT/MOVE/SHOOT or CONTINUOUS: SHOOT/MOVE/SHOOT* – Camera will only fire when not moving. That is, the camera will • fire, move to next position, stop and fire. CONTINUOUS** –... -
Page 26: Stop Motion
USER GUIDE SETTING UP A MOVE CINESHOOTER SYSTEM STOP MOTION Set values for & # PHOTOS RAMP: • # PHOTOS - Indicates the number of photographs taken during the entirety of the move • RAMP – Percentage value indicates the change in speed of the movement over the entire move. -
Page 27: Updating Firmware
WIRELESS UPDATE VIA CINESHOOTER REMOTE APP Power up your CineShooter either using the provided 12v 5A Barrel AC power supply, or with a V-Mount/AB “Gold” Mount battery, or LEMO-based power supply. NOTE: When powering your CineShooter, make sure the batteries are charged so the unit can remain powered on through the completion of the installation process. -
Page 28: Manual Update Via Kessler Support Page
USB-C to USB 3.0 adapter in order to connect to your machine. Power up your CineShooter either using the provided 12v 5A Barrel AC power supply, or with a V-Mount/AB “Gold” Mount battery, or LEMO-based power supply. -
Page 29: Getting Creative
CineShooter system to capture unique shots. Once you begin to think of your CineShooter and its external motor axes as something akin to a giant robotic Erector Set, the possibilities to configure, stack, and repurpose each component makes this an even more powerful system. -
Page 30: Arc Mode
USER GUIDE GETTING CREATIVE CINESHOOTER SYSTEM ARC MODE This mode requires the camera to be mounted to the outside of the L-Bracket and oriented perpendicular to the head. Note: This requires you to flip the horizontal plate using a 3/16” Allen Wrench. This type of mode produces a “snorricam” type of effect or an interesting transition effect to “whip roll”... -
Page 31: Troubleshooting
- Make sure CAT-5 cabling is properly installed between the desired motor and designated CAT-5 port on your CineShooter, then change your motor selection by double click SHIFT to select between the SLIDE and AUX 1 and AUX 2 external axes. - Page 32 - Check that the system has power being provided to it before mounting your camera. - Ensure that the camera is at or under the rated weight capacity (15 lbs. for the base CineShooter, or 25 lbs. if using the Heavy Duty Support Module.
-
Page 33: Term Reference Guide
This setting is typically adjusted only for the Pan Axis. Lash Compensation is a factory setting and should only be adjusted after consulting a representatitve from the Kessler Support Team. When changing these settings, please take note of the factory setting to be able to reset it. The setting for all other motors should be set to zero by default. -
Page 34: Contact & Support
We always love to see both behind the scenes photos and video, as well as your final proj- ects shot using Kessler equipment. If you have a project that was shot with the CineShoot- er system, feel free to share your work with us over social media and tag us in it. We might just share or feature your work on our page, or in future video content for Kessler.
