CineDrive Turntable Conversion Kit Installation Guide
®

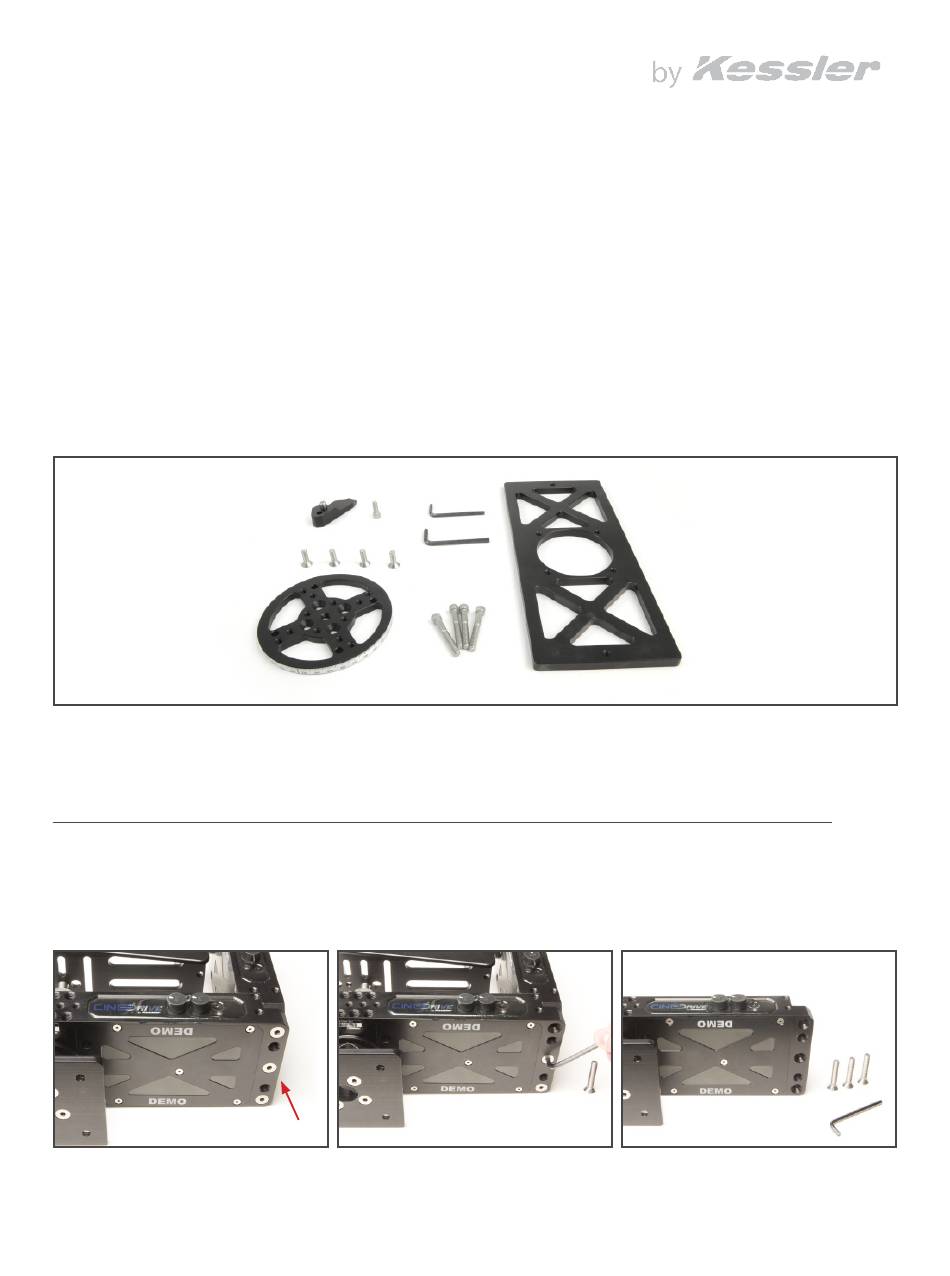

What's Included
a.
(1) Turntable Degree Wheel with Sticker
b.
(4) Turntable Plate Mounting Screws ¼"-20 x .75" Socket Countersunk Screw
c.
(1) Degree Indicator with 5/16" x 3/4" Stainless Dowel Pin
d.
(1) Degree Indicator Mounting Screw ¼"-20 x .75" SHCS
e.
(1) Turntable Base
f.
(4) Turntable Base/Hub Mounting Screws 1/4"-20 x 1.75" SHCS
g.
(1) 5/32" Allen Wrench
h.
(1) 3/16" Allen Wrench
a.
Pan Brick Removal and Preparation for Turntable Kit Installation:
Step 1
Remove the three 1/4"-20x.75 flat head allen screws joining the pan brick and tilt bricks
using a 5/32" hex allen wrench. Retain screws for possible future use.
d.
c.
g.
b.
h.
f.
e.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kessler CineDrive Turntable Conversion Kit
Summary of Contents for Kessler CineDrive Turntable Conversion Kit
- Page 1 CineDrive Turntable Conversion Kit Installation Guide ® What’s Included (1) Turntable Degree Wheel with Sticker (4) Turntable Plate Mounting Screws ¼”-20 x .75” Socket Countersunk Screw (1) Degree Indicator with 5/16” x 3/4” Stainless Dowel Pin (1) Degree Indicator Mounting Screw ¼”-20 x .75” SHCS (1) Turntable Base (4) Turntable Base/Hub Mounting Screws 1/4”-20 x 1.75”...
- Page 2 Step 2 Remove the four Turntable Plate Mounting Screws holding the pan brick mounting plate to the pan hub. Retain screws and mounting plate for possible future use. CineDrive Turntable Kit Installation: ® Step 1 Install supplied Turntable Base to the pan brick as shown using four Turntable Base/Hub Mounting Screws.
- Page 3 Step 3 Install supplied Turntable Degree Indicator to pan brick in the location shown using one Degree Indicator Mounting Screw. Optional Outrigger Feet Installation: Step 1 Install any optional Outrigger Feet by screwing to ends of turntable mounting base. Optional Corian® Table Top Installation: Step 2 Install optional accessory Corian®...
- Page 4 Optional Mounting Hub Installation: Step 1 Remove the top Degree Wheel from the Turntable with the supplied 5/32” allen wrench Step 2 (If Turntable Base is installed, remove before installing Mounting Hub.) Line up the Mounting Hub with the bottom of the Turntable brick. Use the supplied Turntable Base/Hub Mounting Screws and 3/16”...
