oCam-1CGN-U-T User Manual

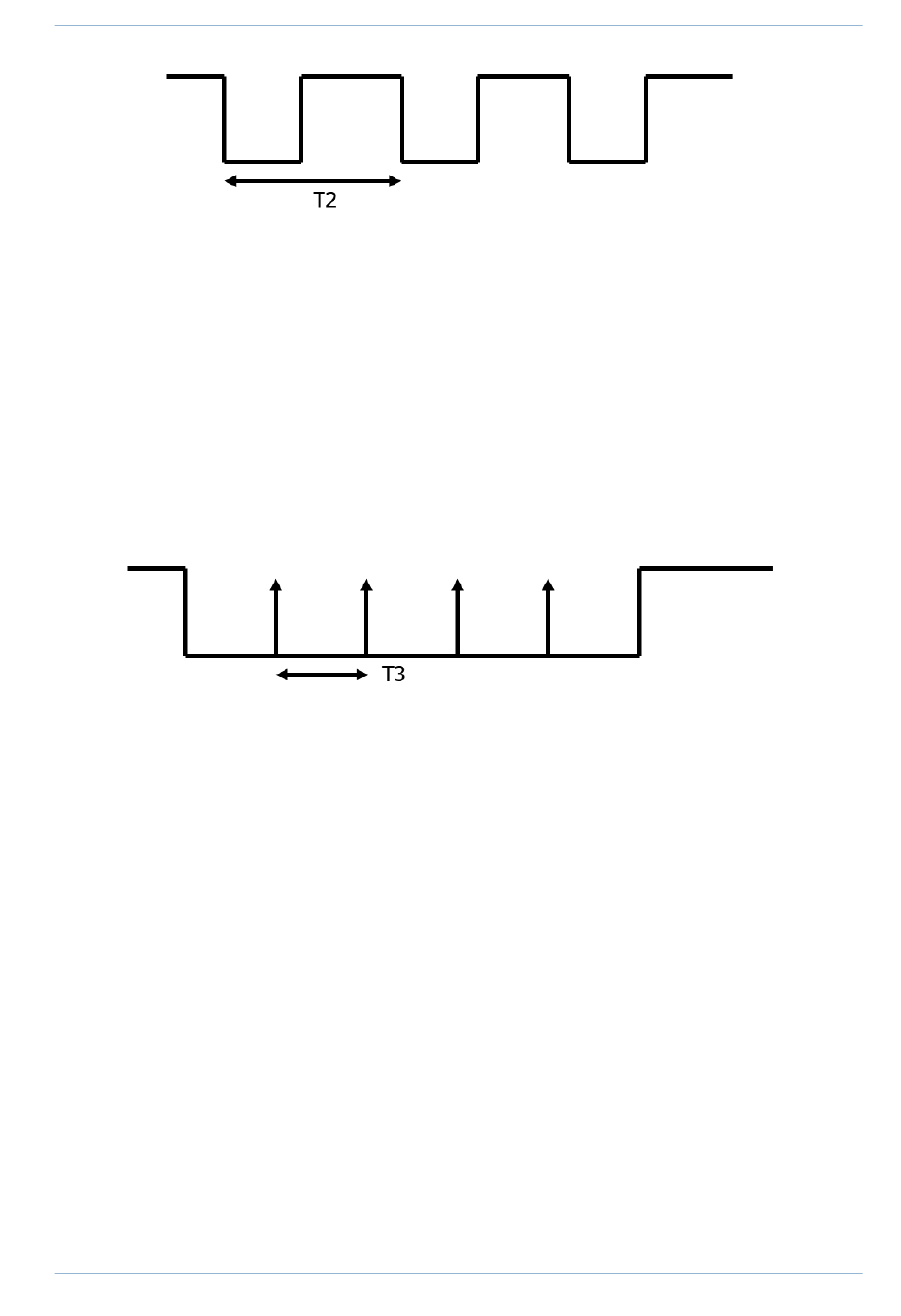

Figure 9. Multi shot mode
Continuous Mode
With this mode, the camera acquires images continuously at the interval set as camera speed.
For example, in the following figure, the camera starts to acquire the image after the trigger
signal goes low and acquires the images at the interval of T3 set as the camera fps. When the
trigger signal goes high, the camera stops to acquire the images.
Figure 10. Continuous mode
