Quick start
This document refers to the following products:
907 900
NETSILON 7 AC
907 901
NETSILON 7 DC
907 902
NETSILON 7 AC+DC
907 903
NETSILON 7 AC+AC
This document refers to the following products:
907 910
NETSILON 9 AC
907 911
NETSILON 9 DC
907 912
NETSILON 9 AC+DC
907 913
NETSILON 9 AC+AC
This document refers to the following products:
907 915
NETSILON 11 AC
907 916
NETSILON 11 DC
907 917
NETSILON 11 AC+DC
907 918
NETSILON 11 AC+AC
www.bodet-time.com
On receipt, ensure that the product has not been damaged during transportation and report any concerns to the carrier.
TIME SERVER
NETSILON 7 / 9 / 11
BODET SA
1 rue du Général de Gaulle
49340 Trementines, France
Tel. support : 02.41.29.06.00
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bodet NETSILON 7 AC
Summary of Contents for Bodet NETSILON 7 AC
- Page 1 TIME SERVER NETSILON 7 / 9 / 11 Quick start This document refers to the following products: 907 900 NETSILON 7 AC 907 901 NETSILON 7 DC 907 902 NETSILON 7 AC+DC 907 903 NETSILON 7 AC+AC This document refers to the following products:...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION AND PROTECTIVE MEASURES 1. GENERAL POINTS 1.1 Introduction 1.2 General specifications 1.2.1. Mechanical characteristics 1.2.2. Electrical characteristics 1.3 Netsilon 7 presentation 1.3.1. Front panel 1.3.2. Rear panel 1.4 Netsilon 9 / Nestilon 11 presentation 1.4.1. Front panel 1.4.2. Rear panel 2. -
Page 3: Safety Information And Protective Measures
SAFETY INFORMATION AND PROTECTIVE MEASURES The following symbols and pictograms are used to illustrate a source of danger during installation, use, and maintenance of this device. Symbol Description IEC60417 - 1641 Operating instructions IEC60417 - 5002 Positioning of cell IEC60417 - 5017 Earth, ground IEC60417 - 5018 Functional earthing... -
Page 4: General Points
1. GENERAL POINTS Thank you for choosing the BODET Netsilon time server. This product has been carefully designed for your satisfaction according to the rules of our ISO9001 and ISO14001 quality system. We recommend that you read this manual carefully before using the product for the first time. -
Page 5: Netsilon 7 Presentation

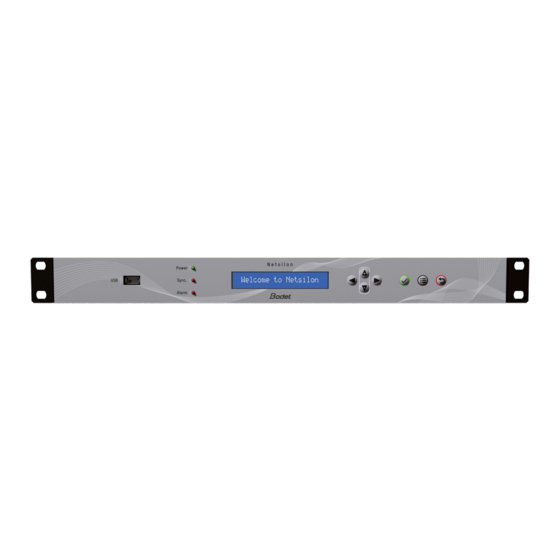

1.3 Netsilon 7 presentation 1.3.1. Front panel The Netsilon front panel contains: > a USB port > three status LEDs for power supply, synchronisation and alarms (Power, Sync. and Alarm) See Chapter 8.1 Status of LEDs on front panel, (User Manual) >... - Page 6 Common/Normally-Closed/Normally-Open relay contact output. If contact Normally-Open: no alarms / If contact Normally-Closed: alarms. DC IN AC IN Terminal for GPS antenna: DC IN Green White AC IN PS - Yellow Brown PS + Alarms input: interfaces with the dry contact of the client equipment. DC IN AC IN INPUT...
-
Page 7: Netsilon 9 / Nestilon 11 Presentation
1.4 Netsilon 9 / Nestilon 11 presentation 1.4.1. Front panel The Netsilon front panel contains: > a USB port > three status LEDs for power supply, synchronisation and alarms (Power, Sync. and Alarm) See Chapter 8.1 Status of LEDs on front panel, (User Manual) >... - Page 8 Common/Normally-Closed/Normally-Open relay contact output. If contact Normally-Open: no alarms / If contact Normally-Closed: alarms. SLOT A SLOT B SLOT C SLOT D GNSS ETH0 ANTENNA ALARM OUT ALARM IN 10 MHz MADE IN FRANCE Alarms input: interfaces with the dry contact of the client equipment. SLOT A SLOT B SLOT C...
-
Page 9: Installation
This equipment is not suitable for use in places likely to receive children. 2.2.2. Opening the equipment There are no user-repairable parts inside this equipment. Please contact BODET customer support if the equipment needs to be repaired. Do not open the product except when adding or replacing expansion cards and changing battery : >... -
Page 10: Electrical Installation
1) Use a shielded CAT.5E or CAT.6 cable Ethernet cable (RJ45) 2) Connect the Ethernet network cable to the RJ45 connector on the Netsilon rear panel. The product is commissioned by activating the ON/OFF switch on the rear panel of the device. The Bodet company strongly recommends connecting and using Netsilon exclusively on a private network (VLAN). 2.4.4. Alarm relay circuits For the relay circuits, provide protection by means of a fused disconnect switch or circuit breaker of 1A maximum. -
Page 11: Commissioning
3. COMMISSIONING Netsilon configuration is performed exclusively on the web server. In order to be able to access the web server it is necessary to configure the ETH0 port via the front panel keypad and the LCD screen. TIP: i n order not to disrupt Netsilon synchronisation with the other products present on the network, it is important to maintain identification of the time server. -
Page 12: Choosing The Lcd Screen Display Language
3.2 Choosing the LCD screen display language The network settings for configuration of the ETH0 port (assignment of an IP address) can be read or configured via the Netsilon control panel. It is first necessary to select the product’s display language: 10:54.32 Mon 19 SEP 20__ System... -
Page 13: Configuration Without A Dhcp Server
3.4 Configuration without a DHCP server Without automatic assignment of an IP address by a DHCP server, it is necessary to manually assign a fixed IP address. To manually configure the Netsilon network settings, enter the following three parameters: > IP address assignment > This is a unique address assigned to Netsilon by the network administrator. Ensure that the chosen address is available. -
Page 14: Web Server Menus
4. WEB SERVER MENUS To access the Netsilon web server, follow these steps: 1) Note the Netsilon IP address. 2) Open a web browser page. 3) Enter the IP address into the browser’s address bar. 4) Enter the username and default password to access the web server. For info: Username: bodetadmin >... -
Page 15: Console Configuration - Limited Configuration
6. CONSOLE CONFIGURATION - LIMITED CONFIGURATION > To access the Netsilon web server, follow these steps (Netsilon, via its COM serial port, must be connected to the PC). T he physical connection between the PC and Netsilon must be a direct link via an RS232 (DB9) male/ female serial cable. 1) Download a program enabling you to log into Netsilon (e.g.: PuTTY). 2) Open the program (PuTTY). -
Page 16: Support
7. SUPPORT > To request technical assistance for this equipment : http://www.bodet-time.com/assistance-clientele.html Telephone support is available from Monday to Friday from 8 am to 12 pm and from 1:30 pm to 5 pm. > To speed up the diagnosis of your Netsilon, perform a system backup and note the Netsilon MAC address.
