Melec Nox Series Product Information

V4
Floodlight Range
10-50W with Plug
Product information

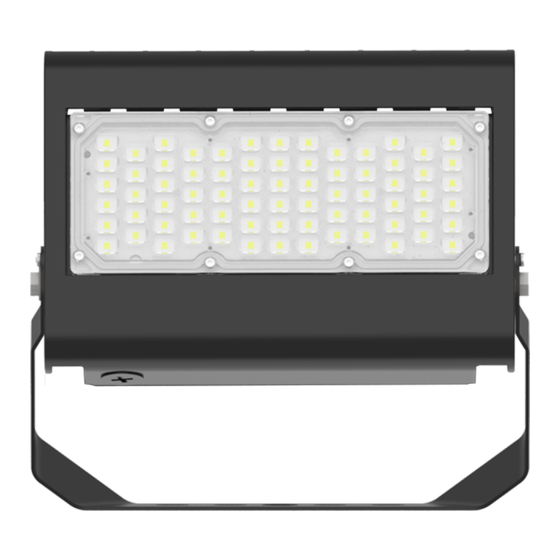

The NOX range 10-50W floodlight is our latest development of the iconic
LED Floodlight range. Featuring a plug option & ultra efficient offset bracket
that installers demand. Super slim body and illumination specifications that lead
in the floodlight category. NOX V4 is the brighter choice by far. Supported by a
M-Elec 7 year warranty.
OUR FULL RANGE Available in Warm White and White Models with plugs
NOX MINI, 10W NOX1, 15W
TECHNICAL INFORMATION
ML-NOXMINI-V4-WW
ML-NOXMINI-V4-W
Total Power: 10W*
Lumen Output: WW 1203lm
W 1206lm
Colour Temp: WW 3000K
W 5700K
IP Rating: IP65
Impact Rating: IK10
Efficacy: WW 120lm/W
W 120lm/W
CRI: 70+
Beam Angle:
120° × 90
Temp Range:
-20° to +40°
Dimmable: No
Power Supply: 100-277V AC Towin
Driver
Average Life: 50,000 hrs**
Max Current 0.2A
Draw:
Power Factor >0.9
Dimensions: 148x128x45mm
W × H × D:
Weight: 0.56kg
Construction: ADC12 Aluminium heat sink
with Akzo Nobel powder
coating & PC lens
Kit Includes: 1 × LED Floodlight
1 ×1m flex + AU plug
1 × User Manual
*Total power consumed including driver
** Average life is calculated on expected average lifespan
NOX2, 20W
ML-NOX1-V4-WW ML-NOX2-V4-WW
ML-NOX1-V4-W ML-NOX2-V4-W
15W* 20W*
WW 1823lm WW 2572lm
W 1910lm W 2645lm
WW 3000K WW 3000K
W 5700K W 5700K
IP65 IP65
IK10 IK10
WW 122lm/W WW 121lm/W
W 127lm/W W 125lm/W
70+ 70+
120° × 90 120° × 90
-20° to +40° -20° to +40°
No
Yes (0-10V min 30%)
100-277V AC Towin
100-277V AC Towin
Driver
Dimmable Driver
50,000 hrs** 50,000 hrs**
0.2A 0.37A
>0.9 >0.9
148x128x45mm 216x190x50mm
0.58kg 1.15kg
ADC12 Aluminium heat sink ADC12 Aluminium heat sink
with Akzo Nobel powder with Akzo Nobel powder
coating & PC lens coating & PC lens
1 × LED Floodlight 1 × LED Floodlight
1 ×1m flex + AU plug 1 ×1m flex + AU plug
1 × User Manual 1 × User Manual
NOX3, 30W NOX5, 50W
ML-NOX3-V4-WW
ML-NOX3-V4-W
30W*
WW 4102lm
W 4110lm
WW 3000K
W 5700K
IP65
IK10
WW 135lm/W
W 136lm/W
70+
120° × 90
-20° to +40°
Yes (0-10V min 30%)
100-277V AC Towin
Dimmable Driver
50,000 hrs**
0.37A
>0.9
216x190x50mm
1.16kg
ADC12 Aluminium heat sink
with Akzo Nobel powder
coating & PC lens
1 × LED Floodlight
1 ×1m flex + AU plug
1 × User Manual
ML-NOX5-V4-WW
ML-NOX5-V4-W
50W*
WW 6400lm
W 6484lm
WW 3000K
W 5300K
IP65
IK10
WW 131lm/W
W 133lm/W
70+
120° × 90
-20° to +40°
Yes (0-10V min 30%)
100-277V AC Towin
Dimmable Driver
50,000 hrs**
0.72A
>0.9
247x238x52mm
1.63kg
ADC12 Aluminium heat sink
with Akzo Nobel powder
coating & PC lens
1 × LED Floodlight
1m flex + AU plug
1 × User Manual
