Melec NOX Series Quick Start Manual

Product information

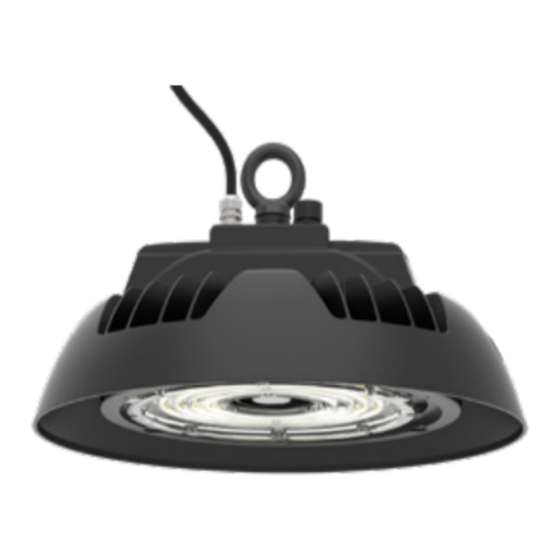

The legend of the NOX range has expanded into our new Highbays with enhanced durability
& rapid heat dissipation. The power selectable feature (50-150W | 100-230W | 150-300W) &
optional quick fit microwave sensor ensures a quick and easy install every time.
OUR FULL RANGE
ML-NOX-HB50-150-A

TECHNICAL INFORMATION

ML-NOX-HB50-150-A
Total Power: 50 to 150W*
Lumen Output: Up to 21,000lm
Colour Temp:
IP Rating:
Efficacy: Up to 140lm/W
CRI:
Frequency
Beam Angle:
Temp Range:
Dimmable:
Power Supply:
Average Life:
Power Factor:
IK Rating
Max Current Draw: 0.7A @ 240V
Dimensions: Ø 328x201mm (H)
Weight: 3.3kg
Warranty: 7 Years
Kit Includes: 1 x LED Highbay
1 x User Manual
1x1m Flex Plug
Accessories Sold Separately: Microwave Sensor: ML-SENSOR and remote: ML-REMOTE (for microwave sensor***)
Suitable for all models
Bracket Mount: ML-HB-BR,Refractor: ML-HB-REF, Refractor Kit: ML-HB-REF-D
*Total power consumed including driver
** Average life is calculated on expected average lifespan
*** Microwave sensor available as additional accessory
T. 1300 222 445 | www.melec.com.au
HIGHBAY
ML-NOX-HB100-230-A
ML-NOX-HB100-230-A
100 to 230W*
Up to 32,200lm
Up to 140lm/W
120-277V AC Integrated Driver
1.0A @ 240V
Ø 371x206mm (H)
4.6kg
7 Years
1 x LED Highbay
1 x User Manual
1x1m Flex Plug
For further information about our Warranties please go to: melec.com.au/legal/warranties
AVAILABLE TO ORDER
ML-NOXHB150-300-A
ML-NOXHB150-300-A
150 to 300W*
Up to 39,600lm
W 5000K
IP65
Up to 132lm/W
80+
50/60 Hz
90°
-40° to +45°
No
50,000 hrs**
>0.9
IK08
1.3A @ 240V
Ø 413x228mm (H)
5.4kg
7 Years
1 x LED Highbay
1 x User Manual
1x1m Flex Plug
