BIKE
USER
MAN
UAL
READ
BEFORE
YOUR
FIRST
RIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6G-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Greyp 6G-01

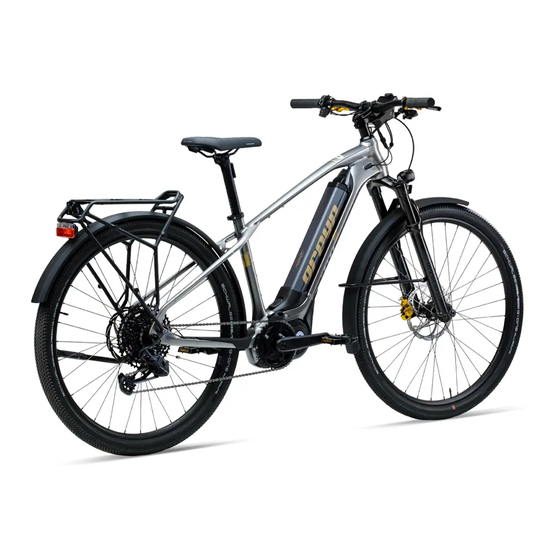

Summary of Contents for Greyp 6G-01

  • Page 1 BIKE USER READ BEFORE YOUR FIRST RIDE...

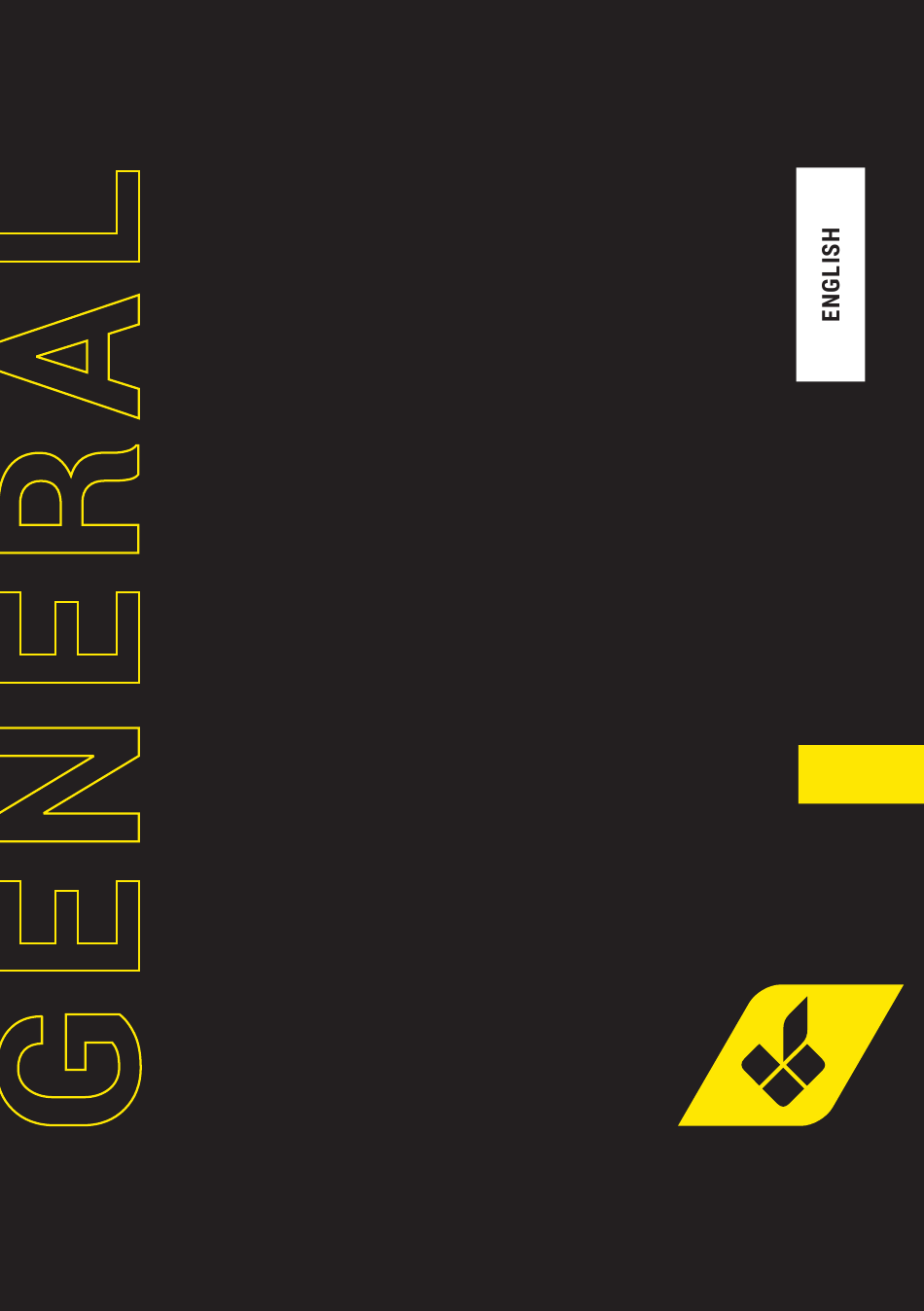

  • Page 2 GENERAL MANUAL ENGLISH...

  • Page 3: Table Of Contents

    Contents INTRODUCTION BIKE MAINTENANCE & RANGE Greyp bikes disclaimer Maintenance General warning Range General information CLEANING THE BIKE Safety information Chain General information Fork about assembly Shock GENERAL NOTES ABOUT RIDING Lubrication Luggage carrier and kickstand (if equipped) WARRANTY Riding tips...

  • Page 4: Introduction

    Greyp Bikes Disclaimer Any modifications of the bike are strictly forbidden and Greyp Bikes d.o.o. will bear no liability whatsoever for the consequences of such modifications. Greyp Bikes d.o.o. does not grant, explicitly or implicitly, to any party any patent rights, licenses or any other IP rights, whether with regard to such information itself or to anything described by such information.

  • Page 5: General Warning

    This User Manual is not intended as a service and repair manual. Greyp bikes are classified as a pedelec. Greyp bike is a vehicle where the rider’s pedalling is assisted by an electric motor with 5 assist and torque levels, which gives you a range of power assistance.

  • Page 6: Safety Information

    Z reflector) for main rear light. WARNING — Greyp lights (4 white LEDs on display unit - CIM and 4 red LEDs on rear camera - BUTS) are primarily designed as auxiliary lights and you should take care that you use lights that are in accordance with the provision in force in the country of use.

  • Page 7: General Information About Assembly

    This User Manual is not intended as a comprehensive use, service, repair or maintenance guide. Please see your authorized Greyp Bikes partner for all service, repairs or maintenance. WARNING — Do not alter or modify any parts of your Greyp bike. Do not install incompatible components or hardware.

  • Page 8: General Notes About Riding

    If you stop pedalling, the motor will stop providing any assistance. The Greyp bike can also be ridden as a normal bicycle without motor assistance by switching the vehicle to the OFF mode.

  • Page 9: Luggage Carrier And Kickstand (If Equipped)

    Load the luggage carrier evenly. Make sure that the luggage is adequately secured to prevent it falling off. Some Greyp bikes are equipped with a kickstand. A kickstand is a device for parking the bike in an upright position after use.

  • Page 10: Riding Tips

    Riding tips Below are some riding tips, which may also reduce component wear and increase battery range. » Pay attention to your speed when going into a corner and be sure to stop pedalling well before entering the corner. Otherwise you may have too much speed as you enter the corner;...

  • Page 11: Pre-Ride Inspection

    Riding tips for children Greyp bikes are only designed and tested for use by one person at a time. Greyp bikes are not intended for children under 16 years. Do not allow children under 16 years old to drive a Greyp bike.

  • Page 12: Brakes - Basics

    Brakes – basics WARNING — Braking devices on Greyp bikes are a high-performance product, offering a stopping power greater than on regular bikes. As a result, less effort is required to lock up the wheel when braking.

  • Page 13: Gear System

    The brake rotors must be installed on wheels that are suitable for this type of brake system. A wheel with an insufficient spoke section or with radial spoke lacing can break under normal use of the braking system and cause serious injury, accident or death. Check with your wheel manufacturer BEFORE installation to ensure compatibility.
  • Page 14 For the maximum inflation pressure check techincal manual. WARNING — If the maximum pressure values in this manual and values on the side wall of a tire are in any way different, please refer to the ones that are marked on the tire’s sidewall or wheel (which ever is lowest).

  • Page 15: Assembling Parts Supplied Unassembled

    Assembling parts supplied unassembled CAUTION — Do not use the chainguide and chainguard at the same time. Chainguide – use only with positive foot-retention devices on the pedals CHAINGUIDE OR CHAINGUARD MOUNT NAME/DESCRIPTION TORQUE, Nm [lb ft] CHAINGUIDE ALUMINUM PART CHAINGUIDE PLASTIC PART DIN 7991 M5X18 4 [3] + low strenght threadlocker...
  • Page 16 Chainguard GENERAL NOTES ABOUT RIDING...

  • Page 17: Battery And Charger

    Greyp bike. Only use the Greyp battery with the corresponding Greyp bike. Do not use the Greyp battery with other products or any other battery with the Greyp bike, even if it fits.
  • Page 18 GREYP G6 BATTERY PACK INFORMATION COMMUNICATION: APPLICATION USING INDOOR AND OUTDOOR, -20~50 °C [-4~122°F] ENVIRONMENT: COOLING: NATURAL CONVECTION CHARGING BETWEEN 0-40˙C [32~104˙F] PROTECTION TYPE: FUSE/ CELL CHRG TEMP, DISCHRG TEMP / CELL VOLTAGE PROTECTION RATING : 40 A/ 0°C [32°F] TO 55°C [131°F] , -20°C PROTECTION: [-4°F] TO 60°C [140°F] / 2.5 TO 4.19 VOLTS...

  • Page 19: Important Battery Information

    Greyp retailer . In case of a foreign object please remove it before you connect the battery to your Greyp bike. Keep the battery away from metal objects as they can cause a short-circuit.
  • Page 20 ON THE BATTERY Charging socket ON THE BIKE Charging socket Plug the charger plug into an appropriate AC outlet (depending on the charger) using the appropriate plug/adapter for your country’s standard. Uncover the charging socket on the bike, then connect the charger to the charging socket on the bike.
  • Page 21 CAUTION — If the red LED light is flashing during the charging process, a charging error has occurred. In that case, immediately remove the charger from the socket, discontinue the use of the motor support and contact an authorized Greyp retailer. CHARGER 1...

  • Page 22: Battery Life

    Strongly reduced operating time after charging can be a sign that the battery is reaching the end of its useful life and must be replaced. Provided your Greyp bike has been used properly, approximately 80% of the battery’s original capacity should remain after 500 charging cycles or two years.

  • Page 23: Bike Maintenance & Range

    Additionally, the Greyp bike uses a power-assisted drive system, which means more distance at different rates, depending on the component. The drivetrain and brake components are especially subject to wear.
  • Page 24 The vehicle should also be maintained regularly by an authorized Greyp retailer, which means it should be cleaned and lubricated. Regularly clean and lubricate the drivetrain according to the drivetrain manufacturer’s instructions.

  • Page 25: Range

    The following parts must only be replaced with original components: » Frame » Brakes » Battery » Charger » Display unit » Motor unit » Electric wiring » Control unit » Brake hoses » Sensors Range The range on one charge greatly depends on several circumstances, such as (but not only): »...

  • Page 26: Cleaning The Bike

    Cleaning the bike Most cleaning can be done with soap, water, sponges and brushes. » Avoid using high-pressure sprayers because water can penetrate through seals ; » Avoid using corrosive soaps and strong solvents – always use cleaning products intended for an electric bicycle ; »...

  • Page 27: Shock

    Shock Wipe and clean the shock after every ride. Performing the right maintenance on your shock not only ensures years of worry-free riding, but will also keep performance optimal and enhance your experience on the bike. Each service interval indicates the maximum number of riding hours designated for each type of recommended maintenance.

  • Page 28: Warranty

    If Greyp is unable to provide a replacement and if a repair is not practical or cannot be made in a timely fashion, Greyp may elect to refund the purchase price in exchange for the return of the product.

  • Page 29: Battery

    » if the battery is below 20% of its capacity and not charged in the period longer than one month. If a battery needs to be removed for return shipment to Greyp, it is the customer’s responsibility to safely remove and send the battery to Greyp at their own cost. Greyp will reimburse the customer for its own labour &...

  • Page 30: Frame

    If a frame is found to be defective, EU shipping, parts and labour to replace the frame is paid by Greyp for the first 24 months from the original date of manufacture. The cost of repairing/replacing custom paint is never included in frame warranty at any time.

  • Page 31: Drivetrain

    » delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Greyp Bikes d.o.o. or an agreed dealer. The product or defective part has to be delivered to Greyp Bikes d.o.o. or an agreed dealer postage prepaid and carefully packed and insured. When the warranty service is completed, any repaired or replacement product or part will be returned to the customer postage prepaid.

  • Page 32: Disposal

    Ask your authorized Greyp retailer for information on how to dispose a battery or charger and any applicable take-back programs.
  • Page 33 BIKE USER READ BEFORE YOUR FIRST RIDE...
  • Page 34 TECHNICAL MANUAL – T-SERIES ENGLISH...
  • Page 35 Contents INTRODUCTION Assist level up/down Greyp bikes disclaimer Info and pair a bike screen General warning Manual software update General information Battery pack mount Out of box assembly Battery pack dismount USA specifics Appropriate spares BIKE MAINTENANCE GENERAL NOTES ABOUT RIDING...

  • Page 36: Introduction

    Greyp Bikes Disclaimer Any modifications of the bike are strictly forbidden and Greyp Bikes d.o.o. will bear no liability whatsoever for the consequences of such modifications. Greyp Bikes d.o.o. does not grant, explicitly or implicitly, to any party any patent rights, licenses or any other IP rights, whether with regard to such information itself or to anything described by such information.

  • Page 37: General Warning

    For other Greyp bikes, please check the pertinent information with your local retailer. Motor support will automatically switch off when you reach a maximum speed of: 25km/h for T5.1 and T5.2;...
  • Page 38 THE MAXIMUM PERMISSIBLE WEIGHT THE PERMISSIBLE MAXIMUM TOTAL PAYLOAD PERMISSIBLE TOTAL VEHICLE VEHICLE WEIGHT WEIGHT WEIGHT (VEHICLE + (DRIVER + LUGGAGE) DRIVER + LUGGAGE) T5.1 AND T5.1(US) 112.3 kg [248 lb] 27.7 kg [61 lb] 140 kg [309 lbs] T5.2 AND T5.2(US) 112.5 kg [248 lb] 27.5 kg [61 lb] 140 kg [309 lbs]...

  • Page 39: Out Of Box Assembly

    If you don’t have the knowledge or ability to assemble the Greyp yourself, please consult a professional mechanic. HANDLEBAR POSITIONING 1. Rotate the handlebar to its natural position (≈90° to the frame, “centered ”). 2. Using the tool (three-arm hex key number 5), lightly tighten the two bolts on the stem.
  • Page 40 FRONT WHEEL MOUNTING TOOLS 9 - 13.5Nm / 6.6 - 9.9lbft 1. Guide your wheel into the fork and guide the rotor between the brake pads. 2. Tighten the axle - line up your hub with the holes at the bottom of your fork. Check which side of the fork is threaded and push the axle in from the opposite side.
  • Page 41 HANDLEBAR MOUNT 1. Slightly loosen the 2 bolts on the stem. Tighten the top cap (headset bolt) to 6Nm using the three-arm hex key number 5. 2. Center and tighten the 2 bolts on the stem. The easiest way to get everything “centered”...

  • Page 42: Usa Specifics

    USA SPECIFICS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 43: General Notes About Riding

    For further information please contact your Greyp dealer or visit fork manufacturers website. Usually on fork crown there is level or nut adjuster which if you rotate you can make fork absorption softer or harder.
  • Page 44 MAXIMUM TIRE PRESSURE BIKE FRONT TIRE REAR TIRE T5.1 3.7 bar (54 psi) 3.7 bar (54 psi) T5.2 3.7 bar (54 psi) 3.7 bar (54 psi) CHAINGUIDE OR CHAINGUARD MOUNT NAME/DESCRIPTION TORQUE, Nm [lbf ft] CHAINGUIDE ALUMINUM PART CHAINGUIDE PLASTIC PART DIN 7991 M5X18 4 [3] + low strenght threadlocker DIN 7991 M5X12...
  • Page 45 REFLECTORS NAME/DESCRIPTION FRONT REFLECTOR 313/5K REAR REFLECTOR 314/1 REAR REFLECTOR 313/1ZB SPOKE REFLECTOR 309 (M); (US - RR-530-WUW) GENERAL NOTES ABOUT RIDING...

  • Page 46: System Functions

    System functions Bike parts BIKE PARTS NAME/DESCRIPTION DISPLAY UNIT (CIM) KICKSTAND CONTROL UNIT (CBC) LUGGAGE CARRIER REAR CAMERA (BUTS) REAR LIGHT (Busch+Müller) BATTERY FRONT LIGHT (Busch+Müller) BATTERY LOCK FRONT MUDGUARD PUSHPLATE REAR MUDGUARD MOTOR FRAME SYSTEM FUNCTIONS...

  • Page 47: Control Unit Functions

    (see bike parts 10 & 11) TURN ON/OFF FRONT LIGHT AND REAR LIGHTS LONG PRESS - auxiliary Greyp lights (on CIM and BUTS, see bike parts 1 & 3) RETRO VIDEO WORKS ONLY WITH MOBILE APP SWITCH BETWEEN SHORT PRESS IN ALL...

  • Page 48: Display Unit Information

    Display unit information CIM DISPLAY INTERFACE NAME/DESCRIPTION SPEED BATTERY CHARGE / REMAINING DISTANCE RIDE STATISTICS TIME ASSISTANCE LEVEL CADENCE SYSTEM FUNCTIONS...

  • Page 49: Power On

    Power on To turn on the bike, long press the power button Long press Stand by mode on To put your bike in standby mode, short press the power button Short press Stand by mode off To wake up the bike from stand-by mode, press any button on the control unit or move the bike Press any button SYSTEM FUNCTIONS...

  • Page 50: Power Off

    To turn the lights on or off, short or long press the light button SHORT PRESS - Busch+Müller lights (see bike parts 10 & 11) LONG PRESS - auxiliary Greyp lights (on CIM and BUTS, see bike parts 1 & 3) SYSTEM FUNCTIONS...

  • Page 51: Joystick

    Joystick To switch between different information on the display unit, move the joystick up or down » TRIP » ODOMETER » AVERAGE SPEED » TRIP TIME Move up/down Assist level up/down To change the assistance level, short press the plus or minus assist level button Short press to change by one level SYSTEM FUNCTIONS...

  • Page 52: Info And Pair A Bike Screen

    Info and Pair a bike screen To acess the Info screen, use a combination of buttons. Press and hold Short press Move the joystick up or down to scroll inside the screen or move the joystick left/right to switch between screens Move up/down or left/right Manual Software Update To start the software update use a...

  • Page 53: Battery Pack Mount

    Battery pack mount click Battery pack dismount pull SYSTEM FUNCTIONS...

  • Page 54: Appropriate Spares

    BATTERY PACK MOUNT/DISMOUNT NAME/DESCRIPTION BATTERY LOCK KEY BATTERY LOCK BATTERY LOCK HANDLE BATTERY PACK Appropriate spares: FRONT & BIKE BRAKES ROTORS INNER TUBE REAR TIRE Formula Cura six-bolt 203mm front according to outside T5.1 29" x 2.25’’ or Cura 4 &...

  • Page 55: Bike Maintenance And Range

    Bike maintenance and range Service and maintenance schedule BEFORE COMPONENT WHAT TO DO MONTHLY ANNUALLY OTHER EVERY RIDE Check and lube CHAIN if necessary After 1000km or CHAIN Replace sooner if needed CASSETTE After 3000km or AND CHAIN Replace sooner if needed RING Check pressure, TIRES...
  • Page 56 As specified by BRAKE FLUID Change manufacturer As specified by SUSPENSION Service manufacturer Check and BOLTS AND tighten if NUTS necessary CABLES AND Replace HOUSINGS Check for play HEADSET and regrease if necessary Check and HANDLEBARS replace if necessary LIGHTING Check PEDALS Check for play...

  • Page 57: Shifting Recommendations

    Shifting recommendations For better range, Greyp advises to shift according to your speed. For low speeds, low gearing is best. The higher the speed, the higher the gear that can be chosen. For smooth support and optimum range, it is best to release the pedal pressure while shifting gears.

  • Page 58: Pushplate

    FRAME TORQUE SPECIFICATION NAME / DESCRIPTION TORQUE, Nm [lbf ft] FRAME / MOTOR 10 [7.4] + medium strength thread locker SKIDPLATE / FRAME 4 [3] + low strength thread locker BOTTLE CAGE / FRAME 2 [1.5] CABLE GLAND / FRAME 1 [0.7] + low strength thread locker PUSHPLATE HOLDER / FRAME 2 [1.5] + medium strength thread locker...

  • Page 59: Handlebar Parts / Stem / TorqueSpecification

    HANDLEBAR PARTS / STEM / TORQUE SPECIFICATION NAME / DESCRIPTION TORQUE, Nm [lbf ft] GRIPS / HANDLEBAR 2 [1.5] SHIFTER / HANDLEBAR 4 [3] BRAKE LEVERS / HANDLEBAR 4 [3] CBC / HANDLEBAR 1,2 [0.9] + low strength thread locker STEM / HANDLEBAR 9 [6.6] + low strength thread locker STEM / FRONT FORK...

  • Page 60: Luggage Carrier

    LUGGAGE CARRIER / REAR MUDGUARD TORQUE SPECIFICATION NAME/DESCRIPTION TORQUE, NM [LBF FT] REAR CAMERA (BUTS) / LUGGAGE CARRIER 1 [0.7] + medium strength thread locker REAR LIGHT PLATE / REAR LIGHT 4 [3] REAR MUDGUARD / FRAME (MOTOR) 4 [3] + medium strength thread locker REAR MUDGUARD / FRAME (SEATSTAY BRIGDE) 4 [3] + medium strength thread locker REAR MUDGUARD / LUGGAGE CARRIER...

  • Page 61: Front Fork / Front Mudguard TorqueSpecification

    FRONT FORK / FRONT MUDGUARD TORQUE SPECIFICATION NAME/DESCRIPTION TORQUE, NM [LBF FT] FRONT MUDGUARD STAY / FRONT MUDGUARD 8 [5.9] + medium strength thread locker FRONT MUDGUARD STAY / FORK 4 [3] + medium strength thread locker FRONT MUDGUARD / FRONT LIGHT / FORK 4 [3] + medium strength thread locker LUGGAGE CARRIER MOUNTING NAME/DESCRIPTION...

  • Page 62: Cable Routing

    CABLE ROUTING NAME/DESCRIPTION CIM / Motor CIM / Rear camera Shifter Front light / Rear light / Motor Rear brake Speed sensor / Motor CIM / CBC BIKE MAINTENANCE & RANGE...

  • Page 63: Ec - Declaration Of Conformity

    EC – Declaration of conformity MANUFACTURER GREYP BIKES D.O.O. Address Ljubljanska 7, 10431 Sveta Nedelja, Croatia Greyp T5.1 – Pedelec (EPAC - electric power assisted cycle) Description of product Greyp T5.2 – Pedelec (EPAC - electric power assisted cycle) Name and address of the person Domagoj Topličanec, Ljubljanska 7,...
  • Page 64 Since we are constantly working on improving our user experience, you can expect frequent mobile app updates FIND THE LATEST VERSION OF THE GREYP APP MANUAL ON OUR WEBSITE The Greyp mobile application is available on Google PlayStore and AppStore...
  • Page 65 Greyp Bikes d.o.o. Ljubljanska 7 10431 Sveta Nedelja Croatia Tel: +385 1 409 3377 Fax: +385 1 333 6698 info@greyp.com...
