DSE ML-7HQ User Manual

USER'S MANUAL
ML-7HQ
LCD monitor with quad

Product description

The ML-7HQ monitors are LCD monitors expressly made
for video surveillance applications where a small size
monitor is required. They are suitable for bracket or flush
mounting and ideal for vehicle installation.

Package Contents

Monitor with bracket
Connection cable
Infrared remote control

Compatible cameras

The monitor is compatible with all analog cameras in
traditional CVBS format. It is also possible to connect
analog cameras in high resolution AHD 720P and 1080P.

Connections

The monitor is supplied with a connection cable to be
connected to the connector that protrudes from the
monitor itself.
At the other end of the cable are the connectors for
connecting the system.
POWER SUPPLY - The monitor is powered by direct current
with voltage from 10 to 36VDC. The negative connects to
the GND cable and the red one connects to the positive).
The positive of the power supply connects to the 12-24V
cable. There is also an ACC cable to be connected to the
vehicle's control unit and which allows the monitor to be
switched on when the vehicle is switched on.
If you are not using the monitor on a vehicle you must
apply the positive to both the 12-24 cable and the ACC
cable for the monitor to turn on.
VIDEO - The monitor has 4 female RCA video inputs for
connecting max. 4 cameras. The monitor can show only
one camera at a time or all cameras together with
different layout options.
There are also 4 colored cables (one per channel). Each of
these, if connected to
corresponding channel to full screen on the monitor. This
is useful for changing shots without having to press any
buttons; for example when switching from normal driving
to reverse. In vehicles, the 12VDC signal can be taken
from the vehicle's control unit.
ML-7HQ LCD monitor
12VDC positive, brings
DSE srl - Digital Surveillance Equipment - WW.DSE.EU

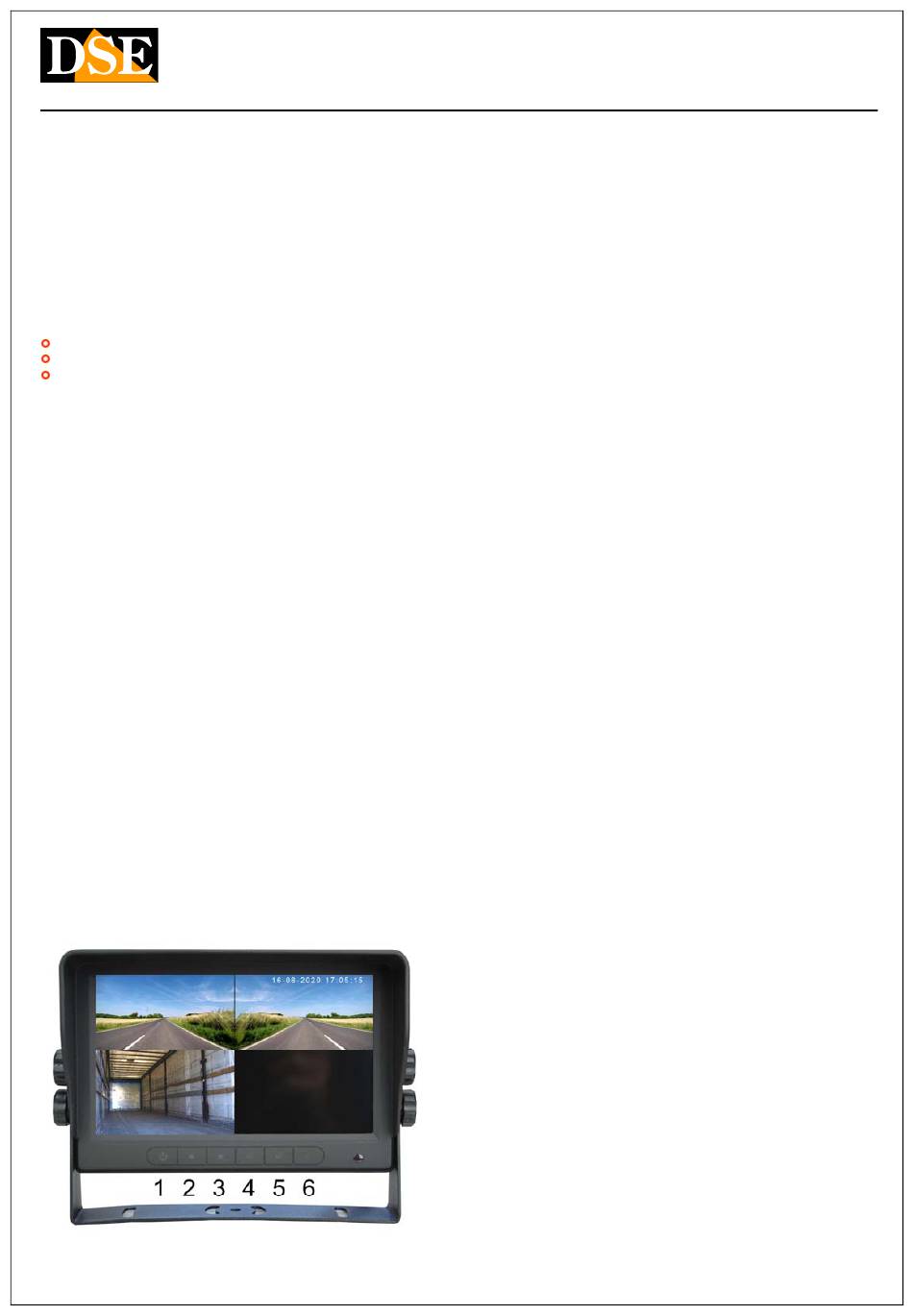

Front push-button panel

1. Power on
2. Up
3. Down
4. Enter - Cyclic scan
5. Menu
6. DX shift / Display change

Using the monitor

The keyboard of this monitor is touch sensitive, you do
not need to press hard on the buttons.
Press the power button (1) to turn on the monitor. Press
key 6 to display video input 1, 2,4,4 or different multiple
display options (which can be enabled in programming).
Press the MENU button (5) to access programming.

Configuration menu

Press the MENU button to access the programming menu.
Move with the arrows, select with the ENTER (4) button
and exit with the M button.
There are the following buttons:
DISPLAY - Contains display options
SYSTEM - Sets the time (other options not used)
PLAYBACK and RECORD: Not used

SYSTEM menu

In the SYSTEM TIME button you can set the date and time
that the monitor shows. In the POWER SAVING option you
can set the automatic shutdown after a period of
inactivity.

DISPLAY menu

In the display button you can configure:
- ADJ Scene MODE display - Adjusts the overall
picture of the monitor (brightness, contrast etc.)
- Display
centering of the monitor
- Display ADJ Image adjust - Adjusts the image for
each channel
- Channel name - You can type in the name of the
the
channels which is displayed overlay
- Loop preview - You can enable the cyclic
scanning vision with a dwell time on each
camera. With button 4 of the keypad you can
start the scan.
- Transparency - Transparency of the menu
- Installation mode - Sets whether the monitor is
normal or inverted. You can also set which
channels reverse and side view are paired for
- Auto brightness - Enable automatic brightness of
the monitor
- Time display - Enable date and time stamping
- Display mode. Set the background and border
color and enable / disable the 15 viewing options.
It is convenient to disable the options not used
so as not to have to scroll them when using key 6
to change display.

Bracket mounting

The special articulated bracket of the ML-7HQ monitor
allows mounting on any surface without the need for
additional accessories.
If necessary, the bracket can be removed if flush-to-
surface mounting is preferred.
Document: ML-7HQ 2E1
ADJ Screen Margins -
Page: 1
Adjusts the
