DSE ML-9Q Owner's Manual

OWNER'S MANUAL

Product description

The ML-9Q monitors are LCD monitors specifically designed for video surveillance applications in
vehicles where a small monitor is required.

Package Contents

Monitor with support bracket and cable

connections

Infrared remote control with battery
Connections
The monitor is provided with a connecting cable to connect to the watertight connector which
protrudes from the monitor itself.
At the other end of the cable the following connections are available:
CH 1/2/3/4 - RCA analog video inputs to connect cameras with composite video output (IN)
AUDIO - RCA connector for connecting an audio signal that will be automatically assigned
to the video 1.
The cable connections also presents a box from which protrude 6 colored wires. The first 2
cables are used for power supply.
Red 12V-24V - for Red 12V-24V - for
12V supply.
Black GND - for Black GND - for
power
The rimenanti 4 cables allow you to select the full screen by applying one of four cameras
By connecting these connections to the vehicle control unit can be automatically lead to full
screen the relevant camera depending on the movement that is making the medium.
Brown Forward Wire - Forward (CH1) (V1) - to bring it to full screen the camera connected Brown Forward Wire - Forward (CH1) (V1) - to bring it to full screen the camera connected
to channel 1 (VIDEO).
Green Reversing Wire - Reverse (CH2) (V2) - to bring it to full screen the camera connected Green Reversing Wire - Reverse (CH2) (V2) - to bring it to full screen the camera connected
to channel 2 (REVERSING-).
Blue Turning Lamp Wire - Left Arrow (L) (CH3) (V3) - to bring it to full screen the camera Blue Turning Lamp Wire - Left Arrow (L) (CH3) (V3) - to bring it to full screen the camera
connected to channel 3 (LEFT).
White Turning Lamp Wire - Freeccia right (R) (CH4) (V4) - to bring it to full screen the White Turning Lamp Wire - Freeccia right (R) (CH4) (V4) - to bring it to full screen the
camera connected to channel 4 (RIGHT).

mounting

The special jointed bracket of ML-9Q monitor allows mounting on any surface without the need
for accessories
additional. The base can be shaped
connect positive
the
connect negative
the
the positive 12V.
DSE srl - Digital Surveillance Equipment - www.dse.eu
Update: March 2012 Update: March 2012
adapt to both smooth curved surfaces and allows the fixing with screws or adhesive.

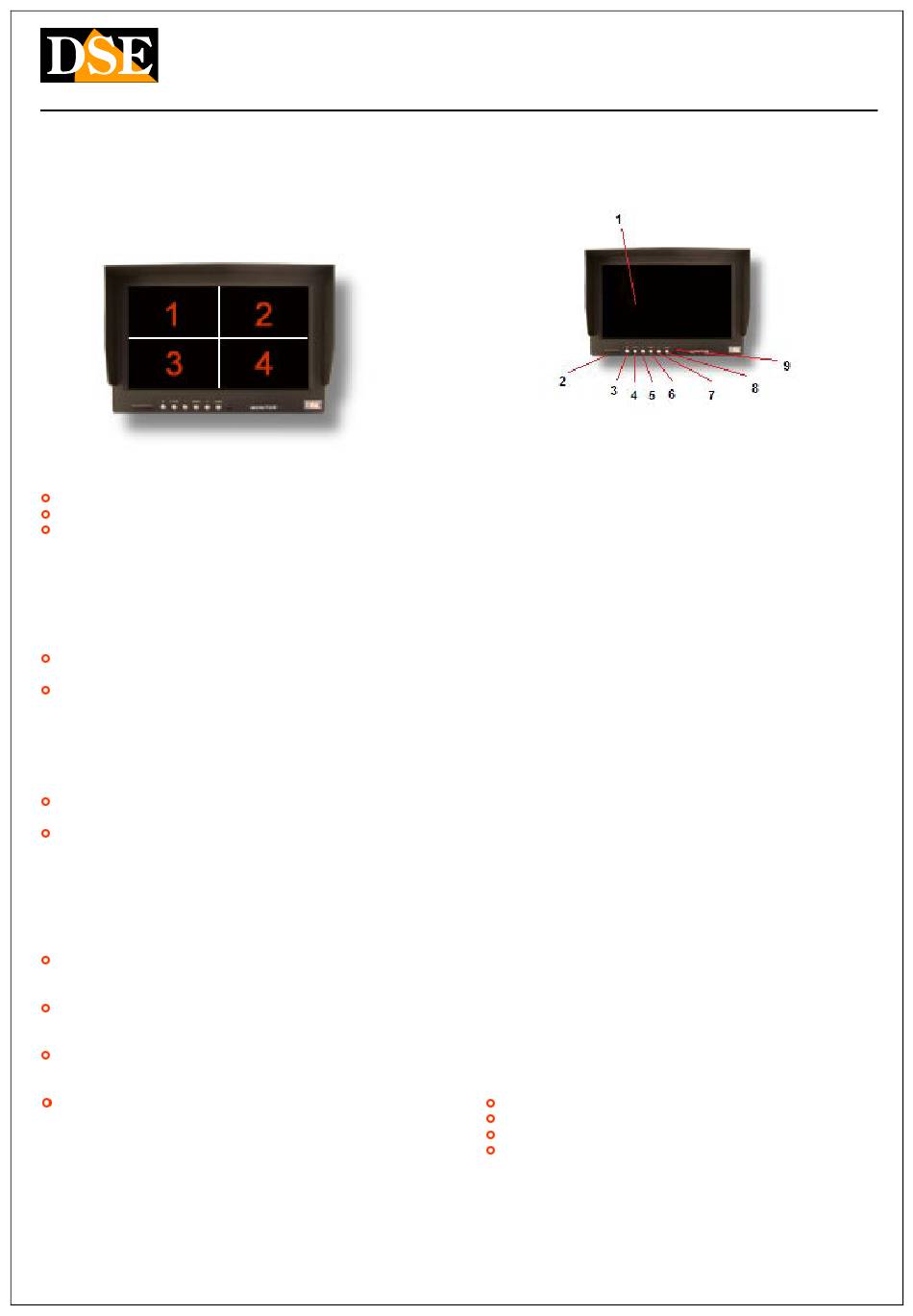

Control panel

1. TFT-LCD screen 9 " 1. TFT-LCD screen 9 "
2. LED power indicator 2. LED power indicator
3. Power button on and off 3. Power button on and off
4. MODE button
5. CH 1
6. CH 2
7. CH 3
8. CH 4
9. Remote sensor 9. Remote sensor

Using the Monitor

Press the power button to turn on the monitor. Press the MODE button to change the display of
windows: single or quadrivisione. Press the keys CH1, CH2, CH3, CH4 to enlarge the image of
the channel corresponding to the key pressed.

Access the menu

Press the MENU button on the remote control to access the programming menu. The factory-set
language is English. And 'possible to select the Italian language in the section SYSTEM Use
these remote control buttons: MENU allows you to access the menu and browse the BUTTON
DOWN / UP programming sections to select the KEYS RIGHT / LEFT voice to vary a parameter
The programming menu it is divided into 4 distinct chapters that are selected by repeatedly
pressing the MENU key:
1. MENU PICTURE
2. MENU AUDIO
3. MENU OPTIONS
4. MENU SYSTEM
5. MENU PROGRA.

picture Menu

Press MENU once, then use the arrows to set the following settings:
BRIGHT 'CONTRAST
SATURATION TONI

sound Menu

Press MENU two times, then use the arrows to adjust the VOLUME.
Document: ML-9Q -1C2 Document: ML-9Q -1C2
Page: 1 Page: 1
ML-9Q LCD monitor
