Barco BarcoReality 909 Brochure & Specs

AutoAlign
B R
ARCO EALITY

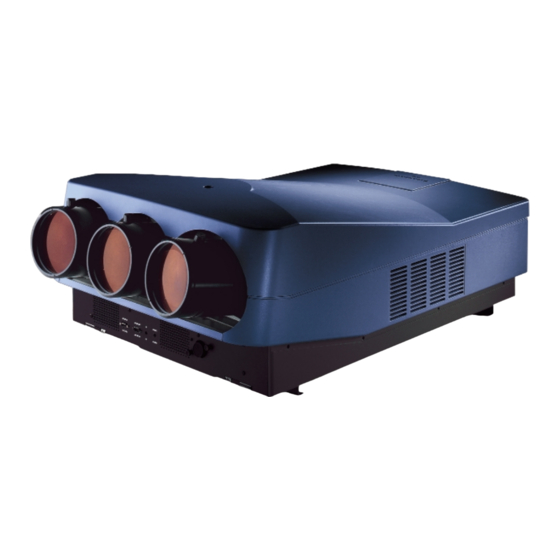

Ultra-High Resolution Digital Projector
The B R 909 is the latest
ARCO EALITY
and most innovative digital
projector offered. Unique digital
image adjustments provide
superlative performance in multi-
channel setups, on curved screens
as well as on flat screens. The
advanced digital design features
make the B R 909 the
ARCO EALITY
reference in high resolution
projection. The B R
ARCO EALITY
especially designed for demanding
applications such as simulation,
Virtual and Augmented Reality,
3D and stereoscopic projection,
industrial design as well as military
command & control centers (C3I).
909
Unequalled Flexibility
• Mosaic geometry correction: Flat, Curved, Off axis
• Digital Image correction optimized for curved screens and
multi-channel setups
• Different lenses are available, optimized for a wide range
of screen sizes from 2 m (6.6 ft.) to
8.8 m (29 ft.) wide, including curved screens
• Digital AutoAlign
convergence parameters
• Built-in Scheimpflug optical correction, with stepless
adjustment, for optimal optical focus for off-axis
projection
• 3D & Stereoscopic optimized phosphors available (upon
request)
Very High Resolution Images
The B R
ARCO EALITY
images with unprecedented visual fidelity.
• Compatibility with workstations up to 3,200 by 2,560
909 is
pixels.
• Horizontal autolock scan frequency range of 30-180 kHz
• 180 MHz RGB amplifier
• New, ultra-high definition, LC gun 9 inch electromagnetic
focus CRTs with digitally controlled dynamic astigmatism
guarantee razor sharp images
• Optional high quality Line Multiplier (L
improved video image quality
• TSN TM 6-pole focus astigmatism correction
TM automatically aligns all geometry and
909 renders high resolution large screen
IMO
innovators in image processing
P ) for
RO
