Installation

1. Mount the dual sensors at the normal water level (with the water
level reaching the lower one) on the reservoir with the magnet.
2. Connect RO solenoid valve with the RO tubing and the tubing
holder according to the installation diagrams below.
3. Plug the RO solenoid valve in the "S" jack of the controller, and
the power supply in the "P" jack. Next, plug in the universal
power adapter.

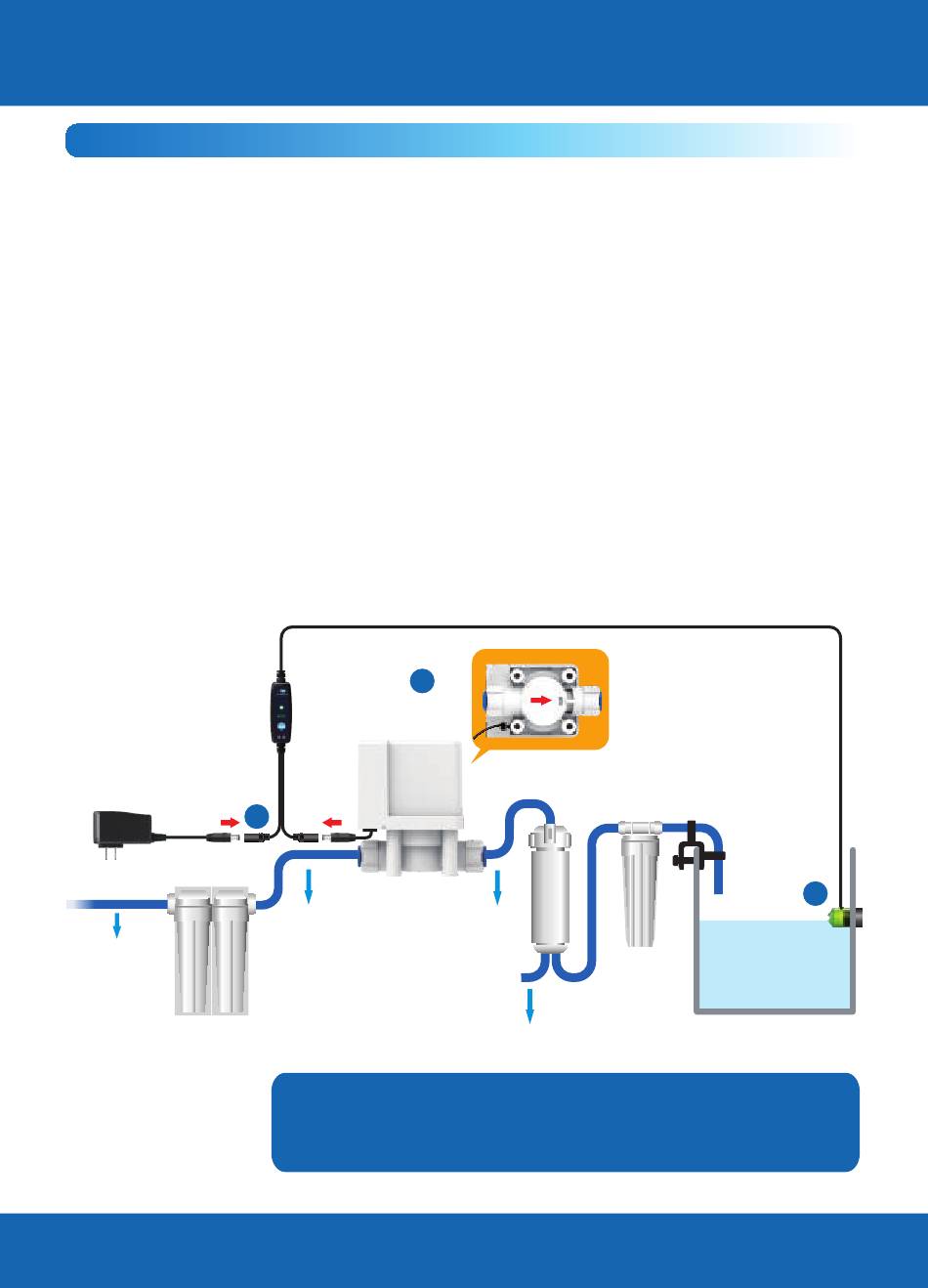

a. RO/DI System without Auto Shut Off
Cut the tubing between the carbon block filter and the RO membrane,
and then connect the tubing to the solenoid valve
to the directional waterflow arrow on the solenoid
Feed water
input
Sediment Carbon
2
Solenoid
Valve
3
Tubing from
pre-filtration
system
Note:
Filtered
water
is
required
to
prevent
sediments














from
clogging
the
solenoid
valve.Do
not
install














the
solenoid
valve
before
your
filtration
system
*
RO
Membrane
DI Filter
Tubing to
RO inlet
RO Waste
2
English
(* pay close attention
valve).
1
Water Reservoir
