- Page 1 Wood Fired Grill WS-PWG-5426 Stand Mounted and Countertop Models enhance your food, home & lifestyle with a Wood Stone Home Appliance An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation Doc no: M0325.00 woodstonehome.com tf.
-
Page 2: Table Of Contents
Replacement Parts ....16 Limited Warranty ....17 An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation tf. 800.578.6836 woodstonehome.com M0325.00... -
Page 3: Professional Series Grill

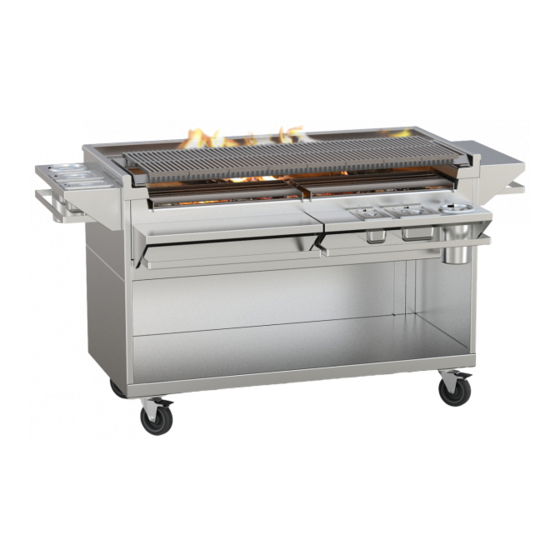

Professional Series Grill Professional Series Grill Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE PROFESSIONAL SERIES GRILL STONE-FIRED COOKING EQUIPMENT WOOD FIRED GRILL INCLUDING COUNTERTOP MODELS ADDITIONAL MANUAL COPIES AVAILABLE UPON REQUEST Shown with optional Stainless Steel Shelves and Sauce Pan Racks. -
Page 4: Cautions & Warnings
IN THIS MANUAL IS NOT APPLICABLE TO COMMERCIAL FOOD SERVICE APPLICATIONS. PLEASE CON- TACT WOOD STONE FOR INFORMATION REGARDING COMMERCIAL SOLID FUEL COOKING EQUIPMENT. WHEN THIS APPLIANCE IS NOT PROPERLY INSTALLED, A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. - Page 5 Wood and charcoal may be stored beneath the grill on cabinet equipped models. Otherwise, wood and charcoal should be stored at least 5 ft. away from the grill. An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation woodstonehome.com tf. 800.578.6836 M0325.00...
- Page 6 In the absence of local codes, relevant Na- tional Codes shall be referred to. An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation tf. 800.578.6836 woodstonehome.com M0325.00...
-
Page 7: Specifications
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION. 930mm 14 7/8" 1300mm 800mm 31 1/2" ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT EXPRESS WRITTEN PERMISSION OF WOOD STONE CORP. IS PROHIBITED. 14 7/8" 380mm 800mm 380mm 6 1/4"... -
Page 8: Clearances
Examples of non-combustible construction include: metal stud wall faced with cement board with a tile or metal finish; cement block with tile or metal finish. An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation tf. 800.578.6836 woodstonehome.com M0325.00... -
Page 9: Installation
Under no circumstances should manual unloading be attempted. If a receiving dock is available, a pallet jack ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED should be sufficient to remove the crated unit from the delivery truck. The use of a forklift (2,000 lb.) is sug- gested when moving the unit from the delivery truck to ground level. -
Page 10: Grill Shelf Installation
Racks onto the bottom sup- ports. 4. Place the upper Wire Cooking Racks onto the top supports. An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation tf. 800.578.6836 woodstonehome.com M0325.00 1801 W. Bakerview Rd. -
Page 11: Fuel Safety
Use only well seasoned hardwood to fuel the grill. The wood should have a moisture content of less than 20%. For best results, pieces should be split so that the diameter does not exceed 5 inches. See Wood Stone’s FUEL- WOOD FACTS section at the end of this manual. -
Page 12: Fueling The Grill
Coal bed 3" 3" 1-1/2" 1-1/2" Ceramic firebox An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation tf. 800.578.6836 woodstonehome.com M0325.00 1801 W. Bakerview Rd. info@woodstonehome.com f. 360.734.0223 Rev. November 2020... - Page 13 See the FUELWOOD FACTS section on page 15 of this manual, for more information about fuel characteristics. An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation woodstonehome.com tf. 800.578.6836 M0325.00...
-
Page 14: Maintenance
Unit must be cool before installing cover. CAUTION: If cover is placed on the unit while in use, or with burning coals it can get hot enough to cause serious burns. An ongoing program of product improvement may require us to change specifications without notice. Wood Stone Corporation tf. 800.578.6836 woodstonehome.com M0325.00... -
Page 15: Fuelwood Facts
(see the Tools & Accessories section of woodstonehome.com under products). Do not use pressed wood products in Wood Stone food service equipment; they may damage the ceramics. Damage caused by use of pressed wood and similar products is not covered under the warranty. -
Page 16: Replacement Parts
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED The drawing below indicates part numbers for the replaceable parts on all Mt. St. Helens models. See table for specific model grate capacities and grate part numbers. -
Page 17: Limited Warranty
In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser. - Page 18 This page left blank, with intention. M0325.00 NOVEMBER 2020...
- Page 19 This page left blank, with intention. M0325.00 NOVEMBER 2020...
- Page 20 WOOD STONE CORPORATION Toll Free 800.578.6836 1801 W. Bakerview Rd. Fax 360.734.0223 Bellingham, WA 98226 USA woodstonehome.com info@woodstonehome.com An ongoing program of product improvement may require us to change specifications without notice. M0325.00 NOVEMBER 2020...
