Installation and
Operation Manual
GAS PLANCHA
Speciality Equipment
Countertop Model
and Optional Stand Models
4-ZONE GAS PLANCHA WS-GPL-4836-CT01
3-ZONE GAS PLANCHA WS-GPL-3636-CT01
2-ZONE GAS PLANCHA WS-GPL-2436-CT01
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Toll Free 800.988.8103
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0202.05
REVISED AUGUST 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAS PLANCHA WS-GPL-4836-CT01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood Stone GAS PLANCHA WS-GPL-4836-CT01

  • Page 1 Installation and Operation Manual GAS PLANCHA Speciality Equipment Countertop Model and Optional Stand Models 4-ZONE GAS PLANCHA WS-GPL-4836-CT01 3-ZONE GAS PLANCHA WS-GPL-3636-CT01 2-ZONE GAS PLANCHA WS-GPL-2436-CT01 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Wood Stone Gas Plancha � � � � � � � � � � � � � � � 3 Cautions & Warnings � � � � � � � � � � � � � � � � � � 4 SPECIFICATIONS WS-GPL-4836-CT01 �...
  • Page 3: Wood Stone Gas Plancha

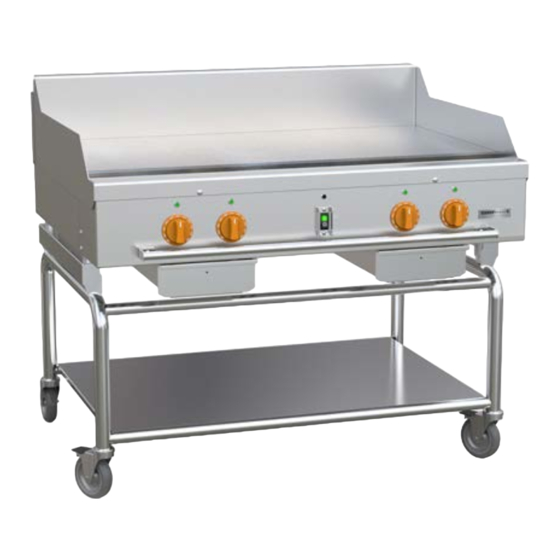

    WOOD STONE GAS PLANCHA Wood Stone Gas Plancha Installation and Operation Manual INSTALLATION AND OPERATION MANUAL WOOD STONE GAS PLANCHA WS-GPL-4836-CT01 (w/ OPTIONAL STAND) WS-GPL-3636-CT01 (w/ OPTIONAL STAND) WS-GPL-2436-CT01 ADDITIONAL COPIES AVAILABLE UPON REQUEST WS-GPL-4836-CT01 WS-GPL-4836-CT01 Shown with optional stand...
  • Page 4: Cautions & Warnings

    CAUTIONS & WARNINGS Wood Stone Gas Plancha Installation and Operation Manual WOOD STONE GAS PLANCHA INSTALLATION AND OPERATION INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�...
  • Page 5: Ws-Gpl-4836-Ct01

    Unit weight: 484 lbs UTILITIES SPECIFICATIONS Refer to data plate when installing. Electrical Venting 120 VAC, �7 A, 50/60 Hz The Wood Stone Gas Plancha must be vented with 3/4 inch FNPT gas inlet 1 of 1 SHEET: 1 of 1...
  • Page 6: Ws-Gpl-4836-Ct01 W/ Stand

    REV: PART #: DATE: WS-GPL-4836 DATE: 120 VAC, �7 A, 50/60 Hz The Wood Stone Gas Plancha must be vented with 3/4 inch FNPT gas inlet lucasm DWN BY: Equipped with a NEMA 5-15P plug for use with 7/12/2018 GPL4836...
  • Page 7: Ws-Gpl-3636-Ct01

    Electrical Venting 120 VAC, �6 A, 50/60 Hz The Wood Stone Gas Plancha must be vented with 3/4 inch FNPT gas inlet Equipped with a NEMA 5-15P plug for use with a Listed Type 1 exhaust hood, or one constructed in...
  • Page 8: Ws-Gpl-3636-Ct01 W/ Stand

    1 of 1 PART #: PART #: REV: REV: WS-GPL-3636 WS-GPL-3636 120 VAC, �6 A, 50/60 Hz The Wood Stone Gas Plancha must be vented with 3/4 inch FNPT gas inlet SHEET: 1 of 1 PART #: REV: WS-GPL-3636 lucasm...
  • Page 9: Ws-Gpl-2436-Ct01

    Electrical Venting 120 VAC, �4 A, 50/60 Hz The Wood Stone Gas Plancha must be vented with 3/4 inch FNPT gas inlet Equipped with a NEMA 5-15P plug for use with a Listed Type 1 exhaust hood, or one constructed in 60,000 BTU/hr Natural Gas (NG) a standard 120 VAC 15 A or 20 A outlet�...
  • Page 10: Clearances & Ventilation

    VENTILATION The Wood Stone Gas Plancha must be vented with a Listed Type 1 Exhaust Hood, or one constructed in accordance with NFPA 96 and all relevant local and national codes� The oven must be vented in accordance with all relevant local and national codes, and in a manner acceptable to the authority having jurisdiction�...
  • Page 11: Utility Specifications

    If incoming gas pressure is greater than 1/2 psi, an additional regulator, by others, must be installed on the gas line serving the appliance� Do not remove the factory supplied regulator� If you must convert the Plancha to run on a different gas type, i�e� NG to LP, please contact Wood Stone to obtain the necessary parts and instructions�...
  • Page 12: Basic Operation

    BASIC OPERATION Wood Stone Gas Plancha Installation and Operation Manual CLEAN THOROUGHLY BEFORE FIRST USE A vegetable oil cooking spray is applied to the cook surface at the factory to help protect from corrosion during shipping� The cook surface must be thoroughly cleaned before use� Follow these instructions: 1.
  • Page 13: Daily Use & Maintenance

    DAILY USE & MAINTENANCE Wood Stone Gas Plancha Installation and Operation Manual DAILY USE AND MAINTENANCE 1. Check and empty the Grease/Debris Tray(s) frequently throughout the day� Keep the drain clear and do not allow the trays to overflow� 2. The cooking surface should be scraped frequently throughout the day using a grill scraper�...
  • Page 14: Troubleshooting

    Exhaust Hood system is turned ON� 2. Try connecting unit to a different outlet� 3. If Plancha still does not turn ON, please contact Wood Stone for assistance� 1. Check that gas line is connected by disconnecting and reconnecting the...
  • Page 15: Operational Sequence

    OPERATIONAL SEQUENCE Wood Stone Gas Plancha Installation and Operation Manual SEQUENCE OF OPERATION Power Switch ON� Software version blinks on one of the green front panel lights, and momentarily illuminates the red “Fault” light� Controller determines temperature is below Set Point and signals Burners to light�...
  • Page 16: Ws-Gpl-4836-Ct01

    WS-GPL-4836-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual IGNITION MODULE INTERCONNECT HARNESS - W6     M0202.05 AUGUST 2018...
  • Page 17: Ignition & Power Distribution

    WS-GPL-4836-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual IGNITION AND POWER DISTRIBUTION              M0202.05 AUGUST 2018...
  • Page 18: Indicators & Potentiometers

    WS-GPL-4836-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual INDICATORS AND POTENTIOMETERS M0202.05 AUGUST 2018...
  • Page 19: Thermocouple Connections

    WS-GPL-4836-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual THERMOCOUPLE CONNECTIONS M0202.05 AUGUST 2018...
  • Page 20: Ws-Gpl-3636-Ct01

    WS-GPL-3636-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual IGNITION MODULE INTERCONNECT HARNESS - W6    M0202.05 AUGUST 2018...
  • Page 21: Ignition & Power Distribution

    WS-GPL-3636-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual IGNITION AND POWER DISTRIBUTION            M0202.05 AUGUST 2018...
  • Page 22: Indicators & Potentiometers

    WS-GPL-3636-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual INDICATORS AND POTENTIOMETERS M0202.05 AUGUST 2018...
  • Page 23: Thermocouple Connections

    WS-GPL-3636-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual THERMOCOUPLE CONNECTIONS M0202.05 AUGUST 2018...
  • Page 24: Ws-Gpl-2436-Ct01

    WS-GPL-2436-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual IGNITION MODULE INTERCONNECT HARNESS - W6   M0202.05 AUGUST 2018...
  • Page 25: Ignition & Power Distribution

    WS-GPL-2436-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual IGNITION AND POWER DISTRIBUTION          M0202.05 AUGUST 2018...
  • Page 26: Indicators & Potentiometers

    WS-GPL-2436-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual INDICATORS AND POTENTIOMETERS M0202.05 AUGUST 2018...
  • Page 27: Thermocouple Connections

    WS-GPL-2436-CT01 WIRE DIAGRAM Wood Stone Gas Plancha Installation and Operation Manual THERMOCOUPLE CONNECTIONS M0202.05 AUGUST 2018...
  • Page 28: Limited Warranty

    In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
