- Page 1 O W N E R ’ S M A N U A L E N G L I S H...
- Page 2 Ranger - OWNER‘S MANUAL...
-
Page 3: A Word About This Safety Manual
The secret of learning to ride well is to be able to ride a lot, and KUBERG motorcycles make this learning process very gratifying for teenagers and adults alike. Thanks again for purchasing a KUBERG... -
Page 4: Table Of Contents
2021 KUBERG Ranger Specifications – KUBERG Ranger Before first ride Unpacking and assembly First setup Break-in period Motorcycle controls Setting up your KUBERG Ranger for riding Setting power & torque modes Drivetrain Adjusting chain tension Motor performance Weather effects on performance Maintenance... - Page 5 Maintaining the central double sprocket and chains tensions The reclining seat Front wheel removal and installation Rear wheel removal and installation Front and rear brake adjustment Brake squeal Adjusting the suspension Battery use, care and maintenance Charging instructions Battery removal and installation Long term storage Battery disposal Riding instructions &...
-
Page 6: Important Symbols And Terms
(operators). Please read, understand and follow all Warning, Caution and Note notices on your KUBERG electric motorcycle and those included in this Manual. If you do not understand any of this important information, please contact your selling dealer/distributor or the KUBERG Customer Service Department (Email: kuberg@kuberg.com, phone:... -
Page 7: Safety Advice
KUBERG motorcycles are designed primarily for OFF-ROAD use. Please check your local, state and national regulations as to whether single–track, motorized electric vehicles are legal for road use in your area. KUBERG Ranger is not homologated for road use in the European Union. -
Page 8: Safe Riding Practices
Heavier riders may cause structural damage not covered by the warranty. Do not touch any moving or hot parts. DO NOT RIDE AT NIGHT OR UNDER LOW VISIBILITY CONDITIONS, if your KUBERG Ranger is not equipped with the light kit (sold separately). - Page 9 Night time Your KUBERG Ranger can be equipped with the light kit (sold separately). You can ride after dark or in low light conditions ONLY if your KUBERG Ranger is equipped with the lights. Batteries We have equipped your KUBERG Ranger with highly advanced lithium-ion batteries. Go to page 27 to learn about these batteries and the correct charging procedure.
-
Page 10: Vehicle Overview

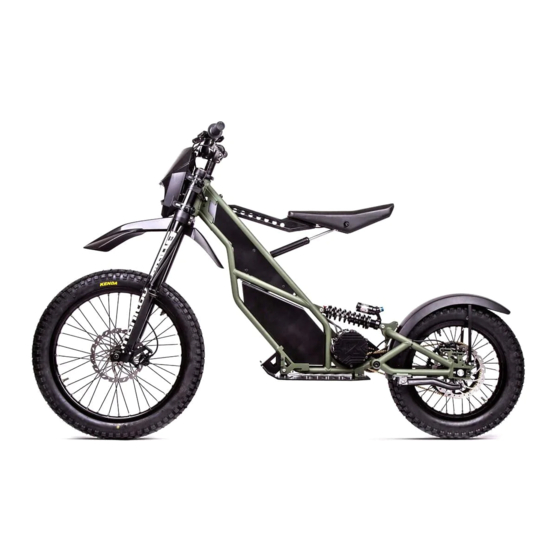

Vehicle overview 2021 Kuberg Ranger For teens and adults looking for serious acceleration, the powerful Ranger opens the door to a whole new riding experience. Throttle Secondary chain Handlebar Reclining seat Steering column Reclining seat adjustment lever Front brake Speed & torque control button... -
Page 11: Specifications - Kuberg Ranger
Black or Military Green WARNING! The KUBERG Ranger is designed to operate at 48 volts only. Use of any battery voltage other than 48 volts will result in motor failure. KUBERG Inc. considers modifications and/ or changes to its electrical components to be a material alteration of its products, thereby voiding any warranties and/or guarantees in their entirety. -
Page 12: Before First Ride
Before first ride NOTE: If you purchased your KUBERG motorcycle at a local dealer your motorcycle may be fully adjusted and ready to ride. If you purchased your KUBERG still in the original packing, please carefully follow the instructions below and any supplemental instructions in order to complete the assembly and adjustment of your KUBERG motorcycle. -
Page 13: First Setup
Check the tire pressure of both tires and confirm that they are properly inflated. The optimal tire pressure for the KUBERG Ranger is 35 – 50 PSI (2.4 – 3.4 bar) for general use and should never exceed 50 PSI (3.4 bar). -
Page 14: Break-In Period
Break-in period To assure future reliability and top-notch performance of your KUBERG Ranger, please pay an extra attention during your first 150 km/93 miles or three full-charge cycles (whichever comes first). During this period please obey the following: Avoid full-throttle starts and accelerate gradually. -
Page 15: Setting Up Your Kuberg Ranger For Riding
NOTE: A responsible adult must ensure that the KUBERG Ranger and its rider are prepared for every ride. The motorcycle must be set to the abilities of the rider, and the rider and the motorcycle must be supervised when ridden by a child or a teenager. Novice riders can lose concentration quickly, and be easily distracted. -
Page 16: Setting Power & Torque Modes
Setting power & torque modes Follow these steps to limit the maximum power and torque on your KUBERG Ranger: Turn off your motorcycle. Press and hold the control button. The control button is located on the right side of the handlebar. -
Page 17: Motor Performance
Motor performance The KUBERG Ranger has multiple sensors and control software to prevent the batteries, the motor and the controller from overheating. Once the temperature of batteries, motor or controller reaches a high temperature, the motorcycle power will be limited to 70%... -
Page 18: Weather Effects On Performance
Our authorized dealers have extensive experience and know KUBERG vehicles inside and out, so they can provide high-quality service for your KUBERG motorcycle. However, service at a dealer is not required to maintain your warranty. -
Page 19: Cleaning
Weather effects on performance Keep your KUBERG Ranger clean and dry. Regularly check all components for tightness and adjustment, including handlebars, levers, axles, chain and brakes. Check the settings for torque and maximum speed. Check the tires for damage and for proper inflation. - Page 20 Screw in and tighten the right pivot bolt to the swing arm (53 - 55 Nm). Put the primary chain back on motor pinion gear and screw in all 3 bolts, that were removed during step #10. Ranger - OWNER‘S MANUAL...
-
Page 21: The Reclining Seat
DOUBLE CHECK THAT ALL MOTOR, FRAME, REAR WHEEL AND CHAIN GUARD BOLTS ARE TIGHTEN PROPERLY! The Reclining seat Your KUBERG Ranger is equipped with the reclining seat, controlled from the handlebar. Whenever you feel the need for an extra moving space during... -
Page 22: Front Wheel Removal And Installation
When finished with adjusting, tighten the securing nut to fix the cable lenght. WARNING! Do not operate your KUBERG Ranger if any damage is apparent. Immediately contact your local retailer/distributor or KUBERG Customer Service. WARNING! There are no user serviceable elements incorporated into the motor, motor controller, batteries, battery charger, throttle or wiring harness of your KUBERG electric motorcycle. -
Page 23: Rear Wheel Removal And Installation
To re-install the wheel, insert the front wheel and both spacers carefully into the front fork and insert the axle. This step may require another person to help. The brake disc must slide easily and gently between the brake pads. Insert and tithten the axle locking bolt (3,4 - 4,5 Nm) and then tighten all 4 axle bolts (10,7 - 12,4 Nm). -
Page 24: Brake Squeal
Dirt and humidity can cause noisy or squealing brakes. These are normally temporary and should gradually disappear with regular use. Repair is not required. If you hear a metallic “screeching” sound you might need to replace the brake pads. Visit your KUBERG dealer to replace the brake pads. - Page 25 Rear suspension Your KUBERG Ranger is equipped with a single coil spring and a DNM Burner RCP-3 shock. For a harder/stiffer ride at the rear tighten the adjustment ring in a clockwise direction. For a softer ride, loosen the adjuster by turning anti-clockwise.
-
Page 26: Battery Use, Care And Maintenance
If any error on the battery module occurs, the BMS will keep the motorcycle safe. However, you must always always park your KUBERG Ranger away from any flammable objects CAUTION! Minimum distance between the parked vehicle and any flamable object must be at least 3 meters (10ft.) -
Page 27: Charging Instructions
Charging instructions - Kuberg Ranger Always follow these steps when charging your KUBERG Ranger: Make sure your KUBERG Ranger is turned off. Connect your charger to an electrical outlet (AC) 110 V or 230 V. Turn on the power switch on the charger. -
Page 28: Battery Removal And Installation
Battery removal and installation During normal use, KUBERG does not recommend removing the batteries from the KUBERG Ranger. If you need to replace the battery or remove it, KUBERG highly recommends taking the motorcycle to a certified technician or a KUBERG dealer. -
Page 29: Long Term Storage
Long term storage If you do not plan to use your Ranger for an extended period of time (1 week or more), remove the batteries from the motorcycle for storage (or alternatively disconnect it from the controller, and also disconnect it from the charger) and keep your battery pack to 50-60% of its capacity (i.e 46 Volts for Ranger), and store it in a dry and cool place at... -
Page 30: Riding Instructions & Safety Tips (Beginner Riders)
Riding instructions & safety tips (novice riders) With the motorcycle set up correctly, your KUBERG Ranger is ready to ride! For novice riders, please follow these tips and instructions. The riders will get the most enjoyment if they feel safe and in control. Do not be tempted to start the rides too quickly. Make sure the speed and power settings are set slow to begin with. -
Page 31: Correct Riding Technique
Always follow these instructions for protective equipment for every ride in order to limit the risk of injury in case of an accident. The KUBERG Ranger is intended for OFF ROAD use and therefore there is a high likelihood of dirt and other debris being thrown into the air, which presents a risk of injury. -
Page 32: Helmets
Helmets There is no single factor that works best for reducing the severity of injuries sustained in accidents more than a quality helmet. Don’t ever allow your KUBERG motorcycle to be ridden without a helmet. Clothing Motorcycle leathers and padded protection for knees, back and arms can prevent abrasion injuries in the event of a fall. -
Page 33: Trailer
Towing a trailer Your KUBERG Ranger can be equipped with the original KUBERG trailer, capable of towing max. 30kg (66 lbs) of load. WARNING! Maximum speed with an attached trailer is 25 kmph (15 mph). Attaching and detaching the trailer Loosen the locking nut and divert the locking mechanism. -
Page 34: Limited Warranty
The liability of KUBERG here under is expressly limited to the replacement of goods complying with this warranty or at the sole election of KUBERG to the repayment of an amount equivalent to the purchase price of the product in question. - Page 35 Kuberg Motorcycle Service Log Kuberg motorcycles are designed for extreme riding conditions which can cause a lot of stress to the bike’s components. Because of this, Kuberg warranties require scheduled maintenance at 3, 6, and 12 months in order to maintain optimal performance.
- Page 36 Other services needed DATE DEALER NOTES SIGNATURE (DESCRIPTION OF SERVICES PERFORMED AND PARTS REPLACED) DATE DEALER NOTES SIGNATURE (DESCRIPTION OF SERVICES PERFORMED AND PARTS REPLACED) DATE DEALER NOTES SIGNATURE (DESCRIPTION OF SERVICES PERFORMED AND PARTS REPLACED) DATE DEALER NOTES SIGNATURE (DESCRIPTION OF SERVICES PERFORMED AND PARTS REPLACED) DATE DEALER...
- Page 38 KUBERG s.r.o. Zengrova 630/83 Ostrava - Vítkovice, 703 00 Czech Republic email: kuberg@kuberg.com fax: +420 596 628 898 www.kuberg.com...
