OWNER'S MANUAL 2016
FREERIDER
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freerider 2016 and is the answer not in the manual?

Questions and answers

Related Manuals for Kuberg Freerider 2016

Summary of Contents for Kuberg Freerider 2016

  • Page 1 OWNER’S MANUAL 2016 FREERIDER ENGLISH...
  • Page 2 OWNER’S MANUAL...

  • Page 3: A Word About This Safety Manual

    A WORD ABOUT THIS SAFETY MANUAL DEAR KUBERG CUSTOMER Congratulations on your purchase of a Kuberg Freerider. You now own a state of the art electric motorcycle that will give you endless thrills if you maintain it properly. We welcome you to the community of KUBERG riders.

  • Page 4: Table Of Contents

    A WORD ABOUT THIS SAFETY MANUAL IMPORTANT SYMBOLS AND TERMS SAFETY ADVICE ELECTRIC DRIVETRAIN SAFE RIDING PRACTICES VEHICLE OVERVIEW 2016 KUBERG FREERIDER SPECIFICATIONS – KUBERG FREERIDER BEFORE FIRST RIDE UNPACKING AND ASSEMBLY FIRST SETUP BREAK-IN PERIOD MOTORCYCLE CONTROLS DRIVE TRAIN...
  • Page 5 SETTING UP YOUR KUBERG FREERIDER FOR RIDING SETTING POWER & TORQUE MODES SETTING UP THE BRAKES RIDING INSTRUCTIONS & SAFETY TIPS (BEGINNER RIDERS) FIRST RIDE (NOVICE RIDERS) LEARNING TO STAND UP CORRECT RIDING TECHNIQUE PROTECTIVE EQUIPMENT HELMETS CLOTHING ACCESSORIES LIMITED WARRANTY...

  • Page 6: Important Symbols And Terms

    (operators). Please read, understand and follow all Warning, Caution and Note notices on your KUBERG electric bike and those included in this Manual. If you do not understand any of this important information, please contact your selling dealer/distributor or the KUBERG Customer Service Department (Email: kuberg@kuberg.com, phone: +420 608 757 353)

  • Page 7: Safety Advice

    KUBERG motorcycle. SPEED & TORQUE SETTINGS Your KUBERG Freerider features a power and torque control button that must be set for the abili- ties of the rider. This must be set by the responsible supervising adult before each and every ride.
  • Page 8 OBEY ALL LAWS Obey all laws. KUBERG bikes are for OFF-ROAD USE ONLY. KUBERG bikes cannot be used on public roads or sidewalks. The purchaser, owner, and/or riders of this motorcycle are directly re- sponsible for ensuring that they obey all local, state, federal and national laws regarding the riding and use of this motorcycle.
  • Page 9 Do not ride after dark or in low light conditions. BATTERIES We have equipped your KUBERG Freerider with highly advanced lithium-ion batteries. Go to page xxx to learn about these batteries and the correct charging procedure. BE AWARE OF THE MOTORCYCLE’S CHAIN Under no circumstances should hands or other body parts be close to a moving motorcycle chain.

  • Page 10: Vehicle Overview

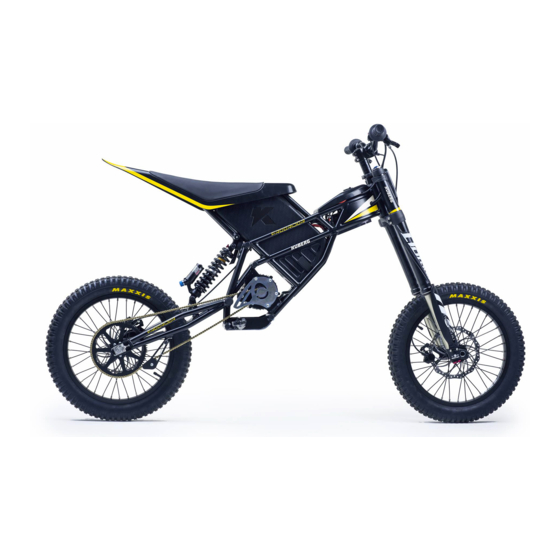

    VEHICLE OVERVIEW 2016 KUBERG FREERIDER For teens and adults looking for serious acceleration, the powerful FREERIDER opens the door to a whole new riding experience. Throttle Speed & torque control button Handlebar Foot pegs Steering column Motor Front brake Shock absorber...

  • Page 11: Specifications - Kuberg Freerider

    WiFi ready - adapter sold separately WARNING! The KUBERG FREERIDER is designed to operate at 48 volts only. Use of any battery voltage other than 48 volts will result in motor failure. KUBERG Inc. considers modifications and/or changes to its electrical components to be a material alteration of its products, thereby voiding any warran- ties and/or guarantees in their entirety.

  • Page 12: Before First Ride

    Check the tire pressure of both tires and confirm that they are properly inflated. The opti- mal tire pressure for the Kuberg Freerider is 35 – 50 PSI (2.4 – 3.4 bar) for general use and should never exceed 50 PSI (3.4 bar).

  • Page 13: Break-In Period

    There are no user serviceable elements incorporated into the motor, motor controller, batteries, battery charger, throttle, or wiring harness of your KUBERG electric bike. DO NOT ATTEMPT TO DISASSEMBLE OR ADJUST ANY OF THESE COMPONENTS. Doing so may cause extensive damage to these components, will void your warranty, and may result in danger to persons and/or proper- ty.
  • Page 14 CHARGING PORT When it’s time to recharge the bike, the battery charger connector attaches to this port. Before attaching, ensure that the power is switched to the off position. Please refer to the battery and charging section (page 23) of this manual for more information. WARNING! The power on the motorcycle must be switched OFF before attaching and plugging in the charger.
  • Page 15 OWNER’S MANUAL...

  • Page 16: Drive Train

    DRIVE TRAIN Your KUBERG Freerider features a traditional chain and sprockets. It is direct drive with no gears. The chain should not need to be adjusted on a regular basis, especially when the bike is new. However, it is important to check the chain before every ride and adjust it when necessary. There should be very little slack in the chain.

  • Page 17: Maintenance

    Our authorized dealers have extensive experience and know Kuberg bikes inside and out, so they can provide high-quality service for your Kuberg motorcycle. However, service at a dealer is not required to maintain your warranty.

  • Page 18: Front Wheel Removal And Installation

    If you cannot resolve any problem using this owner’s manual, contact your KUBERG authorized dealer, or call the KUBERG Customer Service for assistance.

  • Page 19: Front And Rear Brake Adjustment

    If the wheel does not spin freely with the brake released, the caliper position itself can be moved by using an Allen wrench (Allen Key) on the back side of the caliper. WARNING: KUBERG brakes are adjustable. Novice riders should have the front brake ‘backed off’ somewhat so it does not bite too suddenly.

  • Page 20: Brake Squeal

    Dirt and humidity can cause noisy or squealing brakes. These are normally temporary and should gradually disappear with regular use. Repair is not required. If you hear a metallic “screeching’ sound you might need to replace the brake pads. Visit your Kuberg dealer to replace the brake pads.

  • Page 21: Battery Use, Care And Maintenance

    To avoid damage to the battery, never subject it to intense physical shock or severe vibration. CHARGING INSTRUCTIONS – KUBERG FREERIDER Always follow these steps when charging your Kuberg Freerider. Make sure your Kuberg Freerider is turned off. OWNER’S MANUAL...
  • Page 22 Connect your charger to an electrical outlet (AC). Turn on the power switch on the charger. Wait for 30 seconds. Connect the charger cable to the battery connector on your bike. CAUTION! If the charger is plugged into the bike with the charger switched OFF, a potential in-rush of electri- cal current from the bike’s battery to the charger may damage the charger.

  • Page 23: Battery Removal And Installation

    Freerider. Should you need to replace the battery or remove it, KUBERG highly recommends tak- ing the motorcycle to a certified technician or a Kuberg dealer. If you choose to remove or replace the battery yourself, please follow the following instructions carefully: Ensure the power switch is in off position.

  • Page 24: Long Term Storage

    Kuberg Customer Service (kuberg@kuberg.com). BATTERY DISPOSAL We are confident that you will enjoy many kilometers or miles of thrilling riding with your KUBERG motorcycle. But, batteries can eventually wear out. When this happens, we urge you to properly dispose of your used batteries. For guidance regarding proper disposal of your batteries, please contact the KUBERG Customer Service (kuberg@kuberg.com).

  • Page 25: Setting Up Your Kuberg Freerider For Riding

    Failure to do so, mayresult in injury or death, and/or damage to your motorcycle. NOTE: A responsible adult must ensure that the Kuberg Freerider and its rider are prepared for every ride. The motorcycle must be set to the abilities of the rider, and the rider and the bike must be supervised when ridden by a child or a teenager.

  • Page 26: Setting Up The Brakes

    Sport and Race modes should only be used by experienced riders! SETTING UP THE BRAKES The brakes on Kuberg motorcycles are adjustable. Novice riders should have the front brake ‘backed off’ somewhat so it does not bite too suddenly. As the rider gets better, the brake can be tightened up for a quicker reaction and a stronger braking force.

  • Page 27: Riding Instructions & Safety Tips (Beginner Riders)

    RIDING INSTRUCTIONS & SAFETY TIPS (NOVICE RIDERS) With the bike set up correctly, your Kuberg Freerider is ready to ride! For novice riders, please follow these tips and instructions. The riders will get the most enjoyment if they feel safe and in control.
  • Page 28 riding technique. The correct technique is to lean and use so-called counter-steering. Count- er-steering is turning the handlebars in the opposite direction as the rider intends to travel. This will cause the bike to lean and turn in the desired direction. Counter-steering needs to be taught slowly and smoothly, sudden movements of the handlebars may cause an accident.

  • Page 29: Protective Equipment

    Always follow these instructions for protective equipment for every ride in order to limit the risk of injury in case of an accident. The KUBERG Freerider is intended for OFF ROAD use and there- fore there is a high likelihood of dirt and other debris being thrown into the air, which presents a risk of injury.

  • Page 30: Accessories

    ACCESSORIES Adding accessories or cargo to your KUBERG motorcycle can negatively affect its stability and handling. To avoid the risk of an accident, use extreme caution when adding accessories or cargo to your KUBERG bike. Use additional care when riding with added accessories or cargo.

  • Page 31: Limited Warranty

    KUBERG shall in no event be liable or respon- or failure to follow instructions or warnings as sible for incidental or consequential losses, stated in the applicable owner’s manual or oth-...
  • Page 32 KUBERG s.r.o. Zengrova 630/83 Ostrava - Vítkovice, 703 00 Czech Republic email: kuberg@kuberg.com fax: +420 596 628 898 WWW.KUBERG.COM ENGLISH...
