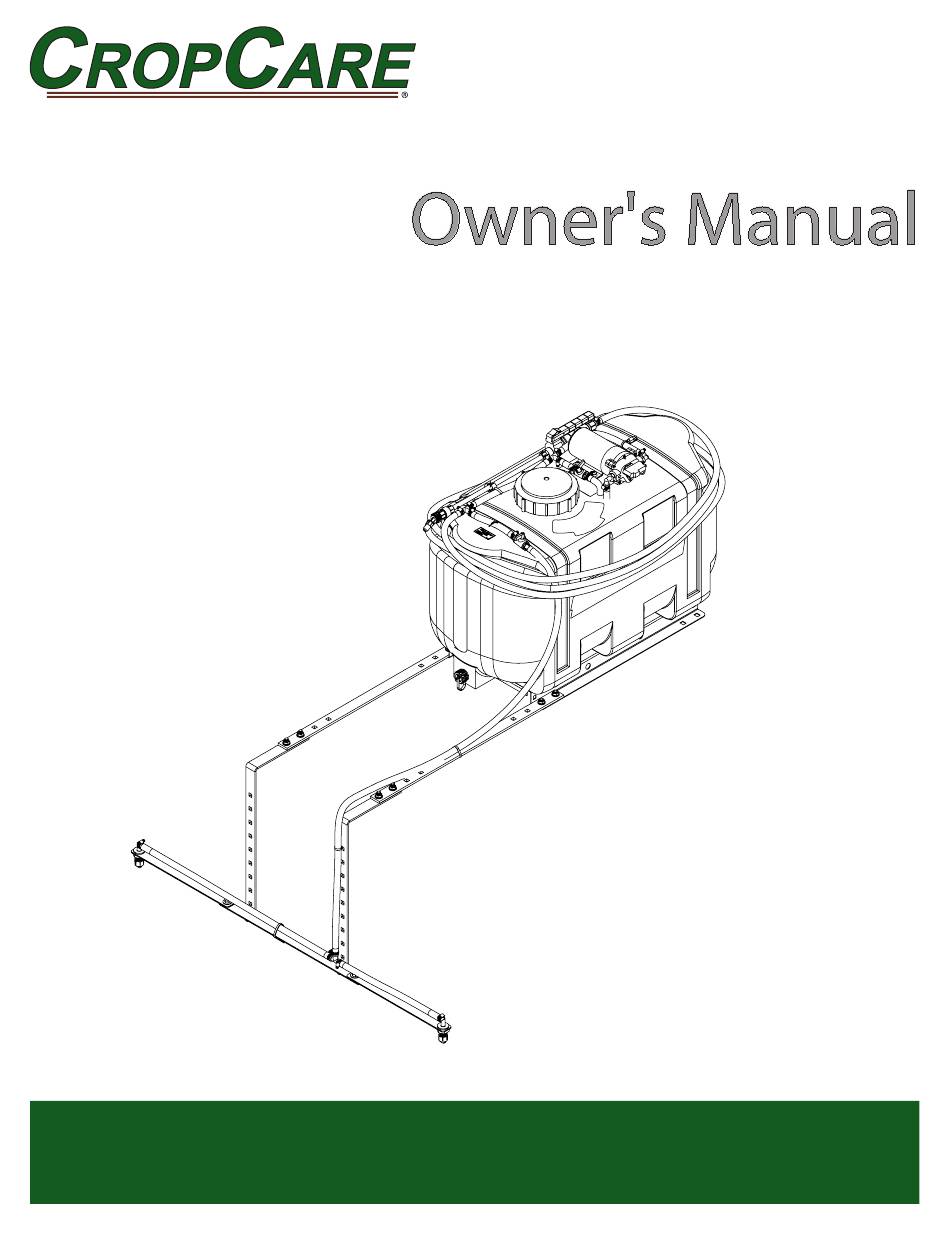

- Page 1 PBZ Owner's Manual 25 Gallon Skid Sprayer Model LGX25-2 Manufactured by PBZ LLC A Paul B Zimmerman Inc. Company www.CropCareEquipment.com Form: LGX25-2OM Rev. A Date: 10/20...
-
Page 2: Table Of Contents
Table Of Contents Identification of Machine ..............2 Routine Maintenance ............11-12 Specifications ..................... 2 Winterizing your Sprayer ............12 Introduction ....................3 Troubleshooting ..................13 Safety ......................3 Breakdowns and Parts Lists ............14-16 Signal Words ..................3 Base Unit Breakdown ..............14 General Guidelines ................ -
Page 3: Introduction
Introduction Please read and understand this manual and its instructions and warnings completely before operating the sprayer. • Familiarize yourself and other operators with the sprayer’s components and how all parts are operated. • Read and understand the chemical manufacturer’s labels, warnings, and instructions. •... -
Page 4: General Guidelines
Safety Signal Words -Additional Signal Words. • NOTE: The signal word NOTE provides information on operator safety and operator tips. • IMPORTANT: The signal word IMPORTANT indicates a recommended action or a restriction that will ensure correct equipment operation and performance. Safety General Guidelines Every year many unnecessary accidents occur due to improper equipment handling and a disregard for safety precautions. -
Page 5: Before Operation
Safety Before Operation • • Carefully study and understand this owner's manual. Never exceed the vehicle manufacturer's load rating. • • Read and follow chemical manufacturer's labels, Give the sprayer a visual inspection for any worn parts, warnings, and instructions! A material safety data loose bolts, or other visible problems, and make the sheet (MSDS) should be provided by the chemical necessary repairs. -
Page 6: Installation
Installation Mounting the Skid Sprayer It is recommended to use straps (1) to secure the sprayer to the utility vehicle’s bed, as shown (Figure 1). • There are two different mounting positions for the boom mounts (Item 2) to allow for different bed lengths. -
Page 7: Calibrating The Sprayer
Calibrating the Sprayer When spraying with the boom, the sprayer must be calibrated to ensure proper spray coverage. Before calibrating the sprayer, it is important to familiarize yourself with the “Operating Instructions” section. The calibration process is simplified when broken down into the following steps: Calculate the speed of the utility vehicle. -
Page 8: Application Rate Charts
Calibrating the Sprayer 2. Application Rate Charts The sprayer operates at a fixed pressure through the boom and spray wand. Although the pressure can be adjusted to the boom by partially opening the boom control valve (1) (Figure 1, pg 9), it is recommended that the valve is operated in full open position. Use the chart below to select your desired speed and application rate. -
Page 9: Operating Instructions
Operating Instructions IMPORTANT: Before spraying, read this entire manual and know all safety precautions. Always take your time and be alert when operating your sprayer in order to avoid an accident. Spraying with the Boom Calibrate the sprayer using the preceding calibration instructions and chart. -
Page 10: Spraying With The Spray Gun
Operating Instructions Spraying with the Boom Continued sprayer is now ready to begin spraying. 11. Upon arriving at the spraying location, unfold the boom extensions (1) (Figure 3). 12. Engage the pump by turning on the power switch (2) (Figure 2, pg 5), open the Boom Control valve (1) (Figure 1, pg 9). -
Page 11: Following Operation
Operating Instructions Following Operation Remove tank drain cap, and empty sprayer tank. Empty Replace drain cap and run fresh, clean water through remaining solution into an appropriated container for proper pump, sprayer wand and all hoses thoroughly. disposal. Once the tank is empty, wipe out inside of sprayer tank Thoroughly rinse the sprayer of any chemical residue. -
Page 12: Winterizing Your Sprayer
Maintenance Instructions Routine Maintenance Cleaning the spray nozzle • Remove spray nozzle (1) (Figure 2) from sprayer. • Disassemble filter (2) and spray tip (3). NOTE: Do not use a wire to clean opening (3) in spray tip. • Wash filter and spray tip in a non-flammable solvent. •... -
Page 13: Troubleshooting
Troubleshooting As you use your sprayer, it is possible that you will encounter minor problems that can be easily fixed. The following problems and respective causes and solutions should cover most of the potential problems that you may face. If you are having problems please attempt to use this troubleshooting section to solve the problem. -
Page 14: Breakdowns And Parts Lists
Breakdowns & Parts Lists Base Unit Breakdown... -
Page 15: Base Unit Parts List
Breakdowns & Parts Lists Base Unit Parts List Ref# Qty. Part Number Description 10416D Strainer, Suction 3/8" FPT 40 Mesh T1416 Tank, 25 Gal Blow Molded Yellow w/Lid 11042 Gasket, EPDM for 5" Lid 3323-1E1-82B * Pump, 2.2 gpm, Demand, 60psi, 3/8" FPT ports 38027 Cap, Nozzle Tip/barb 11/16-16 UNF Poly 3A3838... -
Page 16: Pump Breakdown & Parts List
Breakdowns & Parts Lists Pump Breakdown & Parts List Model: 3323-1E1-82B Complete Pumphead Assembly PART NUMBER DESCRIPTION Ref # Qty. Part Number Description LHA7863-7F77 Lower Housing Assembly 7880-7F77 1GPM THREADED W/ PRESSURE SWITCH VHA7863-7F77 Valve Housing Assembly UHA7880-7F77 Upper Housing Assembly, Threaded with Pressure Switch 7880-8E77 1GPM THREADED W/ BYPASS... -
Page 17: Cropcare® Limited Warranty
® CropCare Limited Warranty Model #: LGX25-2 Warranty Coverage ® ® CropCare hereby provides a Limited One (1) Year Warranty on LGX Sprayers, manufactured by CropCare . LGX Sprayers manufactured ® by CropCare are warranted against any manufacturer’s defects in any of the sprayer’s components in the 12 months following the original date of purchase. - Page 18 Manufactured by PBZ LLC A Paul B Zimmerman Inc. Company www.CropCareEquipment.com...
