Index INSTALLATION MANUAL 1- ECOLOGICAL COOLER .......................5 1.1- LOCATION OF PARTS AND COMPONENTS ................6 1.2- TECHNICAL CHARACTERISTICS ....................6 2- MAIN COMPONENTS ......................7 2.1- EVAPORATOR UNIT ........................7 2.2- UPHOLSTERY COVER AND ACCESSORIES ................14 2.3- POWER AND CONTROL MODULE ..................14 2.4- BOARD INDICATIONS .......................17 2.5- UPHOLSTERY COVER ........................18... -
Page 4: 1- Ecological Cooler

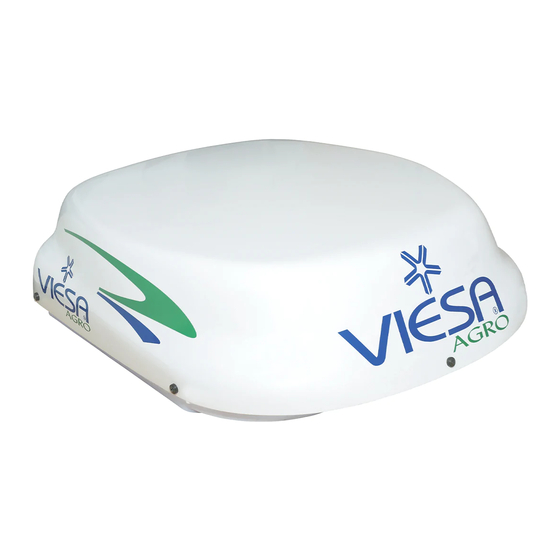

1- ECOLOGICAL COOLER Function VIESA Agro is a roof mounted cab cooler that delivers cool air to the vehicle's cabin using evaporative cooling and without running the vehicle's engine. Operation Cooling is generated by vaporized cool water delivered by a self-contained electrical motor. -
Page 5: Location Of Parts And Components
1.1- LOCATION OF PARTS AND COMPONENTS EVAPORATOR UNIT UPHOLSTERY COVER WITH DISPLAY CONSOLE ELECTRICAL AND HYDRAULIC CONNECTIONS WATER TANK 1.2- TECHNICAL CHARACTERISTICS Full remote control. Aerodynamic external design Evaporator unit cover with UV protection Adjustable upholstery cover. 8- speed turbo blower Distribution air ducts with airtight closure. -
Page 6: 2- Main Components
2- MAIN COMPONENTS The equipment consists of an evaporating unit, electrical and hydraulic connections, an upholstery-cover and a water tank with pump. Important: Vehicle with equipment installed must not exceed maximum allowed height 2.1- EVAPORATOR UNIT 82 CM. - Page 7 EVAPORATOR UNIT COVER AIR FILTER EVAPORATOR EVAPORATOR TRAY TANK POWER MODULE BITURBO BLOWER BASE COVER OF THE EVAPORATOR UNIT AIR FILTER Prevents dust, dirt and unwanted particles to reach the evaporator.
- Page 8 EVAPORATOR Composed of two even distributed layers of special wood shavings. EVAPORATOR TRAY TANK This element works as a water deposit and it collects the excess water that the evaporator receives. It allows the return of excess water to the water tank. LEVEL SENSOR Its function is to monitor permanently the presence of water in the tank, activating the water pump when the level is low.
- Page 9 INSTALLATION PROCDURE Units Without Hatch EVAPORATOR UNIT WEATHER STRIP UNIT’S ROOF STEEL FRAME FOR ROOF WITHOUT HATCH PLASTIC NUT FOR UPHOLSTERY COVER ADJUSTING SCREWS FOR THE EVAPORATOR UNIT WASHER UPHOLSTERY COVER ADJUSTING AIR GRILLE UPHOLSTERY COVER SCREWS ADJUSTING GRILLE SCREWS DO NOT CUT ROOF OVER REINFORCING CHANNELS...
- Page 10 Use Viesa`s Interior and Exterior Templates to cut the roof openings. a.1) Determine the suitable place where the evaporator unit will be placed. a.2) Mark the openings to be cut. a.3) Check from the inside that no reinforcement channels or electrical wires will be cut.
- Page 11 Units with Hatch EVAPORATOR UNIT WEATHER STRIP UNIT’S ROOF NUTS ADJUSTABLE ROOF SUPPORT PLASTIC NUT FOR UPHOLSTERY COVER ADJUSTING SCREWS FOR THE EVAPORATOR UNIT WASHER UPHOLSTERY COVER AIR GRILLE ADJUSTING UPHOLSTERY COVER SCREWS ADJUSTING GRILLE SCREWS a) Remove the original hatch. b) Glue the weather strip to the base of the evaporator.
- Page 12 e) Place the adjustable roof supports in the interior against the ceiling. f) Use the 4 screws (changeable length in accordance with the thickness of the ceiling) and tighten until the weather strip is compressed to 10 mm. approximately. Note: If there is enough space, use a nut and locking nut between the underside of the roof and the base of the evaporator unit.
-
Page 13: Upholstery Cover And Accessories
2.2- UPHOLSTERY COVER AND ACCESSORIES WEATHER STRIP FOR AIR DUCT AND GRILLE AIR DUCT REDUCING WEATHER STRIP SUPPORT WEATHER STRIP ADJUSTABLE ROOF SUPPORT UPHOLSTERY POWER AND COVER CONTROL MODULE TOUCH-PAD CONTROL GRILLES REMOTE CONTROL 2.3- POWER AND CONTROL MODULE It allows the following operations: To change the speed of the biturbo blower (up to 8 speeds) To control the water pump cycles. - Page 14 TECHNICAL CHARACTERISTICS TECHNICAL CHARACTERISTICS a) Protection for polarity reversal. Protection for high voltage c) Short-circuit protection in the water pump and in the biturbo fan and/ or in its corresponding electrical connections. d) Automatic disconnection due to lack of water in the tank. e) Working tension: 12 volts f) Auto switch off for low battery tension Note: voltage is monitored at the battery terminals.
- Page 15 Water Cycle Setting Very important: It is necessary to select one of the 3 setings for the water cycle and according to the height of the water column. Without this setting the power and control module will not work. Evaporator Unit WATER COLUMN WORKING TIME USE KEY N°...
-
Page 16: Board Indications
2.4- BOARD INDICATIONS Important: before switching on the equipment: With parked vehicle: Open one of the windows 2 to 3 cms. With the vehicle in motion: Open one of the windows 2 to 3 cms and close all other air entrances to the cabin so that hot air does not enter from exterior. BOARD REMOTE CONTROL... -
Page 17: Upholstery Cover
2.5- UPHOLSTERY COVER INSTALLATION PROCEDURE 1- Insert the weather strips into the evaporator`s base openings and push the air ducts (burr up) through the weather strips making pressure until they are firmly placed . Important: Cut the air ducts if needed. Air ducts 240 mm high can be ordered for very thick ceilings. - Page 18 Note: Tie and stick the electrical installation to the upholstery cover with the provided tie. 6- Place the upholstery cover with the display oriented to the front of the cabin. 7- Affix the upholstery cover with the 4 screws (without tightening.
-
Page 19: Water Tank
2.6- WATER TANK WATER TANK MODELS There are two models: Standard: 32 litres. Dimensions: 64 x 52 x 13,5 cm. Small: 20 litres. Dimensions: 64 x 35 x 13,5 cm. Made of a non translucent material which assures darkness inside and prevents fungi formation on the interior walls. - Page 20 INSTALLATION a) at the back of the cabin. b) in the chassis. note: Do not place it near the exhaust pipe . Placing the tank horizontally (a) is preferred. Use vertical placement (b) only if not possible to place it horizontally.
- Page 21 VERY IMPORTANT: NEVER APPLY TANK TO CABINS WITHOUT REIFORCEMENTS INSIDE REINFORCEMENTS WATER TANK SUPPORT PLATE VEHICLE CABIN THREADED RIVET (PUT IT IN THE LINE OF WELDING- REINFORCEMENT CHANNEL) POLYESTER FOAM WASHER GROWER WASHER ALUMINUM SPACER SCREW WASHER...
- Page 22 Identify the place on the rear part of the cabin where the tank will be installed. Use the support plate to mark the points of attachment to the cabin. ALLWAYS OVER THE WELDING LINES prove with a 5 mm. diameter drill bit and then perforate with a 9 mm. drill bit. 9 mm.
- Page 23 Important: Use adequate separators to compensate uneven surfaces. Before attaching the support plate to the cabin, set the tank's fixing screws and washers provided. Attach the support plate firmly. When using the water tank on vertical position; you have to make 3 holes of 22 mm.
-
Page 24: Water Tank Support (Optional)
- For draining , at the bottom of the water tank and on the same side of the water tank cap. Important: Remove shavings. SEAM INSERT DRAIN PLUG Place the water tank adjusting it with the band Once they have been adjusted manually, fix the locknut. Note: If the band does not adjust the tank correctly, remove the locknut and place it behind the fixes band. - Page 25 2.7 - WATER TANK SUPPORT (OPTIONAL) Depending on the vehicle, the water tank support can be placed parallel or perpendicular to the chassis frame. Never drill the frame’s flange. Additional “U” channel pieces may be necessary. ADDITIONAL U-SHAPED SUPPORT...
-
Page 26: Water Pump
2.8- WATER PUMP Technical Characteristics a) Centrifugal - Sealed b) Consumption: 4 A. Installation POSITION HORIZONTAL Screw the pump directly to the tank’s opening, according to the picture. Make sure that the rubber gasket seats correctly against the tank’s wall. POSITION VERTICAL Important: Before adjusting the pump completely,insert the shorter length of the preformed hose to the pump’s output nipple. -
Page 27: Level Sensor
2.9- LEVEL SENSOR Controls the water pump operation. Introduce the level sensor according to the figure. Keep the marked arrow “UP”. Use the provided rubber gasket. 2.10- WATER PUMP COVER To place the water pump cover insert first one of the holes in the water tank pin an then, manually, insert the second hole. -
Page 28: 3- Connections
3- CONNECTIONS 3.1- HYDRAULIC THIS VALVE MUST BE INSTALLED BELOW THE THE UPPER EDGE OF THE WATER TANK. IN TILT CABINS OR WATER TANKS INSTALLED ON THE CHASSIS THE VALVE MUST BE INSTALLED AT MORE THAN 1 M BELOW THE EVAPORATOR'S LOWER EDGE. Note: cut the tubes accordingly. -
Page 29: Electrical
3.2- ELECTRICAL POWER MODULE 5-WAY SOCKET YELLOW BLACK BLACK BROWN BROWN POWER AND CONTROL MODULE BLACK BITURBO BLOWER ANTIPARASITIC FILTER FUSE 15A IMPORTANT: THE FUSE HOLDER MUST REMAIN OUTSIDE THE BATTERY COMPARTMENT BATTERY WATER LEVEL SENSOR (POLARITY FREE) WATER PUMP Very Important: The fuse must be installed at the end. - Page 30 ATTACHING THE ELECTRICAL AND HYDRAULIC CONNECTIONS Use the self-adhesive tie bases and plastic ties provided to attach the electrical and hydraulic connections from the evaporator down to the water tank. Note: Clean the surface where the adhesive will be placed. 30 CM...
-
Page 31: 4- Units With Tilt Cabins
4- UNITS WITH TILT CABINS a) With Water Tank Applied to the Cabin. Note: The power supply must be direct from the battery or the main switch. SET OF ELECTRICAL AND HYDRAULIC CONNECTIONS ELECTRICAL INSTALLATION ORIGINAL MAIN SWITCH b) With Water Tank Applied to the Chassis SET OF ELECTRICAL AND HYDRAULIC CONNECTIONS DUAL RESTRICTION... - Page 32 Wires to the water tank and battery must be extended. See detail below. TO THE EVAPORATOR UNIT DUAL RESTRICTION VALVE BLACK YELLOW TO THE BATTERY YELLOW-R BLACK QUICK CONNECTION TO THE WATER TO THE WATER PUMP PUMP AND LEVEL SENSOR...
-
Page 33: 5- Recommendations To The Installer
- Wet the evaporator immediately after installation in order to fast start cooling. - Clean the working area. - Provide the owner with the Viesa User's Manual and warranty information. - Explain the user the operation and maintenance of the equipment in detail. - Page 34 Every 2 months or according to working conditions: - Submerge the evaporator in water with bleach (1). - Clean the grids of the air entrances (2). - Clean the filter of the collector tray (3). - Clean the air filter with air gun (4). Do not moisten the air filter.
-
Page 35: 7- Replacement Of The Main Components
7- REPLACEMENT OF THE MAIN COMPONENTS REPLACEMENT OF THE MOTOR OF THE BITURBO BLOWER Remove the cover of the evaporator unit fixed with 5 screws. Remove the evaporator. Remove the two turbines' covers taking away the 8 screws. Remove the 4 screws of the blower mounting bracket and remove it. Replace the motor making the corresponding electrical connection. - Page 36 REPLACEMENT OF THE POWER MODULE Remove the cover of the evaporator unit. Remove the 2 screws holding the power module to the base. Change the power module and reconnect. Reinstall the cover of the evaporator unit. REPLACEMENT OF THE EVAPORATOR OR AIR FILTER Remove the upper cover, after removal of the 5 screws.
- Page 37 REPLACEMENT OF THE POWER AND CONTROL MODULE Remove the air grilles and upholstery cover. Disconnect the electrical installation and the ribbon cable from the module. Remove the module unlocking the 3 locking pegs. Locate the switch commanding the water cycle in the new module and set it.
-
Page 38: 8- Failure Location Guide
8- FAILURE LOCATION GUIDE EQUIPMENT WITH LOW EFFICIENCY Check: WATER PUMP PERFORMANCE AND ELECTRICAL CONNECTIONS a) Remove the upper cover. b) Remove the water hose from the evaporator. c) Using a container with a cm scale on it, turn on the pump and collect the water for one cycle, which should be between 800 cm (minimum) and 1500 cm3 (maximum). - Page 39 The restriction valve is not clogged and that water flows freely OUTLET CLOGGED (NO RESTRICTION) trough the outlet. The water pump supply voltage is correct: 9.8 V minimum. Important: Measure at the pump's connector with the pump working and the turbo blower at maximum speed. The water pump consumption (Amp) is between the specified values: between 3.7A and 6.0A (with water running through).
- Page 40 If the water collected is above the maximum, check that: (NO RESTRICTION) CLOGGED OUTLET The restriction valve is not clogged and that water returns freely trough the outlet. The switch commanding the water cycle is properly set. (See Water Cycle Setting before) EVAPORATOR ASSESSMENT Manually pull up the evaporator and with the water pump working, check that water is distributed evenly around the evaporator.
- Page 41 Verify that evaporator and air filter are not dirty or lacking wooden chips. Verify that electrical connections are rightly performed. Verify the biturbo blower input voltage: 9.5 V minimum. Important: Measure at the biturbo blower pins and when it is working and the water pump is working.
- Page 42 SOLUTIONS POSSIBLE CAUSES PROBLEM HYDRAULIC HYDRAULIC 1- Inverted electrical connections 1- Connect correctly: Red (+) of water pump/s. and black (-). The indicators are ok, but the 2- Evaporator 9 x 15 cm hose 2- Modify. equipment has low efficiency. blocked.
- Page 43 SOLUTIONS PROBLEM SOLUTIONS POSSIBLE CAUSES The equipment works well, but 1- Short-circuit in the blower or 1- Replace the blower or repair. the fuse burns out continuously. in its connections. 2- Short-circuit in the water 2- Replace the water pump or pump or its connections.
- Page 44 INSTALLATION MANUAL VIESA AGRO REVISION 003 1-2012 P.O.Box 1352 – 1500 Avenue Road Toronto, Ontario M5M 0A1 CANADA Ruta 11 Km.814 - Guadalupe Norte Prov. de Santa Fe (S3574XAB) ARGENTINA ORDER ON-LINE www.viesa.ca / 1-888 438-8444...
