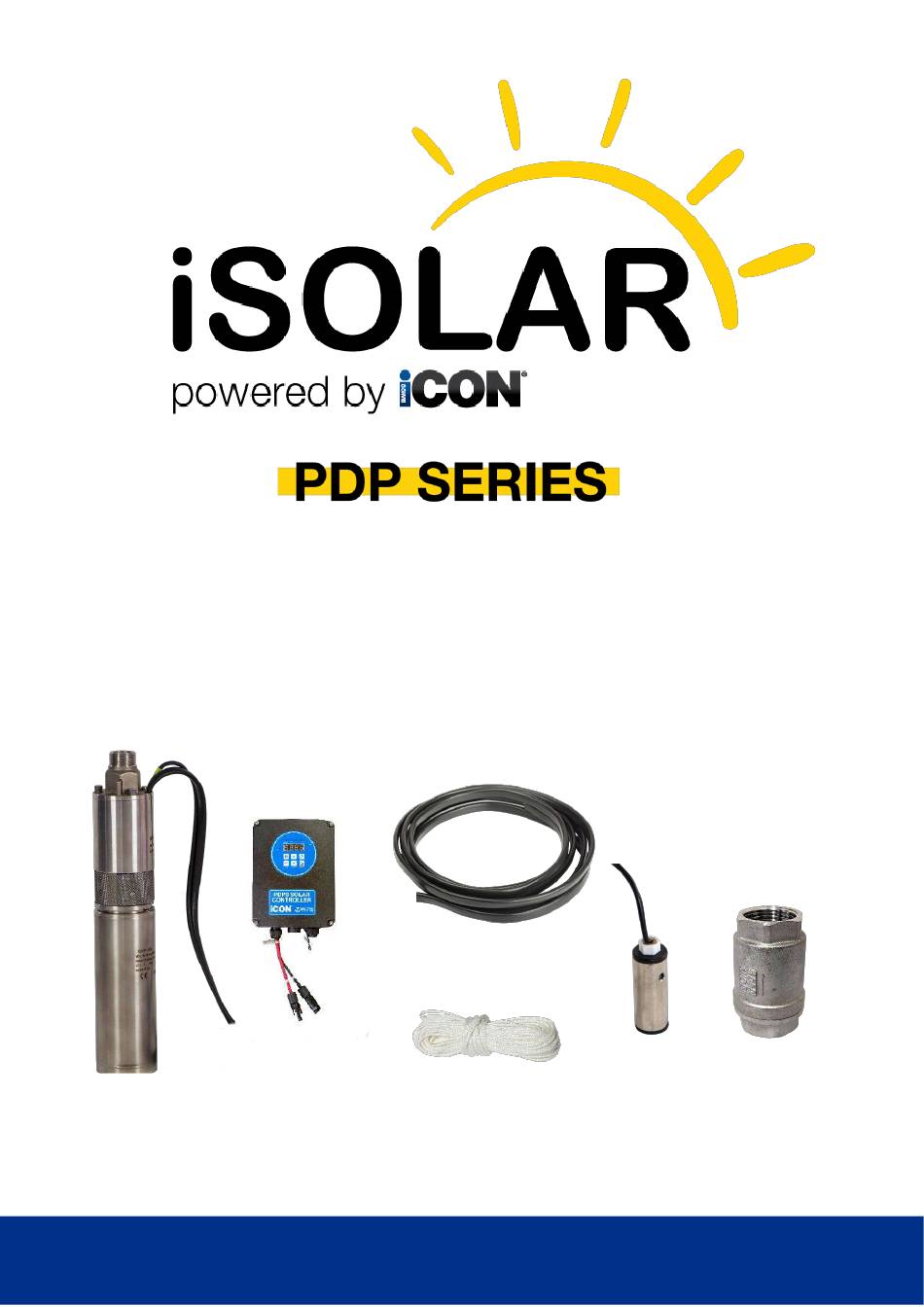

Auto Restart Pump Controller
3" Helical Solar Pump Complete Solution Kit
808691 - BIA-PDP3 SOLAR250
808692 - BIA-PDP3 SOLAR370
808694 - BIA-PDP3 SOLAR750
Kit includes:
30 meters cable
iCON PDP3
Float/Level
Nylon safety
Solar Controller
Non-return
Switch with
Brushless
rope
valve
30 meters cable
submersible
helical motor
iCON iSOLAR 3" PDP Instruction Manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICON iSolar PDP Series
Summary of Contents for ICON iSolar PDP Series
- Page 1 808691 - BIA-PDP3 SOLAR250 808692 - BIA-PDP3 SOLAR370 808694 - BIA-PDP3 SOLAR750 Kit includes: 30 meters cable iCON PDP3 Float/Level Nylon safety Solar Controller Non-return Switch with Brushless rope valve 30 meters cable submersible helical motor iCON iSOLAR 3” PDP Instruction Manual...
-
Page 2: Table Of Contents
13. Warranties – Terms and Conditions ..............15 2. ISO 7010 Symbols used in this manual Warning - Electrical safety Warning – Potential consequences of use outside of intended application(s). Includes environmental condition warnings. Mandatory warning Warning to disconnect power Read carefully iCON iSOLAR 3”PDP Instruction Manual... -
Page 3: Introduction
3. Introduction Welcome to the iCON iSOLAR revolution! The 3” helical rotor iSOLAR PDP3 range provides a ‘plug and play’ kitset solution that requires only moderate DIY skills to install and has little ongoing maintenance requirements. The iSOLAR PDP3 can be installed down a bore, in a tank or fitted to a pontoon to supply from an open body of water. -
Page 4: Warnings And Cautions
Children should be supervised to ensure that they do not play with the appliance. iCON iSOLAR 3”PDP Instruction Manual... -
Page 5: Kit Contents And Technical Specifications
3 OR 4 x 300W in 80 – 150V PDP3 750 808694 0.75kW / 1hp 140m 180V series Solar array recommendation indicative only Solar inputs must respect the Voc and Max Current (Amperage) values iCON iSOLAR 3” PDP Instruction Manual... -
Page 6: Electrical Connections
The controller is IP65 rated. It should not be exposed to direct sunlight. Install the controller where it has excellent ventilation and away from direct sunlight or exposure to adverse weather. Installation inside a separate open fronted enclosure is suggested. FLOAT REVERSE ACTING PRESSURE SWITCH iCON iSOLAR 3”PDP Instruction Manual... - Page 7 Fitting additional panels or incorrectly rated panels will cause serious harm or irreparable damage to the controller and motor voiding warranty iSOLAR PDP3-250 power is supplied by a single panel. iSOLAR PDP3 models 370 and 750 - panels must be wired in series. iCON iSOLAR 3” PDP Instruction Manual...
-
Page 8: Display
DIGITAL DISPLAY Displays alpha numeric fault codes and operating values Used to enter the programming mode UP AND DOWN Used to increase or decrease program parameters ARROWS ENTER (OK) Used to accept a programming change iCON iSOLAR 3”PDP Instruction Manual... -
Page 9: Alarm Parameters And Meaning
Input power may be too low. The wet end may be Power shortage or stall jammed or connected abnormally. Disconnect from power, inspect and clean. ALARM Polarity error Input power positive / negative wiring error iCON iSOLAR 3” PDP Instruction Manual... -
Page 10: Installation
11. Installation iCON iSOLAR 3”PDP Instruction Manual... - Page 11 Never install borehole submersibles in a crooked bore without first lowering a gauge which is the same diameter and length as the pump to be used into the bore. If the gauge does not bind, it is safe to install the pump. iCON iSOLAR 3” PDP Instruction Manual...
- Page 12 Install the controller where it is shielded from adverse weather and out of direct sunlight. Mounting in the lee of the array or inside an additional enclosure is recommended. • Earth the controller body to ground. iCON iSOLAR 3”PDP Instruction Manual...
- Page 13 (tank full) and the pipe pressure rises • When the switch circuit stops the pump running, the LED on the controller labelled ‘TANK’ will illuminate. When the float or pressure switch circuit opens again pump operation will re-commence immediately. iCON iSOLAR 3” PDP Instruction Manual...
-
Page 14: Operation Summary
If for any reason the pump has a fault, or the unit is protecting itself, the controller will display the appropriate alarm code. The codes are listed in Section 10, Page 9. To suspend operation press the ON/OFF button on the controller. iCON iSOLAR 3”PDP Instruction Manual... -
Page 15: Warranties - Terms And Conditions
Zealand. 8) Our warranty commences from the date of purchase of the above-mentioned pumps. Proof of purchase is required before consideration under warranty is given. Record your date of purchase in the space below and retain this copy for your records. Date of Purchase ..........Model Purchased ..........iCON iSOLAR 3” PDP Instruction Manual... - Page 16 For any queries regarding use of the contained information please feel free to contact White International Pty Ltd. iCON iSOLAR 3”PDP Instruction Manual...
