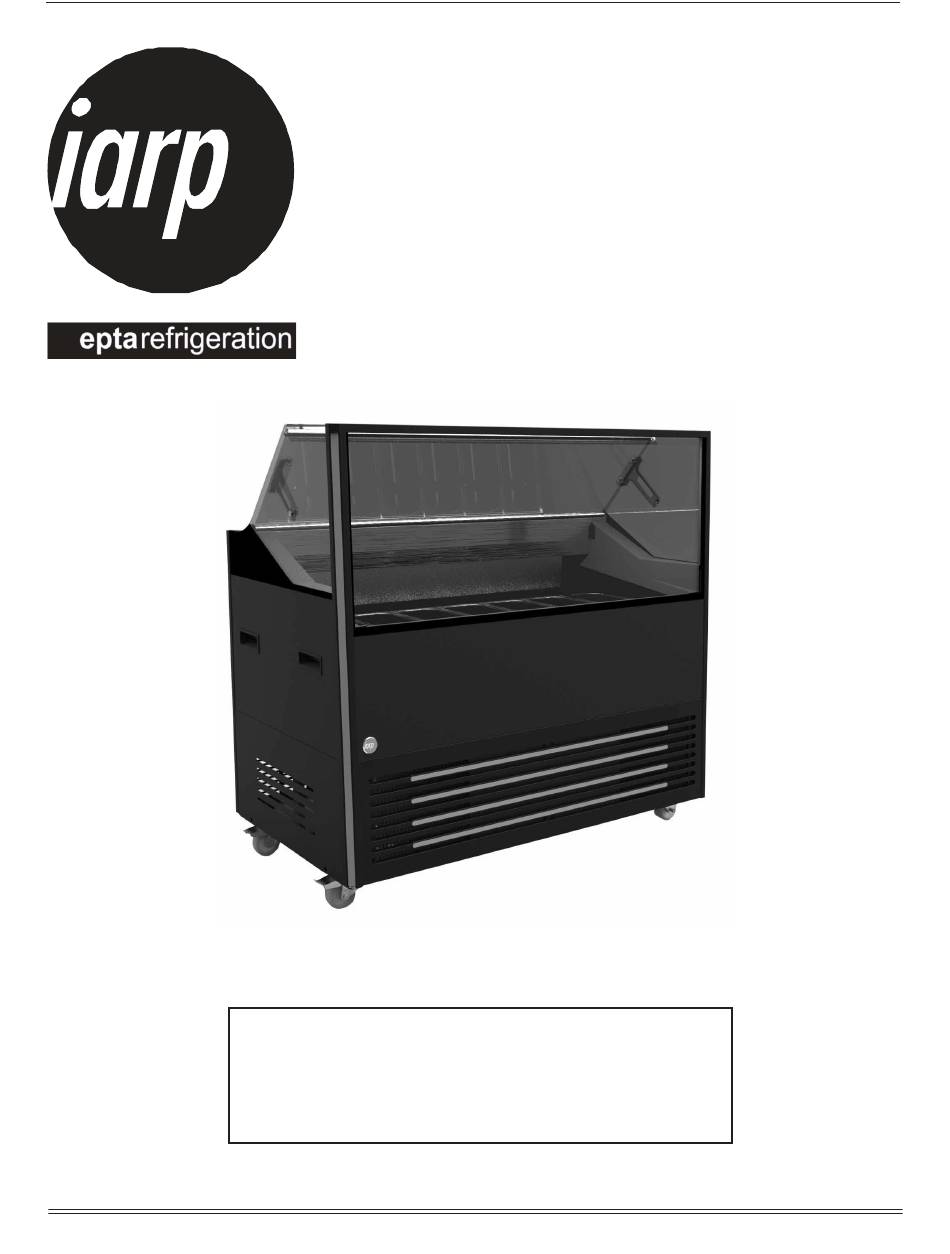

- Page 1 USE AND MAINTENANCE DELIGHT LITE DELIGHT PRIME Cod. 0008517...
- Page 2 This manual was drafted in a simple and rational manner to allow you to fully understand your equipment. You are advised to read the content carefully and keep it with the equipment. The manufacturer cannot be held in any way liable for damage caused to people or property due to non-compliance with warnings contained in this manual.
-
Page 3: Symbols In The Manual
SYMBOLS IN THE MANUAL This manual was drafted in a simple and rational manner to allow you to fully understand your equipment. You are advised to read the content carefully and keep it with the equipment. The manufacturer cannot be held in any way liable for damage caused to people or property due to non-compliance with warnings contained in this manual. - Page 4 1. SAFETY 1.1 SAFETY WARNINGS FOR THE APPLIANCES USING R290 COOLING FLUID (PROPANE) Propane is a natural gas that doesn’t affect the environment but is inflammable. It is therefore essential to ensure that all refrigerant pipes are not damaged before connecting the appliance to the mains supply.
-
Page 5: Safety Information
1.3 SAFETY INFORMATION Read the manual carefully and adhere to the contents before installing and using the appliance. Always keep the instructions manual safe and if the appliance is sold, hand it over to the new owner. This equipment is very dangerous if left exposed to rain, thunderstorms or bad weather with the power cable plugged into the power socket. -
Page 6: Overall Description

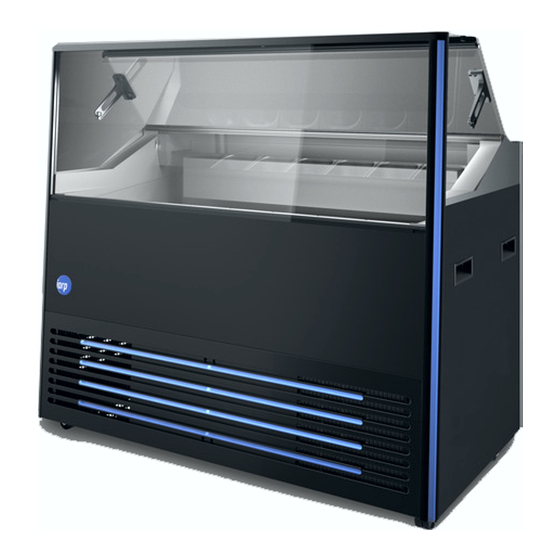

2. OVERALL DESCRIPTION TEMPERED PANORAMIC FRONT GLASS HANDLES (if present) FRONT GRID WITH LIGHT GUIDE COMPARTMENT LED STRIP (Only on the PRIME version) SWIVEL WHEELS WITH BRAKE IDENTIFICATION DATA PLATE DROP-LEAF GLASS WORK SURFACE NDLES present) LATERAL GRID RESERVE TANK SWIVEL WHEELS WITH BRAKE COMMAND PANEL REAR GRID... -
Page 7: Technical Specifications
3. TECHNICAL SPECIFICATIONS 1178(Delight 6) - 1328 (Delight 7) - 1663 (Delight 9) 1103 (Delight 6) - 1253 (Delight 7) - 1588 (Delight 9) R 145 * 612 * 634 727 CABINET 11174 - 1324 1659 CABINET DELIGHT 6 CABINET DELIGHT 7 - CABINET DELIGHT 9 DELIGHT External dimensions (Width x depth x High) (mm) -
Page 8: Notes And Warnings
4. NOTES AND WARNINGS The content of this manual is technical and the property of EPTA s.p.a. It is forbidden to reproduce, distribute or modify entirely or partially its content without written authorization. The owner company safeguards its rights pursuant to legislation in force. The company cannot be held in any way liable for any damage to people, animals or the product conserved in the event of: •... -
Page 9: Installation
6. DISPOSAL OF USED MATERIALS IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service. -
Page 10: Selecting The Place Of Installation
7.2 SELECTING THE PLACE OF INSTALLATION In selecting the place of installation, ensure that the following instructions are observed, this being vital for proper and trouble-free working of the cabinet: • Do not install the cabinet outdoors. • Do not install the cabinet in the vicinity of heating radiators or other heat sources. •... -
Page 11: Further Information
7.4 LOADING It is fundamental not to exceed the load limits indicated to avoid altering correct air circulation and thereby avoid a higher product temperature. 7.5 FURTHER INFORMATION Take out packaging and clean all the cabinet using warm water together with 5% of neutral soap then dry it with a soft cloth;... -
Page 12: Putting Into Operation
7.6 OPENING THE DROP-LEAF GLASS To open and close the display compartment, vertically slide the drop-leaf glass on the rear of the equipment. Ensure perfect closure as incorrect closure would have a negative impact on the performance of the equipment and on the excessive build-up of ice on the inner walls. -
Page 13: Maintenance
8. MAINTENANCE WARNING! ANY WORK CARRIED OUT ON THE APPLIANCE BY THE USER STRICTLY REQUIRES THE POWER PLUG BEING DISCONNECTED FROM THE MAINS SOCKET. The equipment manager is obliged to check and comply with the maintenance deadlines in the table indicated below. - Page 14 9.2 INNER CLEANING These units make an automatic defrosting in the displaying tank. The storage compartment should be defrosted when frost on the walls has a thickness of more than 5 mm. We recommend to make the defrosting of storage compartment and, at the same time, the cleaning of displaying tank;...
- Page 15 11. MALFUNCTION AND REMEDIES Most of the functioning inconveniences are generally due to simple causes or to defective electrical connections. These problems can usually be solved on site. THE UNIT DOES NOT START SOLUTION CAUSE AUTHORISED STAFF Check that the unit is properly plugged Insert the plug User Check that the unit is properly plugged...
- Page 16 13. DELIGHT LITE WIRING DIAGRAM DEVICE Electronic control Compressor Plug cable Transformer fuse Inner tank led Led power supply unit Capacitor motorised fan Defrost end probe Temperature probe Right side resistor Left side resistor Work surface resistor Glass resistor Isolation transformer Defrost valve -18-...
- Page 17 14. DELIGHT PRIME WIRING DIAGRAM DEVICE Electronic control Compressor Plug cable Transformer fuse Inner tank led LDDEC Decorations Led Led power supply unit Capacitor motorised fan Defrost end probe Temperature probe Right side resistor Left side resistor Work surface resistor Glass resistor Isolation transformer Defrost valve...
- Page 18 DISPENSER WASH ASSEMBLY (Optional) To assemble the dispenser wash, proceed as follows: Screw in the dispenser wash support (A) with the dispenser wash (B) using the screw (C) on the back of the equipment. With water recirculation: • Fasten the water filling joint (3) with the incorporated valve, positioned as in the illustration, to the tank (2) using the fastening nut (4);...
