Summary of Contents for entegris Optimizer ST2

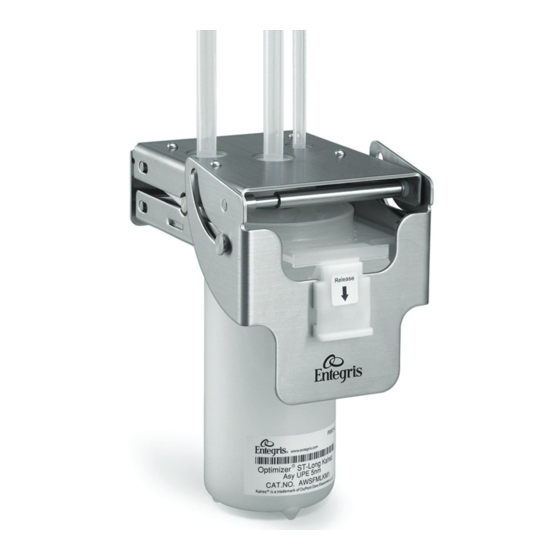

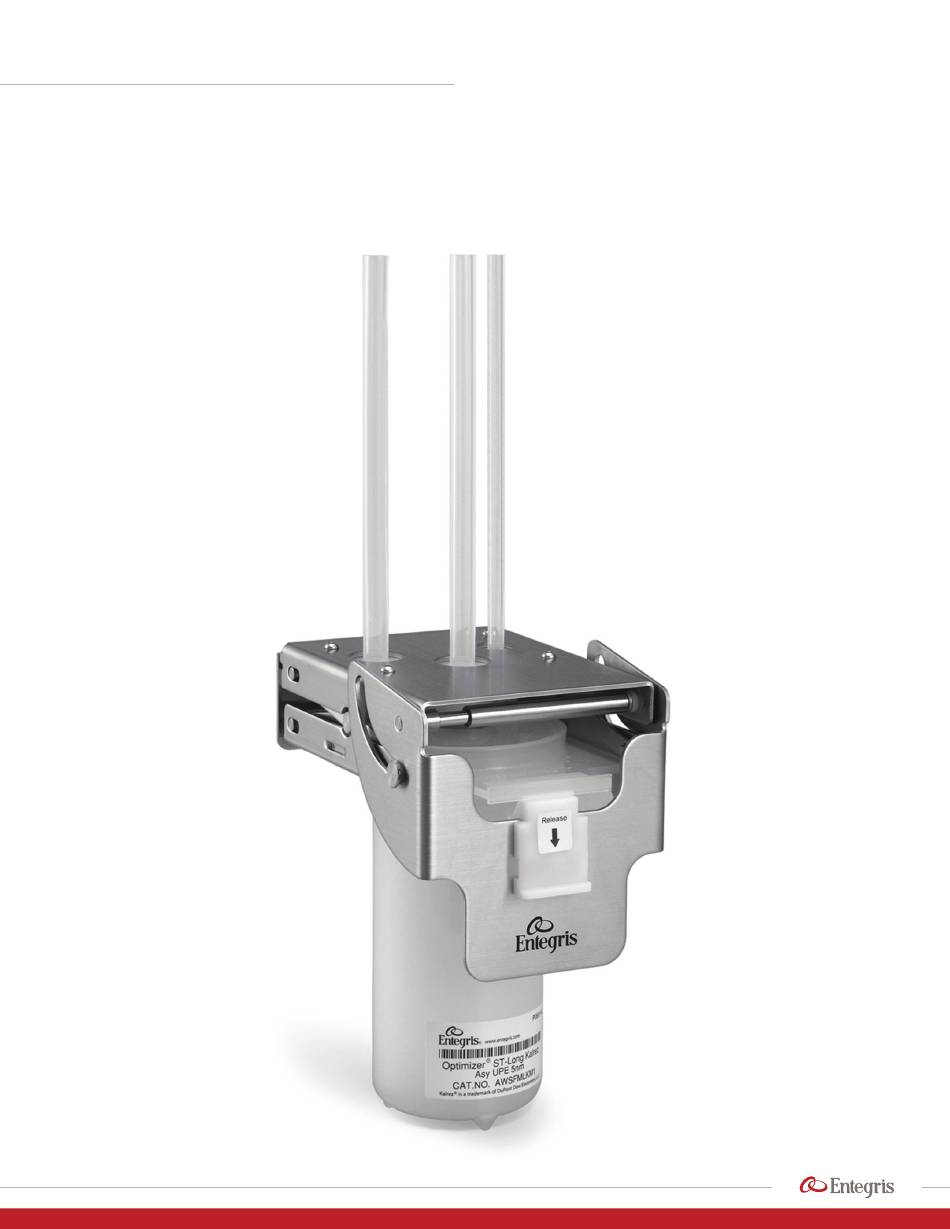

- Page 1 MICROCONTAMINATION CONTROL MANUAL Optimizer ST2 Filter Manifold ® Installation and use manual...
-
Page 2: Table Of Contents
Introduction ............... 2 Preparation for Installing the Optimizer ST2 Manifold ..........11 Specifications ..............2 Installing the Optimizer ST2 Manifold ...... 12 Ordering Information ............. 2 Attaching and Removing the Filter ......16 Manifold and Filter Parts ..........3 Preparing the Line Before Replacing the Filter ..16 Dimensions ................ -
Page 3: Introduction
Kalrez O-ring for ST2 manifold 40°C (104°F) OM version, 10/bag CAUTION: If higher pipeline tension is expected, it is recommended to use a double O-ring combination of the OM manifold and OF filter. Installation and Use Manual | Entegris, Inc. -
Page 4: Manifold And Filter Parts
OPTIMIZER ST2 FILTER MANIFOLD MANIFOLD AND FILTER PARTS — Outlet Inlet Vent Release tab Lever Filter Filter guide Manifold Entegris, Inc | Installation and Use Manual... -
Page 5: Dimensions
62.0 mm (2.44") 139.1 mm (5.48") 104.5 mm (4.11") 205.0 mm (8.07") Front View Side View 150.0 mm (5.91") 32.4 mm (1.27") 102.8 mm 126.0 mm (4.05") (4.96") 174.0 mm (6.85") 16.0 mm (0.63") Installation and Use Manual | Entegris, Inc. -
Page 6: Flowell 60 Elbow Type Manifold Part Number Amvxl22Kt
139.1 mm (5.48") Outlet 104.5 mm (4.11") 205.0 mm (8.07") Front View Side View 60.0 mm ± 2 mm (2.36" 32.4 mm ± 0.08") (1.27") 102.8 mm (4.05") 174.0 mm (6.85") 16.0 mm (0.63") Entegris, Inc | Installation and Use Manual... -
Page 7: Part Number Amvxl32Kt
± 2 mm 78.0 mm ± 2 mm (3.86" 60.0 mm ± 0.08") ± 2 mm (3.07" ± 0.08") (2.36" 32.4 mm ± 0.08") (1.27") 102.8 mm (4.05") 174.0 mm (6.85") 16.0 mm (0.63") Installation and Use Manual | Entegris, Inc. -
Page 8: Part Number Amvxl42Kt
± 2 mm 78.0 mm ± 2 mm (3.86" 60.0 mm ± 0.08") ± 2 mm (3.07" ± 0.08") (2.36" 32.4 mm ± 0.08") (1.27") 102.8 mm (4.05") 174.0 mm (6.85") 16.0 mm (0.63") Entegris, Inc | Installation and Use Manual... -
Page 9: Flowell 80Ex Elbow Type Manifold Part Number Amvzl22Kt
25.3 mm (1.00") (1.00") 40.8 mm (1.60") 62.0 mm (2.44") 139.1 mm (5.48") 104.5 mm (4.11") Front View Side View 85.0 mm ± 2 mm 73.0 mm (3.45" (2.87") ± 0.08") 42.5 mm (1.67") Installation and Use Manual | Entegris, Inc. -
Page 10: Part Number Amvzl32Kt
(5.48") 104.5 mm (4.11") Front View Side View 98.0 mm ± 2 mm 79.0 mm 89.0 mm ± 2 mm (3.86" 73.0 mm (3.50") ± 0.08") (3.11" (2.87") ± 0.08") 42.5 mm (1.67") Entegris, Inc | Installation and Use Manual... -
Page 11: Part Number Amvzl42Kt
(4.11") Front View Side View 136.5 mm ± 2 mm 116.5 mm (5.37" ± 2 mm 116.0 mm ± 0.08") 96.0 mm (4.57") (4.59" (3.78") ± 0.08") 73.0 mm (2.87") 42.5 mm (1.67") Installation and Use Manual | Entegris, Inc. -
Page 12: Safety Instructions
CAUTION: Make sure that no load is applied to the connector due to the weight or layout of the pipe. insufficient sealing may result and chemical liquid leakage may occur. Entegris, Inc | Installation and Use Manual... -
Page 13: Installing The Optimizer St2 Manifold
CAUTION: Do not press anywhere other than the designated spring shaft. The shaft may come off and an unexpected accident such as leakage may occur. Installation and Use Manual | Entegris, Inc. - Page 14 4. 5. Return the lower part of the open manifold and push the shaft protrusions from both left and right sides to fit it on the upper part of the manifold. Entegris, Inc | Installation and Use Manual...
- Page 15 CAUTION: Make sure ALL spring shafts are properly engaged. If the tip of the spring shaft is embedded and/or the collar is visible (white part that surrounds spring shaft), the spring shaft is not properly placed. Good Good Installation and Use Manual | Entegris, Inc.
- Page 16 Improper tubing tension may cause an unexpected accident such as chemical leakage. Acceptable tubing tension Improper tubing tension (risk of leakage) 5 N/m 10 N/m In/Out 3/8" Vent 1/4" In/Out 1/2" Vent 1/4" Entegris, Inc | Installation and Use Manual...
-
Page 17: Attaching And Removing The Filter
The shaft may come off and an unexpected accident such as leakage may occur. There is also a safety risk of getting your fingers caught in moving parts, resulting in injury. Installation and Use Manual | Entegris, Inc. - Page 18 OPTIMIZER ST2 FILTER MANIFOLD 2. Grasp the filter or flushing shell tab and slowly pull out the used filter or flushing shell from the filter guide. Entegris, Inc | Installation and Use Manual...
-
Page 19: Attaching The Filter Or Flushing Shell
3. Lower the lever to position 2. If you feel resistance stop lowering the level and confirm the filter is inserted completely. Installation and Use Manual | Entegris, Inc. - Page 20 O-ring tilt and distortion. 4. Ensure no red mark is visible from the back of the release tab (shown with blue arrows); this confirms the level is locked. Entegris, Inc | Installation and Use Manual...
-
Page 21: Filter Startup
CAUTION: Make sure all the spring shafts are properly engaged. See page 14 for detailed check points. Make sure all the fittings and tubing are securely fastened before starting liquid flow. Installation and Use Manual | Entegris, Inc. -
Page 22: Replacing The O-Rings
Also ensure it is not contaminated with dust. CAUTION: Wipe away any chemical following safety guidelines before replacing the O-rings. CAUTION: Make sure that O-rings are properly attached. Improper installation may cause chemical leakage. Entegris, Inc | Installation and Use Manual... -
Page 23: Limited Warranty
LIMITED WARRANTY Entegris' products are subject to the Entegris, Inc. General Limited Warranty. To view and print this information, visit entegris.com and select the Legal & Trademark Notices link in the footer. Entegris does not warrant any failure in the case of customers using unapproved foreign components.
