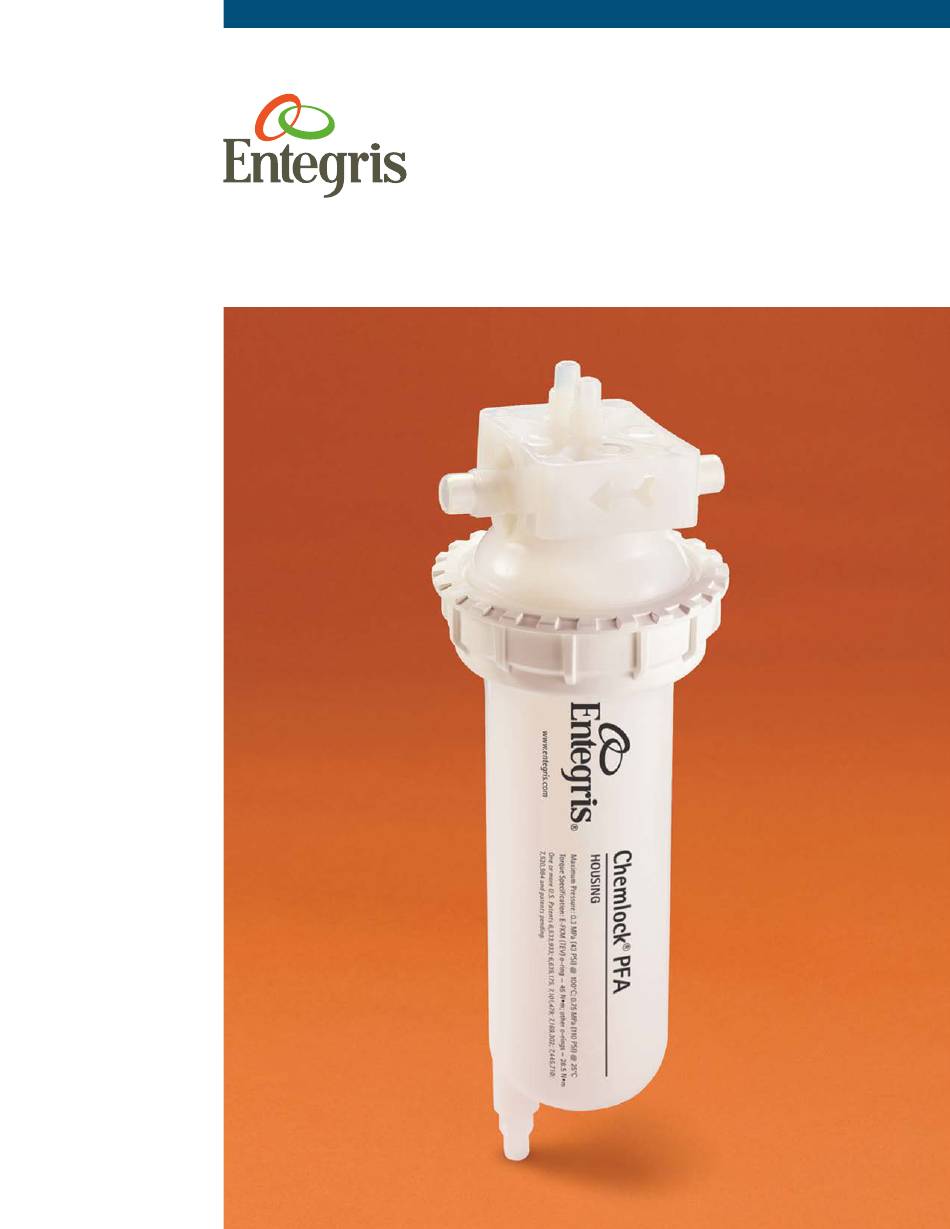

- Page 1 CONTAMINATION CONTROL SOLUTIONS ChemloCk® PFA And PP Filter housings Installation and use manual...
-
Page 2: Table Of Contents
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl Table of Contents Introduction ........2 Safety ..........2 Specifications ........2 PFA ............. 2 PP ............2 Dimensions ........3 Minimum Space Requirements ....3 Installation ........4 Facility Requirements ......4 Mounting .......... -
Page 3: Introduction

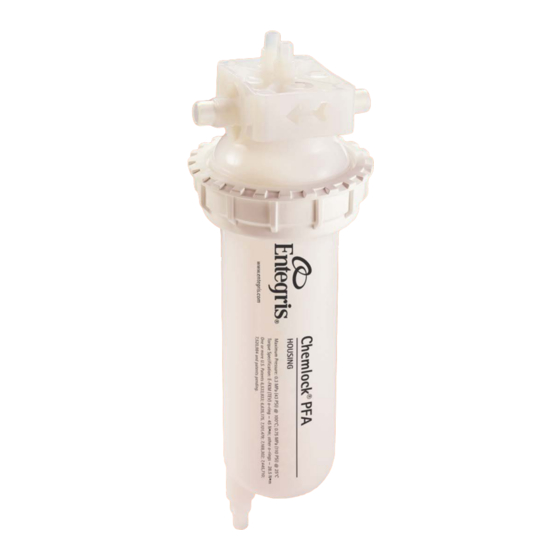

ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl Introduction Entegris’ Chemlock PFA and PP housings offer a ® space-saving solution like no other cartridge filter housing available today. These revolutionary hous- ings lock the cartridge into the bowl, allowing the bowl and cartridge to be removed as a single unit. -
Page 4: Dimensions
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl Dimensions Downstream/ Upstream/ outlet/vent inlet/vent See Chemlock drawing dimension “A” 50.8 mm (2”) Minimum Space Requirements A minimum installation clearance of dimension “A” plus an additional 50.8 mm (2.0”) is required for removal and installation of Chemlock cartridges. -
Page 5: Installation
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl Installation mounting BrACket temPlAte Use Figure 2 as a guide for drilling holes into a customer-supplied mounting plate, when Facility Requirements mounting the Chemlock PFA head. Housing should be plumbed with ability to isolate... - Page 6 ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl PP Housing mounting BrACket temPlAte Use Figure 5 as a guide for drilling necessary Components are double-wrapped for cleanroom use. holes into a customer-supplied mounting plate, Handle components according to your cleanroom procedures.
-
Page 7: O-Ring Installation And Removal
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl O-ring Installation and Removal Replace the o-ring every time the CAutIoN: housing is opened. 1. Verify that the o-ring is installed in the housing. If not, properly seat an o-ring into the housing bowl, as described below. -
Page 8: Filter Installation
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl Install the Filter 4. Attach and tighten the bowl to the housing head. The housing can be mounted in either a bowl Up Install a filter in the housing bowl and tighten or bowl Down position. -
Page 9: Housing Integrity Testing
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl 6. Tighten the housing ring until the torque Housing Integrity Testing wrench clicks. Stop and retighten until Prior to usage, the piping system should be another click is heard. tested to check for leaks. Follow your facility leak checking protocols. -
Page 10: Cartridge Removal
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl Cartridge Removal 4. Turn the cartridge key to unlock the cartridge from the bowl. WARNING: Wear chemically-resistant garments and eye protection during cartridge changeout and startup. 1. Isolate and drain the housing. If necessary, allow the housing to cool to a workable temperature. -
Page 11: Ordering Information
ChemloCk PFA And PP Filter housings instAllAtion And use mAnuAl Ordering Information Chemlock bowls are easily retrofitted to Chemlock cartridges are compatible with the Chemgard housings. Chemlock PFA and Chemlock PP housings. Cartridges can be ordered by adding either a PFA Chemlock bowls are designed to fit with “K”... -
Page 12: Product Warranties
