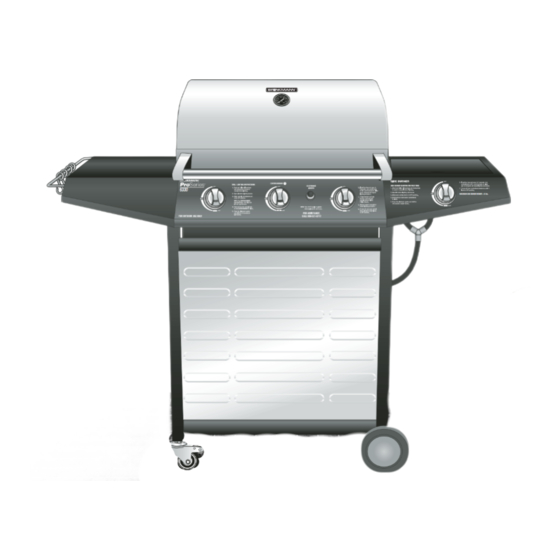

Brinkmann 6330 heavy-duty gas grill owner's manual pro series
Hide thumbs
Table of Contents

Advertisement

Quick Links

ASSEMBLY AND OPERATING INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE
NOTICE TO INSTALLER:
LEAVE THESE INSTRUCTIONS
WITH THE GRILL OWNER FOR
FUTURE REFERENCE.
6330
OWNER'S MANUAL
6330
Heavy-Duty
Gas Grill
WARNING
HAZARDOUS EXPLOSION MAY
RESULT IF THESE WARNINGS AND
INSTRUCTIONS ARE IGNORED. READ
AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS IN THIS MANUAL TO
AVOID PERSONAL INJURY, INCLUDING
DEATH OR PROPERTY DAMAGE.
MAXIMUM SIDE BURNER WEIGHT = 15 lbs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6330 and is the answer not in the manual?

Questions and answers

Related Manuals for Brinkmann 6330

Summary of Contents for Brinkmann 6330

  • Page 1 OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE NOTICE TO INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE GRILL OWNER FOR FUTURE REFERENCE. 6330 Heavy-Duty Gas Grill 6330 WARNING HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND INSTRUCTIONS ARE IGNORED. READ...

  • Page 2: Important Safety

    IMPORTANT SAFETY WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.

  • Page 3: Table Of Contents

    General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use.

  • Page 4: General Warnings

    GENERAL WARNINGS • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal briquets or lighter fluid in a gas grill. • Leak test all connections before first use, even if grill was purchased fully assembled and after each tank refill.

  • Page 5: Installation Information

    • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill be situated at least 10 feet (3.1 m) from buildings.
  • Page 6 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...

  • Page 7: Filling The Lp Gas Cylinder

    FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •...
  • Page 8 • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. The pressure regulator and hose assembly supplied with your gas grill must be used. • DO NOT attempt to connect it to any other fuel supply source such as a natural gas line.

  • Page 9: Leak Testing

    LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. •...

  • Page 10: Leak Testing

    6. Check each place listed (A– K) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure in hose. 9. Turn control knobs to "OFF" position. 10.

  • Page 11: Connecting Lp Cylinder And Hose / Regulator To Grill

    7. If the burner does not light within the first few attempts of match lighting, there is a problem with the gas supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the grill until the problem is found and corrected. See "Trouble Shooting" section of this manual. WARNING WARNING Matchlighter 6330 Lighting Hole...

  • Page 12: Lighting The Side Burner

    LIGHTING THE SIDE BURNER: 1. Open lid before lighting side burner. 2. Make sure control knob is in the "OFF" position. 3. Push and turn side burner control knob to the "HIGH" position. 4. Press the electronic igniter on the main control panel and hold for 3 –...

  • Page 13: Operating Grill And Helpful Hints

    OPERATING THE GRILL: Never use Charcoal or Lighter Fluid inside your Gas Grill. Read and follow all warnings and instructions contained in the preceding sections of this manual. BREAKING IN YOUR GRILL: • In manufacturing and preserving the components of your grill, oil residue may be present on the burner and cooking surfaces of your grill.

  • Page 14: Using Other Features Of The Grill

    ROTISSERIE COOKING: • Your grill was pre-drilled from factory to include mounting holes for a rotisserie (sold separately). Do not use a rotisserie not specifically manufactured for this grill. • Read and follow all instructions provided with the rotisserie. Save instructions for future reference. •...

  • Page 15: Helpful Hints

    • To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not in use. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 or 800-527-0717. • Wash cooking grills and heat distribution plates with hot, soapy water, rinse well and dry. Lightly coat cooking grill with vegetable oil or vegetable oil spray.

  • Page 16: Cleaning And Maintenance

    CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors and liquids. • Keep the ventilation openings of the cylinder enclosure free and clear of debris. • Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under Proper Care and Maintenance).

  • Page 17: Proper Care And Maintenance

    These nests can cause fires in burner tubes or under grill. • If storing the grill outdoors, cover the grill with a grill cover for protection from the weather. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 or 800-527-0717. WARNING...

  • Page 18: Trouble Shooting

    TROUBLE SHOOTING Problem: • Burner will not light • Fire at control knob • Yellow Flames at burner • Flame blows out on "LOW" • Burner does not get hot enough • Grill is Too Hot Possible Causes: 1. Check LP cylinder fuel level. 2.

  • Page 19: Frequently Asked Questions

    If the fuel line is blocked, replace with a new hose / regulator assembly. • If an obstruction is suspected in the hose / regulator assembly, orifice or gas valves call Brinkmann Customer Service at 800-527-0717. Question: Why does my LP gas grill have a low flame or a flame with orange / yellow color? Answer: You need to purge air from the gas line or reset the regulator's flow limiting device.

  • Page 20: Frequently Asked Questions

    Regulator Resetting Procedure under Connecting LP Cylinder and Hose/Regulator to Grill. This procedure should be done every time a new LP gas tank is connected to your grill. For help, refer to your owner’s manual or call Brinkmann Customer Service at 800-527-0717.

  • Page 21: Parts Bag Contents

    PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before you begin the installation process. PARTS BAG CONTAINS: Qty. Hex nut wrench AA/1.5V Alkaline battery Screwdriver 24 M6 X 12mm bolts Wheel axle bolts Wheel washers Qty.

  • Page 22: Assembly Instructions

    WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. The estimated time of assembly for this grill is approximately 15 minutes. The following provided tools are required to assemble this Brinkmann ProSeries 6330 Grill: • Flathead Screwdriver • Hex Nut Wrench...
  • Page 23 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
  • Page 24 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary. Step 1 Assemble bottom cart shelf and right side cart panel by using two M6 X 12mm bolts and star washers...
  • Page 25 Tire Hubcap Wheel axle bolt Locking Caster Hex Nut Wrench Washer Step 3 With the help of a friend, turn the assembled cart over. Try to minimize the stress to the bottom plate. Step 4 Attach locking casters to the bottom of the left side cart panel.
  • Page 26 Step 6 Snap wheel hub caps onto the outside of wheels as illustrated. Step 7 With the help of a friend, turn the cart to its upright position. Step 8 Attach tank heat shield to heat shield plate using one #8 self-tapping screw.
  • Page 27 Heat Shield Plate Heat Shield Plate Heat Grease Cup Shield Plate Step 10 Attach heat shield plate and front panel to the front of the cart frame assembly using two M6 X 12mm bolts with star washers. Step 11 Attach heat shield plate to the back of the cart frame assembly using two M6 X 12mm bolts with star washers.
  • Page 28 Note: When performing Step 13, Lift grill body from front and rear panels to avoid injury to hands and fingers. Be sure to pass hose/regulator assembly above cart frame crossbar. Step 13 With the help of a friend, place grill body assembly on assembled cart frame.
  • Page 29 Step 14 Attach side table to left side of cart frame assembly. Insert four M6 X 12mm bolts halfway into cart frame assembly. Step 15 Place table over bolts and slide toward front of grill, then tighten securely. Fasten side table front panel to grill body with one M6 X 12mm bolt.
  • Page 30 Step 18 Attach the hose heat shield to the right side of the cart frame using two #8 self-tapping screws. Step 19 Remove two bolts and washers from the side burner valve. Insert the side burner valve assembly through the hole in the side burner front panel, then firmly seat the valve nozzle into the burner venturi.
  • Page 31 Side Burner Igniter Lead Side burner grate Grease Tray Step 21 Attach side burner igniter lead wire to the electrode as illustrated. Electrode Step 22 Place side burner grate over side burner. Step 23 Insert grease tray into opening on backside of grill.
  • Page 32 Step 27 Remove igniter cap and insert battery with positive end of battery toward igniter cap. Replace igniter cap and make sure the igniter is working properly. 6330 Igniter Cap Battery Warming Rack Cooking Grills Heat Distribution...

  • Page 33: Grilling Accessories

    Step 28 Insert tank lock wire through two small holes in cart base as illustrated. Tank Lock Wire ProSeries 6330 (Assembled) 6330 MAXIMUM SIDE BURNER WEIGHT = 15 lbs.
  • Page 34 RIB RACK Chrome-plated rack can greatly increase the cooking capacity of your grill. Holds ribs, chicken halves, potatoes and corn vertically to triple cooking capacity. Allows smoke, steam and heat to penetrate food evenly. 812-3310-0 MEATLOAF BASKET The unique basket weave prevents meatloaf from falling through the grill while allowing smoke, steam and heat to flow into the food.
  • Page 35 Ideal for charcoal, electric, gas smokers and grills. 812-3311-0 LOOK FOR THESE AND OTHER BRINKMANN ACCESSORIES AT YOUR LOCAL RETAILER WHERE SMOKERS ARE SOLD, OR ORDER DIRECT BY CALLING ACCESSORIES MARINADE INJECTOR This quick and easy marinade injector marinates meat...

  • Page 36: Warranty

    • This warranty does not cover surface scratches, rust or heat damage to the finish, which is considered normal wear. • The Brinkmann Corporation may elect to repair or replace damaged units covered by the terms of this warranty. • This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.

This manual is also suitable for:

Proseries 6330810-6330-w
