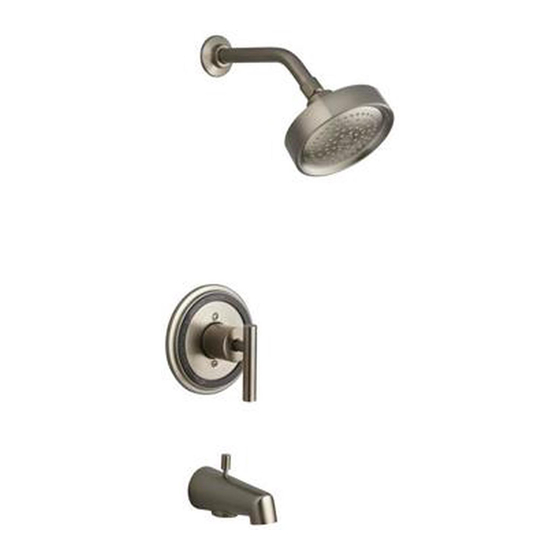

- Page 1 Installation Guide Single-Control Bath and Shower Trim K-T8224, K-T8226, K-T8228 1031365-2-A...
-
Page 2: Important Instructions
If you do not understand any of the installation or temperature adjustment instructions in this document, in the United States please contact our Customer Service Department at 1-800-4-KOHLER. Outside the U.S., please contact your distributor. IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in the information box in the Homeowners Guide and on the valve label. -
Page 3: Tools And Materials
Sealant Wrench Thank You For Choosing Kohler Company We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don’t hesitate to contact us. Our phone numbers and web site are listed on the back cover. - Page 4 Before You Begin (cont.) The valve shuts off by water pressure. Do not force the handle in any direction. To turn the valve off, gently turn it to the “Off” position. Shut off the main water supply. 1031365-2-A Kohler Co.
- Page 5 Apply a bead of plumbers putty or other sealant around the inlet end of the spout according to the putty manufacturer’s instructions. Apply thread sealant to the nipple and thread the spout onto the nipple. Carefully tighten with a clean strap wrench. Remove all excess putty. Kohler Co. 1031365-2-A...
- Page 6 Press the escutcheon against the finished wall and secure with the setscrew. Remove all excess putty. With the showerhead off, flush out the system. Apply thread sealant tape to the shower arm and thread the showerhead to the shower arm. 1031365-2-A Kohler Co.
-
Page 7: Water Temperature Adjustment
Reinstall the collar on the valve stem with the setscrew against the side of the tab. Reinstall the O-ring, rotate the valve stem counterclockwise to shut the water off, and recheck the water temperature. NOTE: After adjustment, complete the required information on the valve label. Kohler Co. 1031365-2-A... - Page 8 Position the handle over the handle stem eyelets. Secure by threading the plug into the handle. Press the plug button firmly into place. If needed, install the second O-ring, ring, and end piece. Swirl and Square Handle Rotate the valve stem fully counterclockwise. 1031365-2-A Kohler Co.
-
Page 9: Complete The Installation
Remove the aerator assembly from the spout by turning it counterclockwise. Turn on the main water supply. Turn the valve to the center and run water for approximately one minute to flush the system. Check all connections for leaks. Reinstall the aerator. Kohler Co. 1031365-2-A... - Page 10 1031365-2-...
- Page 11 1031365-2-...
- Page 12 USA:1-800-4-KOHLER kohler.com ©2004 Kohler Co. 1031365-2-A...
