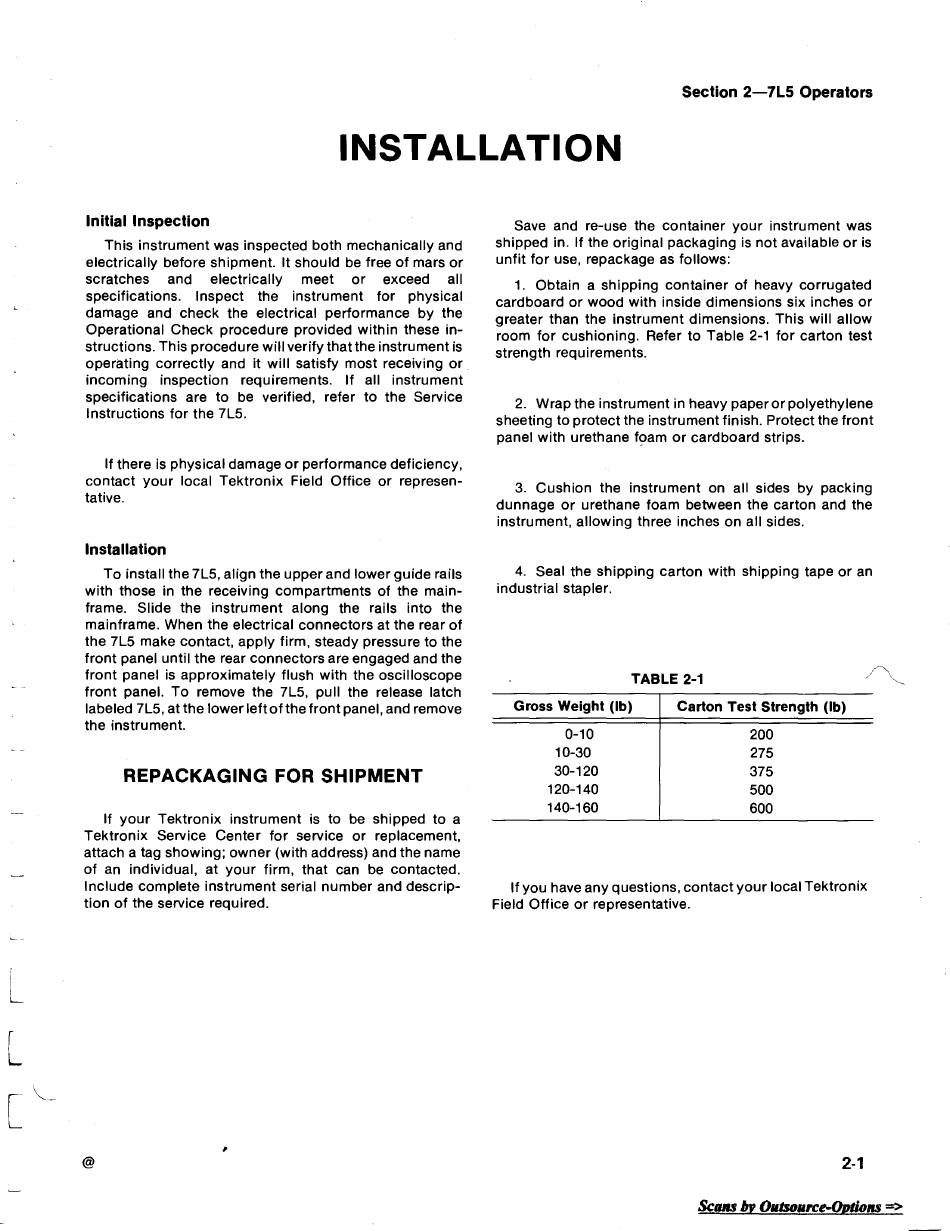

Section 2-7L5 Operators
INSTALLATION
Initial Inspection
This instrument was inspected both mechanically and
electrically before shipment. It should be free of mars or
scratches and electrically meet or exceed all
specifications. Inspect the instrument for physical
damage and check the electrical performance by the
Operational Check procedure provided within these in-
structions. This procedure will verify that the instrument is
operating correctly and it will satisfy most receiving or
incoming inspection requirements. If all instrument
specifications are to be verified, refer to the Service
Instructions for the 7L5.
If there is physical damage or performance deficiency,
contact your local Tektronix Field Office or represen-
tative.
Installation
To install the 7L5, align the upper and lower guide rails
with those in the receiving compartments of the main-
frame. Slide the instrument along the rails into the
mainframe. When the electrical connectors at the rear of
the 7L5 make contact, apply firm, steady pressure to the
front panel until the rear connectors are engaged and the
front panel is approximately flush with the oscilloscope
front panel. To remove the 7L5, pull the release latch
labeled 7L5, at the lower leftofthe front panel, and remove
the instrument.
REPACKAGING FOR SHIPMENT
If your Tektronix instrument is to be shipped to a
Tektronix Service Center for service or replacement,
attach a tag showing; owner (with address) and the name
of an individual, at your firm, that can be contacted.
Include complete instrument serial number and descrip-
tion of the service required.
,
@
Save and re-use the container your instrument was
shipped in. If the original packaging is not available or is
unfit for use, repackage as follows:
1. Obtain a shipping container of heavy corrugated
cardboard or wood with inside dimensions six inches or
greater than the instrument dimensions. This will allow
room for cushioning. Refer to Table 2-1 for carton test
strength requirements.
2. Wrap the instrument in heavy paper or polyethylene
sheeting to protect the instrument finish. Protect the front
panel with urethane f9am or cardboard strips.
3. Cushion the instrument on all sides by packing
dunnage or urethane foam between the carton and the
instrument, allowing three inches on all sides.
4. Seal the shipping carton with shipping tape or an
industrial stapler.
TABLE 2-1
Gross Weight (Ib)
Carton Test Strength (Ib)
0-10
10-30
30-120
120-140
140-160
200
275
375
500
600
If you have any questions, contact your local Tektronix
Field Office or representative.
