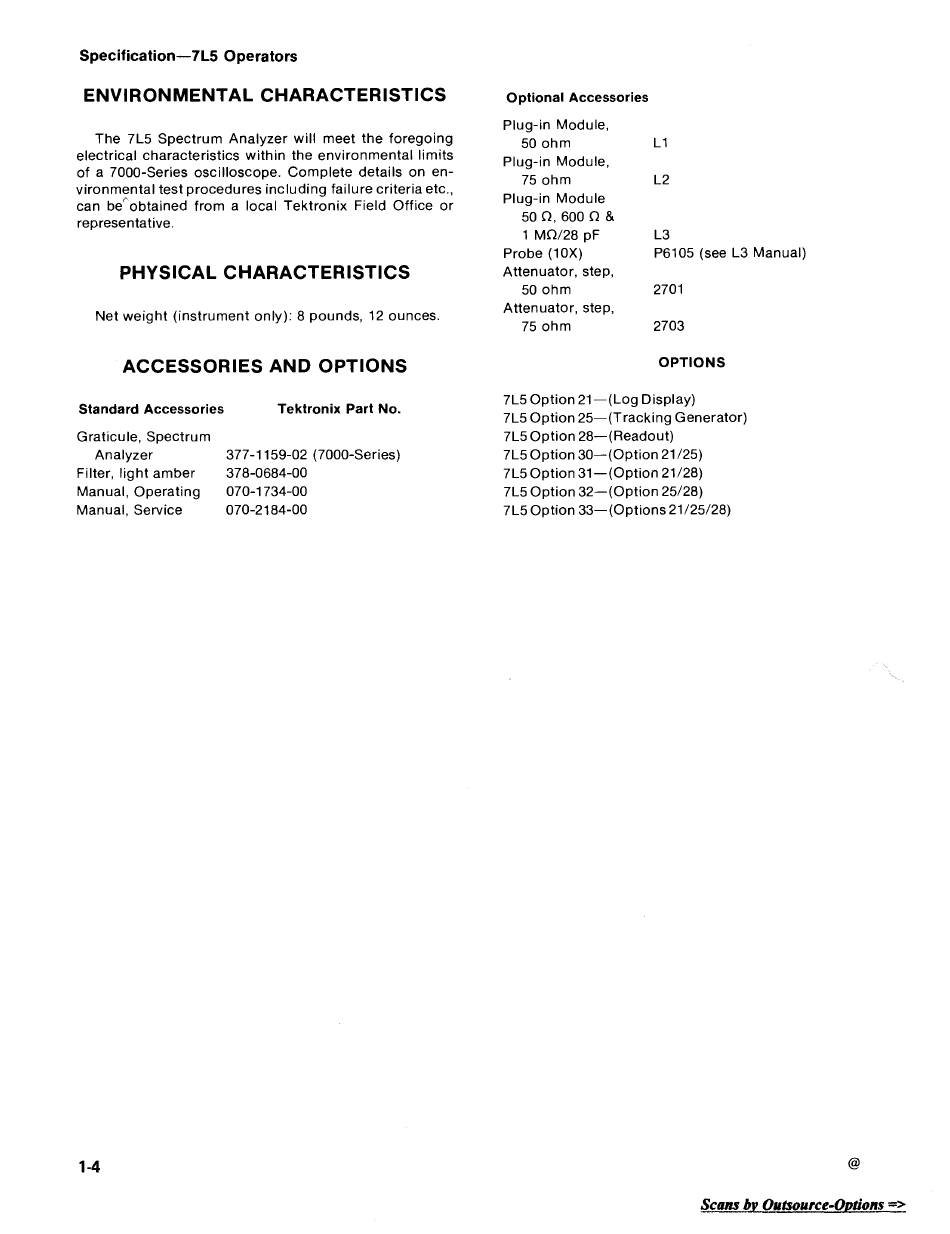

Specification-7L5 Operators
ENVIRONMENTAL CHARACTERISTICS
The 7L5 Spectrum Analyzer will meet the foregoing
electrical characteristics within the environmental limits
of a 7000-Series oscilloscope. Complete details on en-
vironmental test procedures including failure criteria etc.,
can be"obtained from a local Tektronix Field Office or
representative.
PHYSICAL CHARACTERISTICS
Net weight (instrument only): 8 pounds, 12 ounces.
ACCESSORIES AND OPTIONS
Standard Accessories
Graticule, Spectrum
Analyzer
Filter, light amber
Manual, Operating
Manual, Service
1-4
Tektronix Part No.
377-1159-02 (7000-Series)
378-0684-00
070-1734-00
070-2184-00
Optional Accessories
Plug-in Module,
50 ohm
Plug-in Module,
75 ohm
Plug-in Module
500,6000&
1 MO/28 pF
Probe (10X)
Attenuator, step,
50 ohm
Attenuator, step,
75 ohm
L1
L2
L3
P6105 (see L3 Manual)
2701
2703
OPTIONS
7L5 Option 21-(Log Display)
7L5 Option 25-(Tracking Generator)
7L5 Option 28-(Readout)
7L5 Option 30-(Option 21/25)
7L5 Option 31-(Option 21/28)
7L5 Option 32-(Option 25/28)
7L5 Option 33-(Options 21/25/28)
@
