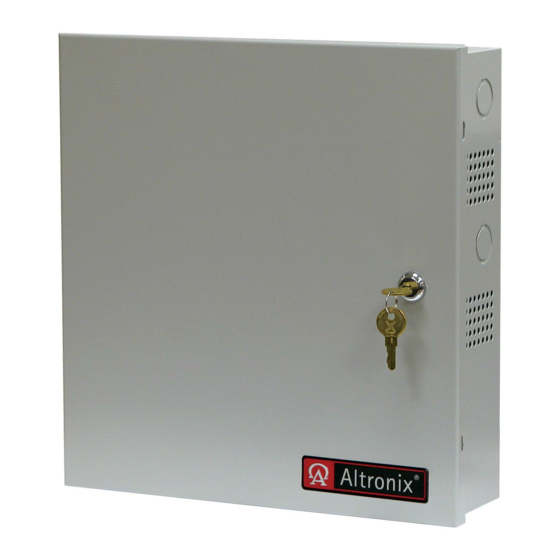

Altronix SMP3CTX Series Installation Manual

These units convert a 115VAC or 230VAC, 50/60Hz input into a regulated 12VDC or 24VDC output up to 2.5A of con­
tinuous load current (see specifications).
SMP3CTX Series Power Supply Configuration Reference Chart:
Accessory
Power
Altronix Distribution
Model Number Module(s)
SMP3CTX
SMP3PMCTX
SMP3PMCTXX
SMP3PMP4 PD4
SMP3PMP4CB PD4CB
SMP3PMP8 PD8
SMP3PMP8CB
PD8CB
SMP3PMP16 PD16W
SMP3PMP16CB PD16WCB
Agency Listings:
• CE European Conformity.
Input:
• Input 115VAC, 50/60Hz, 0.65A or
230VAC, 50/60Hz, 0.35A.
Output:
• 12VDC or 24VDC selectable output.
• 2.5A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 0.5A.
• Zero voltage drop when switching over to battery backup.
Features:
• Power ON/OFF switch.
Power Supply Voltage Output Specifications:*
Output VDC Switch Position
12VDC SW1 - ON (Fig. 1c, pg. 3)
24VDC SW1 - OFF (Fig. 1c, pg. 3)
*Specified at 25˚ C ambient.
Wiring methods should be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's
upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 4).
Secure enclosure to earth ground.

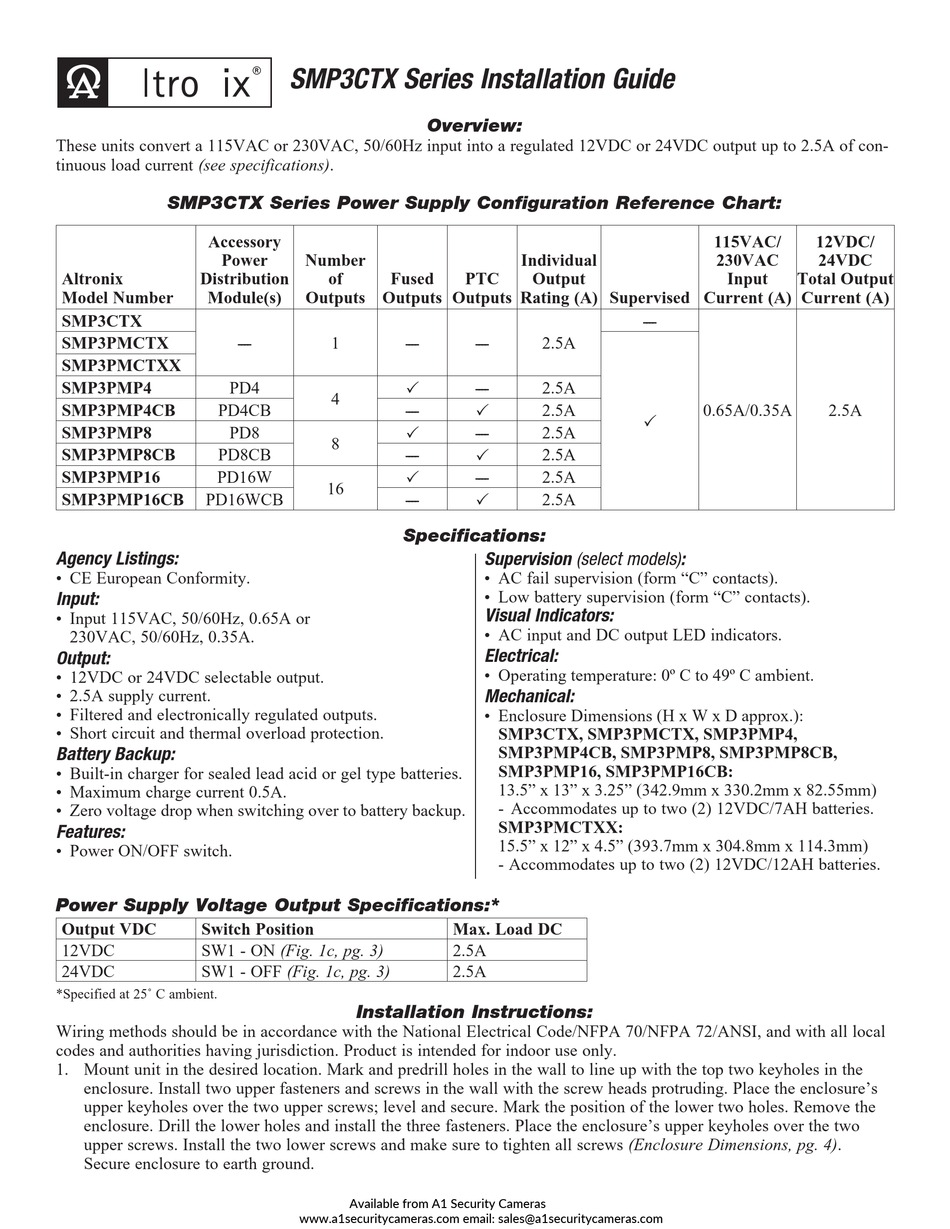

SMP3CTX Series Installation Guide
Number
of Fused
Outputs Outputs
---­ 1 ---­
P
4
---­
P
8
---­
P
16
---­
Specifications:
Installation Instructions:
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Overview:
Individual
PTC Output
Outputs Rating (A) Supervised
---- 2.5A
---- 2.5A
2.5A
P
---- 2.5A
2.5A
P
---- 2.5A
2.5A
P
Supervision (select models):
• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
Mechanical:
• Enclosure Dimensions (H x W x D approx.):
SMP3CTX, SMP3PMCTX, SMP3PMP4,
SMP3PMP4CB, SMP3PMP8, SMP3PMP8CB,
SMP3PMP16, SMP3PMP16CB:
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
- Accommodates up to two (2) 12VDC/7AH batteries.
SMP3PMCTXX:
15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm)
- Accommodates up to two (2) 12VDC/12AH batteries.
Max. Load DC
2.5A
2.5A
115VAC/ 12VDC/
230VAC 24VDC
Input Total Output
Current (A) Current (A)
----
0.65A/0.35A
P
2.5A
