Memphis Shades 2320-0020 Mounting Instructions

Read and follow these directions carefully.
During installation, make sure that the windshield and hard-
ware do not interfere with any cables or wiring when the forks
are turned all the way in either direction. Also make sure,
through the full range of adjustment, that the windshield and
hardware do not hit the tank.
This is a detachable windshield, ALWAYS make sure the
Locking Mechanism is Fully Engaged after installing the
windshield!
The improper installation of this kit and related compo-
nents could result in serious injury or death.
Additional tools required, that are not included in this kit.
7/16" or 11mm wrench.
1. Cover gas tank and front fender with towels to avoid
damage during installation.
2. Locate the upper and lower mounting bolts located on the
sides of the front fork covers and remove them along with the
Aluminum trim piece. Set the trim piece in a safe place.
"Note: These bolts may be very tight. Take care not to strip
the head of the bolts, you may also want to screw the origi-
nal bolts in and out a few times to clean the threads."
3. Re-install the Aluminum trim piece using the new bushing
assemblies provided in this kit. The upper bolts uses the
thicker spacer and the thinner spacer on the lower bolt. Repeat
these steps on the other side.
(see Figure 1)

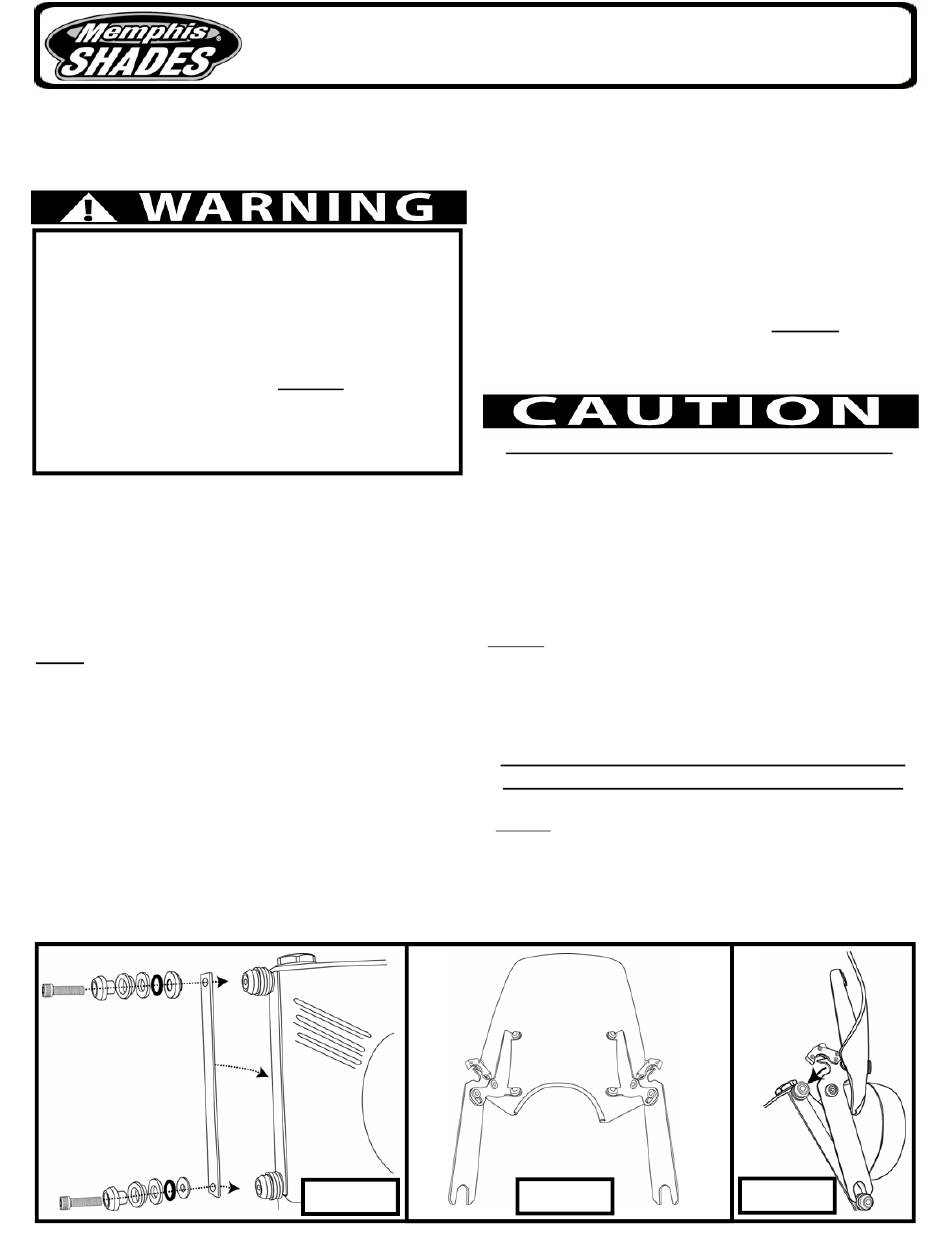

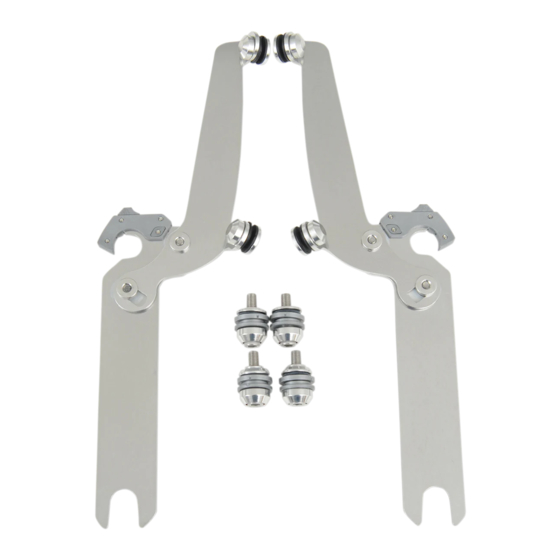

4. Install the two mounting plates onto the windshield, using
the bolts that are pre-assembled on the mounting plates. The
Santoprene Grommets should be inserted through the holes in
the windshield so that the flat round part of the Grommet lies
flat on each side of the windshield. Tabs point in towards the
headlight. (See Figure 2)
Upper bolt
assembly
Lower bolt
assembly
MOUNTING INSTRUCTIONS
2320-0020 Detachable Mounting Kit
Sportshield for H-D Covered without Light Bar
Figure 1
5. Slip the windshield mounting plates and windshield onto
the upper and lower bushing assemblies, (see figure 3 and 5)
and secure the left and right side locking mechanism.
6. Adjust the height, angle and alignment of the windshield
and tighten ALL bolts.
Note: This is a detachable windshield, ALWAYS make
sure the Locking Mechanism is Fully Engaged after in-
stalling the windshield! (see figure 5)
IMPORTANT CARE AND CLEANING INSTRUCTIONS
Memphis Shades Windshields and Lowers are made of
Lucite® acrylic, and will last for years with proper care.
Clean your windshield with plenty of soapy water — mild
dishwashing liquid is best — and a soft cotton cloth. Use your
bare hand to feel and dislodge bugs, or cover with a wet soapy
towel and let it soak. Don't use paper towels and don't scrape
with anything. Small scratches can be removed with NOVUS
# 2.
NEVER use any glass cleaning products, petroleum based
chemicals, or cleaning agents with ammonia, bleach or any
other harsh chemicals. This includes (but not limited to)
RainX, brake fluid, acetone, paint thinner, benzene and
gasoline. "If it hurts your nose, it will hurt the plastic."
Glass cleansing agents will cause severe damage
to your windshield, and will void your warranty.
NOTE: At certain times of the day the Sunlight can reflect
off the curvature of a windshield and cause extreme heat
build-up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an opaque
object over the instruments or adjust the windshield to avoid
reflections.
Figure 2
Figure 3
