Bakers Pride P48BL Specifications

BAKE & ROAST OVENS
BAKERS
PRIDE
SPECIFICATIONS

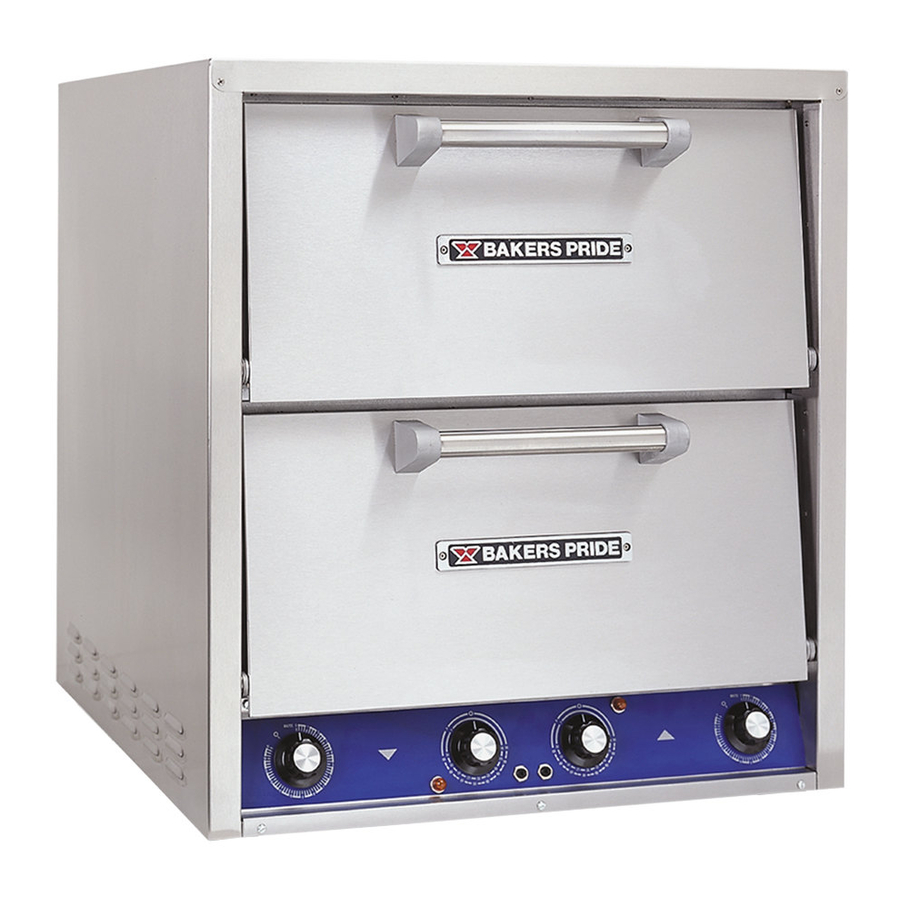

The P48S Bake & Roast electric counter top ovens feature two
independent, operator controlled baking chambers
(190mm) deck heights and hearth stone decks making them ideal
for baking and roasting.
The brick lined option adds top heat intensity, speeds recovery and
increases production. The brick lined option may be easily installed
in the standard P44S either in the field or factory. Hearth stone
decks are easily removable for cleaning or replacement.
The P48S features two sets of controls — one set for each bake
chamber. Each set consists of a 60-minute electric timer with
audible alarms and manual shut-offs and a 150-550° F (65-288°C)
thermostat.
The exterior front, sides, top and door are fabricated of heavy
gauge type 430 stainless steel with a #4 finish. Door handle is
constructed of tubular stainless steel. Exteriors measures 26" wide
(660mm) by 28" deep (711mm) by 28 1/2" tall (724mm) overall.
The interiors are constructed of high heat aluminized steel, welded
to form a single unitized body. The entire oven is insulated with
1 1/2" thick (38mm) industrial grade insulation. Each hearth stone
deck measures 20 3/4" (527mm) by 20 3/4" (527mm).
Incloy, tubular heating elements provide top and bottom heat with
up to 4300 watts in 208V or 220-240V, single or three phase.
International voltages available. Ovens are stackable.
1 Year limited parts and labor warranty included.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE www.bakerspride.com
COUNTER TOP
ELECTRIC
Model P48S
with 7 1/2"
Job ____________
ELECTRIC COUNTER TOP OVENS
q
Model P48S
q
Model P48BL
STANDARD FEATURES
q P48S @ 4300 watts in 208V or 220-240V
q Two independent, operator controlled cook/bake chambers
each with a separate set of controls
Two 60-minute electric timers with continuous ring, audible
q
alarms and manual shut-offs (one for each chamber)
q 150°-550°F Temperature range (65°-288°C)
q Corderite hearth decks
q 7 1/2" Deck height (190mm)
q All stainless steel exterior
Unitized, welded, aluminized steel interior
q
q Fully insulated
q Limited one year parts & labor warranty
OPTIONS & ACCESSORIES
q 4" (102 mm) adjustable legs
q Stainless steel stand with or without casters
Stacking kit
q
q Brick lined conversion kit — standard on P48BL
q Steel decks in lieu of hearth stone
q Interior lights
q International voltages
Glass windows in door(s)
q
CERTIFICATIONS
U L
®
®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
®
