Bakers Pride CH-10 Specifications

HIGH PERFORMANCE
HEAVY DUTY
FLOOR MODEL
BAKERS
RADIANT
PRIDE
CHAR BROILERS

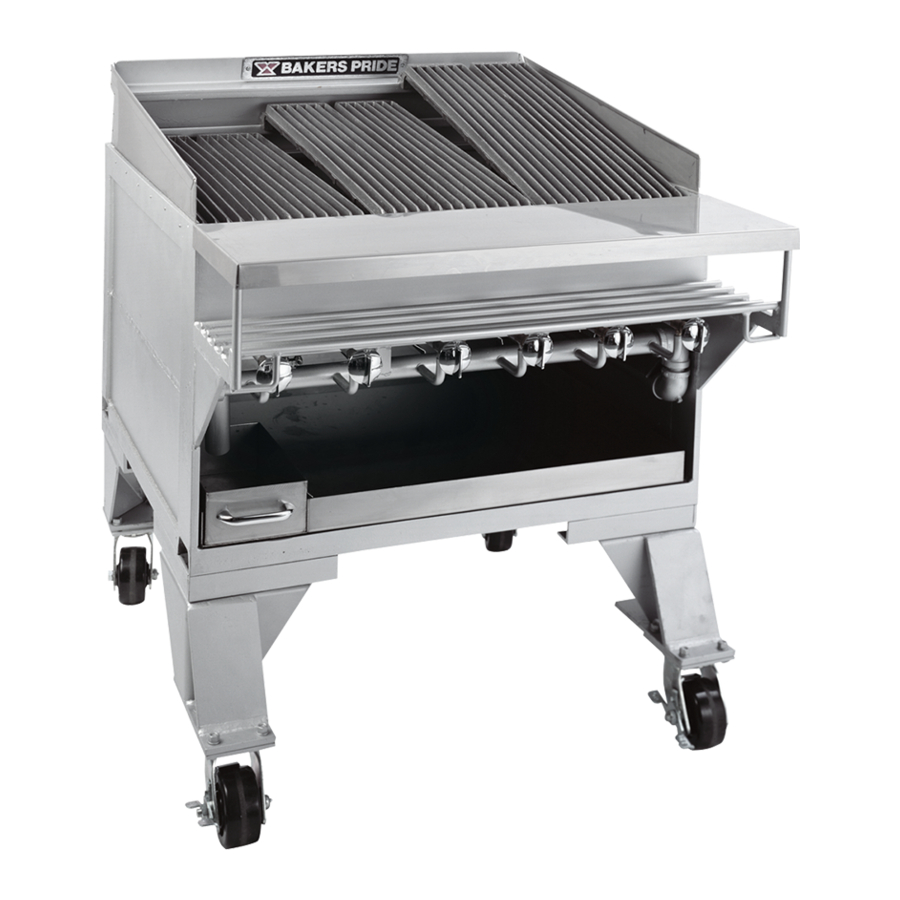

Model CH-6
with optional legs & casters,
splash guard, plate shelf & work deck
SPECIFICATIONS
Extra heavy duty radiant char broilers are designed for high volume
broiling without charcoal or ceramic stones.
The CH Series features unitized construction. The entire chassis
frame including the base is hand-crafted of 1/2" (13mm) to 1/4"
(6mm) thick HRS and welded to form a single unit without
fasteners. The sides and rear of the outer shell is made of heavy
gauge CRS and is welded to the chassis frame to complete the
unitized construction and finished with durable Baker Tone paint.
CH Series features 24" long (610mm) aluminized steel burners
rated at 18,000 BTUH each (5.27kw) located every 5 1/4"
(133mm). Each burner features a separate, independent operator-
controlled valve. 14-gauge stainless steel heat deflector radiants
are located directly above each burner for an even transfer of
radiant heat to the broiling surface. Cast iron burners and cast iron
radiants are optional.
Standard top grates are heavy-duty cast iron. A variety of different
style grates are available and may be mixed and matched. Each
grate may be adjusted independently in any of three tilting
positions. Broiler grates are 23 3/4" deep (603mm) for maximum
production.
Exterior measures 28 1/4" deep (718mm) plus 8" lintel plate/shelf
(203mm) or 9 1/8" (232mm) work deck with plate shelf. Working
height measures 33 1/2" (851mm) with legs, or 20" (508mm)
without legs, plus 6 1/2" (165mm) back splash. Standard widths
range from 33 1/2" (851mm) up to 75 3/4" (1924mm).
Standard features include 2" deep stainless steel slide-out water
pans and grease drawer, rear gas connections and pressure
regulator. CH Series may be built in for display cooking and
exhibition kitchens. Legs sold separately.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE www.bakerspride.com
GAS CHAR BROILERS
Model CH-6
q
Model CH-8
q
Model CH-10
q
Model CH-12
q
Model CH-14
q
STANDARD FEATURES
Heavy plate steel, welded unitized construction
q
High performance 18,000 BTUH per burner every 5 1/4"
q
Natural or LP gas
q
Individual, operator-controlled, adjustable burner valves
q
14-gauge stainless steel radiant heat deflectors above each
q
burner
8" deep lintel plate/shelf (203mm)
q
2" deep (51mm) stainless steel water pans
q
Stainless steel grease drawer
q
Back splash
q
Pressure regulator
q
One year limited parts & labor warranty
q
OPTIONS & ACCESSORIES
Cast iron burners
q
Cast iron radiant heat deflectors
q
Stainless steel exterior side panels
q
Leg set
q
Leg & caster set
q
Stainless steel or Richlite work deck with plate shelf
q
Custom cut-outs in work deck for sauce pans
q
4" deep water pans (102mm)
q
Stainless steel splash guard
q
Variety of top grates including meat grates, fish grates,
q
floating rod grates and more
Stainless steel heat shields
q
Side gas connections
q
Removable griddle plates
q
Log holders for smoke assisted char broiling
q
Gas connector hoses
q
CERTIFICATIONS
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
G
CERTIFIED
