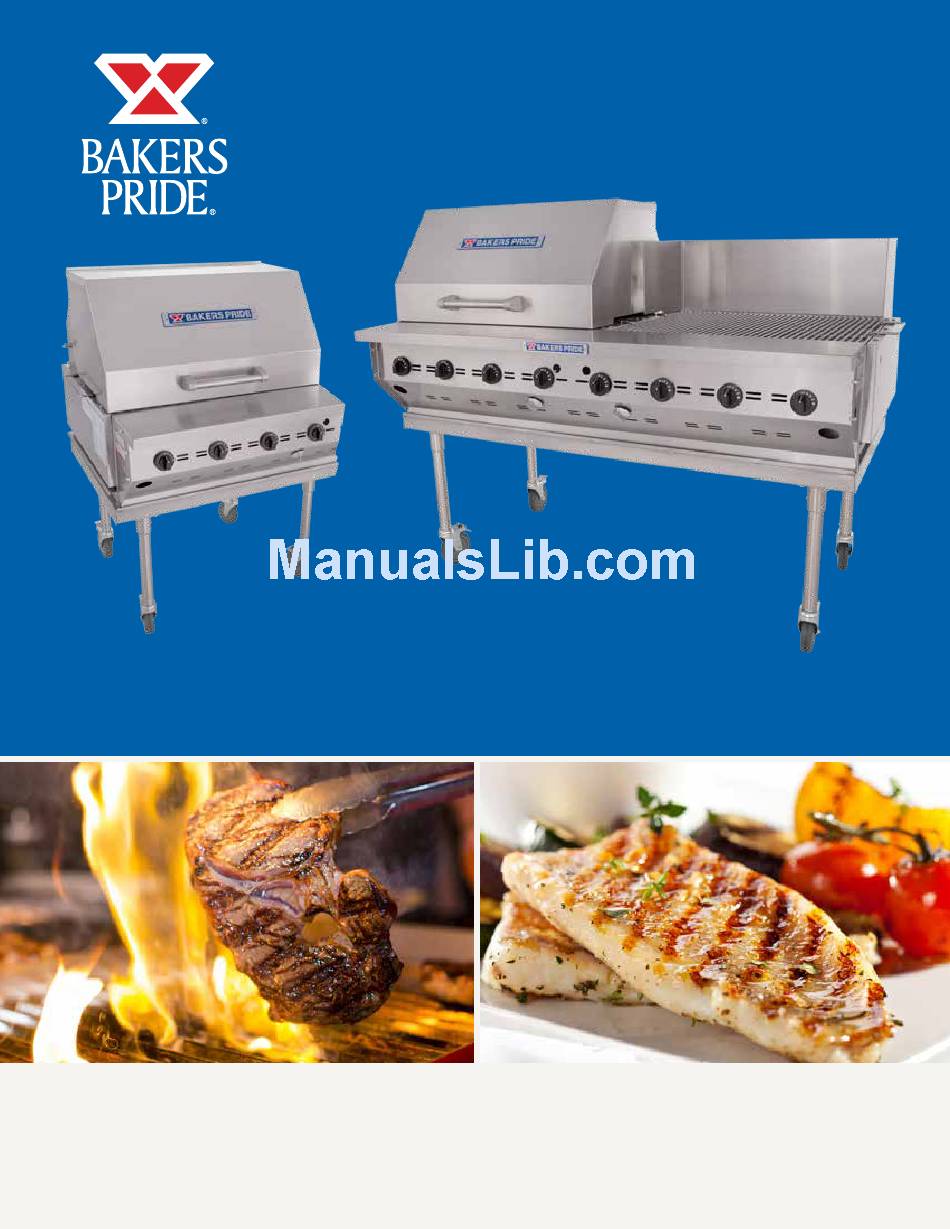

- Page 1 OPERATION MANUAL ULTIMATE SERIES OUTDOOR CHARBROILERS SERIES: CBBQ B U I LT BY C R A F T S M E N . T E S T E D BY T I M E ®...
- Page 2 Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions Bakers Pride Oven Company, LLC is a wholly owned thoroughly before installing or servicing this subsidiary of Standex International Corporation. equipment.
-
Page 3: Safety Precautions
Gas Specifications Model Number Propane Gas Natural Gas BTU/HR @ 10” W.C. BTU/HR @ 3.5” W.C. CBBQ-60S 160,000 160,000 CBBQ-30S 80,000 80,000 Model Definitions Model Number Width CBBQ-30 S Overall Width = 32” CBBQ-60 S Overall Width = 62 1/2”... -
Page 4: Installation Instructions
OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Safety Precautions 8. Broiler must be disconnected from gas supply (Must Be Posted In A Prominent Location) during any pressure testing of pipelines in excess of ½ psig (3.45 kPa), and isolated (by turning off gas shut-off valve) during any testing less than ½... -
Page 5: Unpacking Instructions
OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Unpacking Instructions: 5. Lift frame assembly from carton and set aside. Carefully unpack the broiler and inspect immediately for 6. Lift base from carton and place it upside down on shipping damages. Your outdoor boiler was shipped in a ground. - Page 6 OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Connecting The Gas Lines To The Propane Tanks NOTICE • New propane tanks are shipped empty with no All 20-lb LP cylinders are provided with the new pressure and must be purged of air and filled Type I ACME valve with an OPD (overfill protection with propane per NPGA (national propane gas device) installed.
- Page 7 OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Side Rack Installation: Leak Testing: • Side racks have to be installed on both sides of The plumbing must now be tested for gas leaks before the 60” stand and on the right side of the 30” use.
-
Page 8: Lighting Instructions
OUTDOOR GAS CHARBROILER OPERATION MANUAL LIGHTING INSTRUCTIONS Lighting Instructions: front panel. If the carryover tube(s) will not light or stay lit, shut off the gas supply and do not use Fill water pans to within 1/2” of top edges (this will the unit. -
Page 9: Maintenance Instructions
OUTDOOR GAS CHARBROILER OPERATION MANUAL MAINTENANCE INSTRUCTIONS Burner / Orifice Inspection Cleaning Instructions • Clean the unit regularly after use. 1. Remove the front shelf by removing the two screws at the ends. • Top Grates: after removing from the unit, use warm soapy water and a stiff bristled brush or plastic 2. -
Page 10: Troubleshooting Guide
Small amounts of water in liquid propane can form ice crystals in the regulator and prevent (L.P. ONLY) it from working properly. Bakers Pride LP models use a two-stage regulator that reduces, but does not eliminate this problem. Drawing liquid propane rather than gas On a 40# horizontal tank it is possible to have liquid propane in the discharge rather than from a 40# tank. - Page 11 OUTDOOR GAS CHARBROILER OPERATION MANUAL ACCESSORIES Instructions For Installing Outdoor Charbroiler Accessories Your new Charbroiler has been shipped in several cartons, partly assembled. Please follow the instructions below which detail the assembly of shelves, hoods, wind guards, tank brackets, tank caddy and stand. To install the optional undershelf, mount it over the (4) legs &...
-
Page 12: Exploded Views And Parts Lists
OUTDOOR GAS CHARBROILER OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Exploded View – CBBQ-30S & CBBQ-60S Exterior / Interior... - Page 13 OUTDOOR GAS CHARBROILER OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Exterior/Interior Item Description Item Description G6013K Radiant G6017K Work Deck, S/S, 8" (CBBQ60) T1237A Grate, 24” G6021U Work Deck, S/S, Richlite (CBBQ30) S1316U Door Handle Kit, 10” G6017U Work Deck, S/S, Richlite (CBBQ60) Q2041A Screw, 1/4-20 x 1/2 T1240A...
- Page 14 OUTDOOR GAS CHARBROILER OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Exploded View – Manifold, Burner, Valve, Orifice, Pilot Tube Item Description Item Description L5103A Burner R3194A Carry-over Tube, Left R3032X Gas Valve (no knob) R3195A Carry-over Tube, Right S1094A Knob, Gas Valve, ON-OFF Q1459A Screw, 10-32 x 3/8 N3023A...
-
Page 15: Warranty
Bakers Pride Factory Authorized Service Center. This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. Bakers Pride shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. - Page 16 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required. Model Number Serial Number Date Purchased NOTES...
- Page 17 NOTES...
- Page 18 Food Service Equipment Group The Standex Food Service Equipment Group (FSEG) is a manufacturer of innovative commercial food service equipment offering a wealth of refrigeration and cooking expertise. Products include walk-in coolers and freezers; hot and cold display cabinets, cases, and storage systems; commercial ovens, rotisseries, and cooking equipment;...
