Component Details
Item No.
Part Number
1
*Style Index
2
*Frame Index
3
126‐704
4
316‐601
5
416‐505
6
516‐400
Additional Components for Portable Frame
7*
613‐614
8*
126‐701
316‐601
9*
10*
126‐602
12*
126‐704
Additional Components for Surface Mount
11**
531‐062
*Only required on units that have a portable frame.
**Only Required on Surface on units that have a surface mount
Note: Refer to the frame index and style index for part identification and
component specific instructions.
Version: 8B/NBack_08.v2

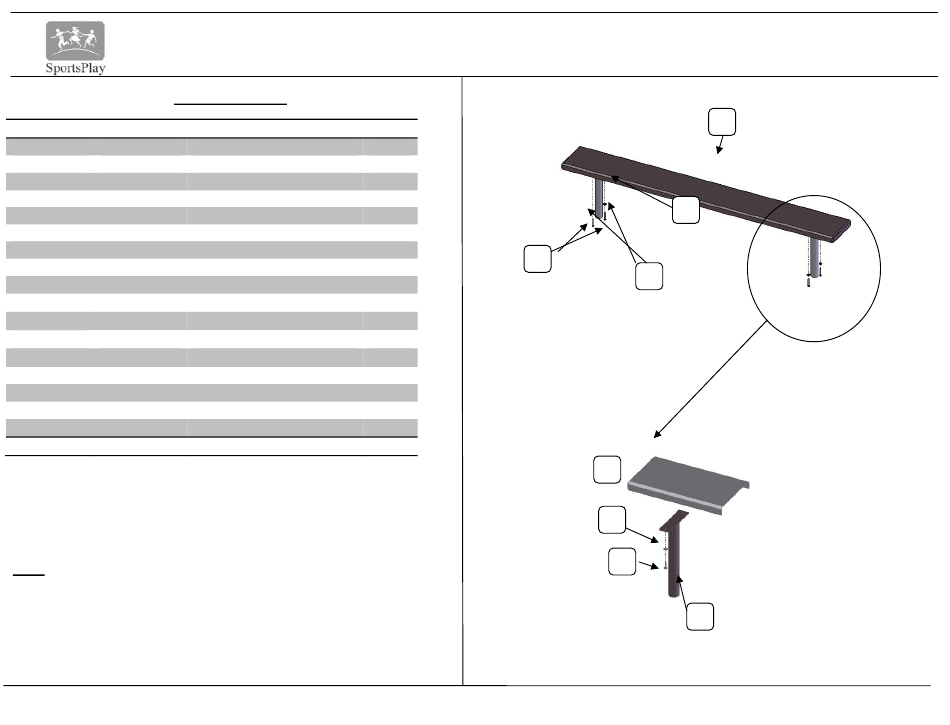

8' Standard Bench without Back
Description
Bench Plank
Bench Leg
3/8 x 1 ¼" Button Head Bolt
3/8 Washer
7/32 Allen
LocTite
Portable Brace*
3/8 x 1 ¼" Button Head Bolt
3/8" Washer
3/8" Nylon Lock Nut
3/8 x 3" Button head bolt
3/8 Concrete Anchor
QTY
1
2
4
4
1
1
3
2
1
6
3
2
8
frame
www.sportsplayinc.com
For Part Numbers: 601‐682,
601‐686, 601‐684 and 601‐688
1
2
4
1
4
Detail B
3
2
1
Advertisement
Table of Contents
Related Manuals for SportsPlay 601-682
Summary of Contents for SportsPlay 601-682
- Page 1 For Part Numbers: 601‐682, 8’ Standard Bench without Back 601‐686, 601‐684 and 601‐688 Component Details Item No. Part Number Description QTY 1 *Style Index Bench Plank 1 2 *Frame Index Bench Leg 2 3 126‐704 3/8 x 1 ¼” Button Head Bolt 4 4 316‐601 3/8 Washer 4 5 416‐505 7/32 Allen 1 6 ...
- Page 2 For Part Numbers: 601‐682, 8’ Standard Bench without Back 601‐686, 601‐684 and 601‐688 Important Assembly Instructions • Please keep a copy of these instructions in your files. There is NOTE: Only assembly your bench at this time. After it is assembled you may refer to the frame index so you can identify your frame type important replacement part information in them that will assist and then locate the specific mounting instructions for that frame. you in the event a part is ever needed. 1. Attach the Bench Plank (1) to one of the Bench Legs (2) by Assembly Information ...
- Page 3 8’ Park Bench without Back Frame Index and Install Portable Frame Instructions: In Ground Mount Instructions: 613-701I 613-701P In ground Portable 1) After assembling the unit attach both of the cross 1) IN GROUND MOUNT (Refer to the Footing Diagram braces (7) to the holes located on the bottom side of below) –...
- Page 4 Please identify your style and it’s corresponding part number before you contact your distributor or the manufacturer for replacement parts. Currently, SportsPlay Equipment offers four style options. Rolled edge 613-612PR 613-612PB with perforated steel, beveled edge with perforated steel, rolled edge with expanded steel and beveled edge with expanded steel.
