INSTALLATION DETAILS
Recommended crew (Adult): 2
Installation time: 1.5 (3 man hrs)
Weight: 245
MAINTENANCE:
As the owner of the playground you are responsible for
maintenance of the equipment and play area. A
maintenance schedule must be developed and the
equipment inspected frequently. A maintenance section
that includes component specific maintenance
requirements is included at the end of this manual.
July 20,2012

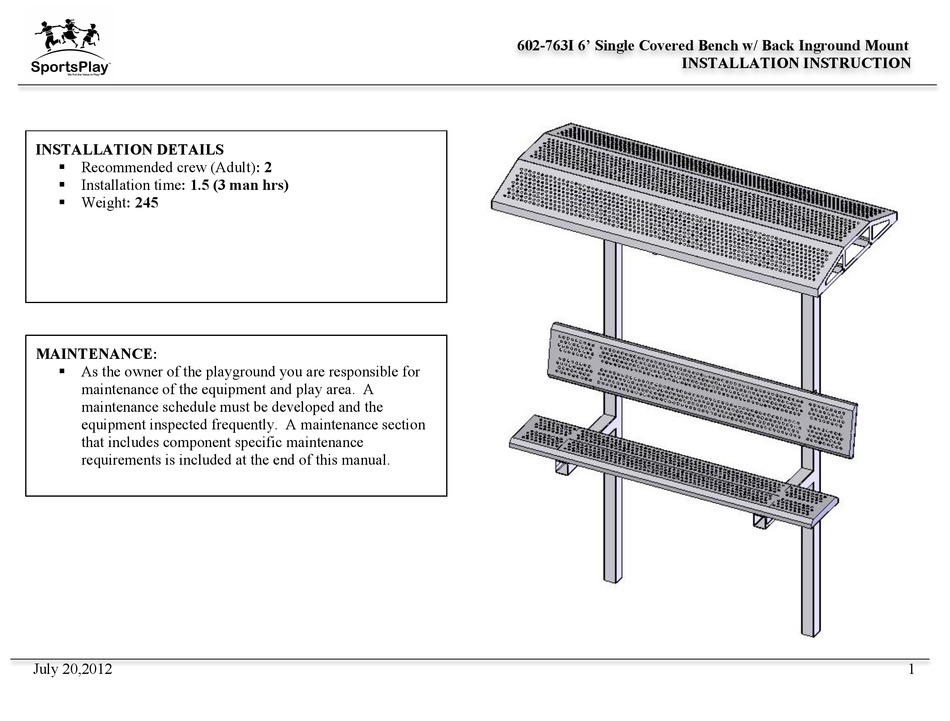

602-763I 6' Single Covered Bench w/ Back Inground Mount
INSTALLATION INSTRUCTION
1
Advertisement
Table of Contents
Related Manuals for SportsPlay 602-763I 6
Summary of Contents for SportsPlay 602-763I 6
- Page 1 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION INSTALLATION DETAILS Recommended crew (Adult): 2 Installation time: 1.5 (3 man hrs) Weight: 245 MAINTENANCE: As the owner of the playground you are responsible for maintenance of the equipment and play area.
- Page 2 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION PARTS LIST PART # DESCRIPTION 613-501B 6’ Beveled Edge Perf. Seat/Back 613-516I Cantilever Leg for Covered Bench Single Side Inground Mt. 613-518 Top for Single Sided 6’ Covered Bench 613-522 Frame for 6’...
- Page 3 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION FOOTING INFORMATION Total footing depth is 24” plus the height of the blocking material. No surfacing is required with this equipment. If the equipment is installed on a unlevel grade you must adjust the footing depth to accommodate the grade.
- Page 4 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION July 20,2012...
- Page 5 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION INSTALLATION TIPS & TROUBLE SHOOTING SPECIFICATIONS Apply locktite to all bolts during assembly prior to Paint – Electrostatically applied & oven cured powder coat completely tightening them.
- Page 6 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION BEFORE YOU BEGIN In addition to the components on the packing list you will need a tape measure, post hole digger, blocking material, and a level. INSTALLATION STEPS __1) Review all instructions before beginning:...
- Page 7 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION INSTALLATION STEPS CONTINUED __5) Continued: inside of the top while the sleeves that go over the legs are facing up, then you will line up the bolt holes in the end of the frames to the holes in the top and bolt them together (See Detail B).
- Page 8 602-763I 6’ Single Covered Bench w/ Back Inground Mount INSTALLATION INSTRUCTION BLANK PAGE July 20,2012...
