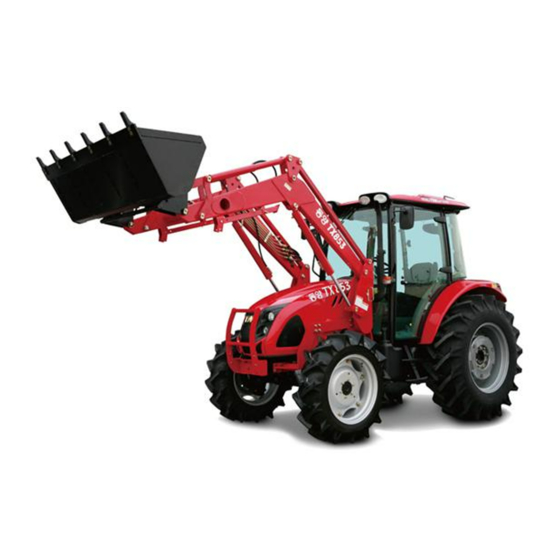

WE GREATLY APPRECIATE YOUR PURCHASING OF TONGYANG EQUIPMENT
This operator's manual describes how to operate the machine and precautions for your safety.
■
Please read this manual carefully before use and keep this manual handy and near the machine after reading.
■
Disassembling, repairing or modifying the equipment without understanding how to operate the equipment may be
■
the reason for accident or breakdown.
When lease or transfer this machine to another, be sure to hand over this manual to the user. In case the manual is
■
lost or damaged, contact your local authorized dealer or distributor immediately to ask for a new manual
Any component or specification of the machine can be subject to change or modification in accordance with the de-
■
sign change. Therefore, if there is any ambiguous part, contact a Tongyang distributor or an authorized dealer near-
by.
Warning symbols are particularly important for safety so follow the instructions with special attention.
Meaning of each sign is shown as the following.
This symbol indicates an urgent condition that may result in harm, fatal injury or even death if this
DANGER
instruction is ignored.
This symbol indicates a potential condition that may result in harm, fatal injury or even death if this
WARNING
instruction is ignored.
This symbol indicates a condition that may result in a minor injury if the instruction is ignored.
CAUTION
This symbol indicates information of working procedures, and information about maintenance, re-
NOTE
garding this equipment.
※ This manual includes 「For the safe operation」 chapter for the safety of user. Be sure to read this chapter be-
fore operation.
TX753,TX853-영문-00(안).indd 1
PREFACE
.
2014-04-04 오후 3:55:40
