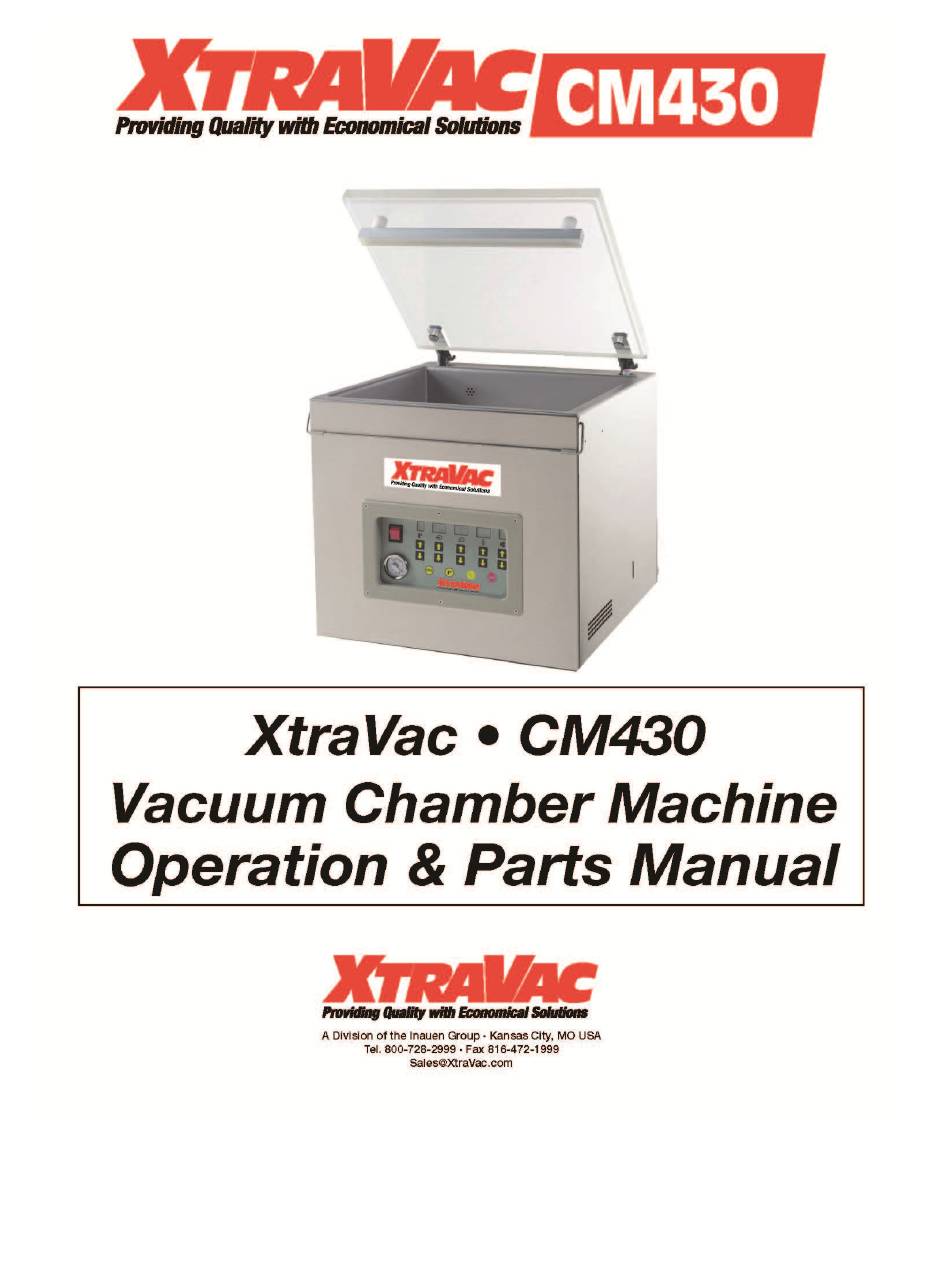

- Page 2 XtraVac CM430 Chamber Machine Operation and Parts Manual XtraVac CM430 Safe Operation Practices General Operation ．Read, understand, and follow all instructions in the manual and on the machine before starting. Keep this manual in a safe place for further and regular reference and for ordering replacement parts.
-
Page 3: Table Of Contents
XtraVac CM430 Chamber Machine Operation and Parts Manual Content Chapter 1：Safety precautions 1.1 Precautions of transportation, installation and packing 1.2 Precautions before and after machine starting Chapter 2：Overall description of the machine 2.1 Features of the machine 2.2 Function of the machine 2.3 Product proper for this machine... -
Page 4: Precautions Of Transportation, Installation And Packing
XtraVac CM430 Chamber Machine Operation and Parts Manual Chapter 1：Safety precautions 1.1 Precautions of transportation, installation and packing 1.1.1 Preparations before installation 1.1.1.1 Power requirement: Voltage: Look at the nameplate Current: Look at the nameplate Frequency: 50/60Hz Phase: 1Ø 1.1.1.2 Installation requirement 1.1.1.2.1 Prevent to install the machine in the environment full of dust and corrosive... - Page 5 XtraVac CM430 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM430 Chamber Machine...
-
Page 6: Precautions Before And After Machine Starting
XtraVac CM430 Chamber Machine Operation and Parts Manual 1.1.2 Preparations during transportation 1.1.2.1 The weight of this machine is 80kg, so that the loading capacity of any handling device is recommended to be more than 150kg. If you are not sure of the safe loading capacity, please contact the manufacturer of such handling device. - Page 7 XtraVac CM430 Chamber Machine Operation and Parts Manual 1.2.1.4 Check that whether all the safety related devices are normal, and notice that whether anyone within the danger zone. 1.2.1.5 Visual check that whether all mechanical and electric parts are normal, and also notice that whether the surrounding environment is clean.
-
Page 8: Chapter 2：Overall Description Of The Machine
XtraVac CM430 Chamber Machine Operation and Parts Manual Chapter 2：Overall description of the machine 2.1 Features of the machine 2.1.1 The machine main body is made of stainless steel with features of pretty appearance, well endurance and easy cleaning. 2.1.2 The machine adopts high vacuum pump specific for food packaging and micro- computerized auto control system with 10 sets of friendly memory function and independent display. -
Page 9: Specification Of The Machine
XtraVac CM430 Chamber Machine Operation and Parts Manual 2.5.2 Warning sign: stuck on the rear side of the machine 2.6 Specification of the machine XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com... - Page 10 XtraVac CM430 Chamber Machine Operation and Parts Manual Type XtraVac 430 Machine dimension 490 x 540 x 510 mm Vacuum chamber dimension 435 x 425 x 170 mm Sealing line dimension 420 mm X1 Optional accessory Nitrogen filling function Machine weight...
-
Page 11: Chapter 3：Function Description Of The Pushbuttons On The Panel
XtraVac CM430 Chamber Machine Operation and Parts Manual Chapter 3：Function description of the pushbuttons on the panel Memory set display (10 sets) Vacuum time display Nitrogen filling time display Sealing time display Cooling time display Memory release key Memory input key... - Page 12 XtraVac CM430 Chamber Machine Operation and Parts Manual 3.1 Memory set display(A): display the current memory set (e.g. ”3” means the 3 set) 3.2 Vacuum time display(B): display the current setting of vacuum time (unit: 1/s) 3.3 Nitrogen filling time display(C): display the current setting of nitrogen filling time (unit: 1/s) 3.4 Sealing time display(D): display the current setting of sealing time (unit: 0.1/s)
-
Page 13: Chapter 4：Instructions Of Operation, Maintenance And Troubleshooting
XtraVac CM430 Chamber Machine Operation and Parts Manual Chapter 4：Instructions of operation, maintenance and troubleshooting 4.1 Operation sequence: 4.1.1 Press power switch (057), then the indicator of the display screen is lit. 4.1.2 Press “memory release” key, then the display screen starts flashing. - Page 14 XtraVac CM430 Chamber Machine Operation and Parts Manual 4.2.6 Detail drawing of the oil pump 1. Oil filling hole 2. Oil sight glass 3. Oil draining hole 4.3 Troubleshooting Situation Reason Measure Sealing line is not Heat-resistance cloth is Replace it...
-
Page 15: Chapter 5：Related Environment And Accessories Of The Machine
XtraVac CM430 Chamber Machine Operation and Parts Manual Chapter 5：Related environment and accessories of the machine 5.1 Accessory: 5.1.1 Standard accessory: 5.1.1.1 Heat-resistance cloth: 1 piece 5.1.1.2 Heating wire: 1 pieces 5.1.2 Optional accessory 5.1.2.1 Nitrogen filling function 5.1.2.2 Nitrogen container: 6000 liters. - Page 16 XtraVac CM430 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM430 Chamber Machine...
- Page 17 XtraVac CM430 Chamber Machine Operation and Parts Manual XtraVac430 Description Part Number No Description Part Number FOOT PAD XVT466707 20 SEALING PAD XVT456318 VACUUM CHAMBER XVT467819 21 O-RING XVT457473 GLAND XVT463016 22 PE PAD LARGE HOLE XVT462166 UPPER LID XVT457469 23...
- Page 18 XtraVac CM430 Chamber Machine Operation and Parts Manual XtraVac430 No Description Part Number Description Part Number FLAT WASHER FSC451067 70 VACUUM PUMP 110v XVT65823 RUBBER PAD XVT468001 VACUUM PUMP 2200v XVT77387 INNER HEX SCREW XVT467821 71 BOARD XVT460203 SPRING XVT467852 72...
- Page 19 XtraVac CM430 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM430 Chamber Machine...
