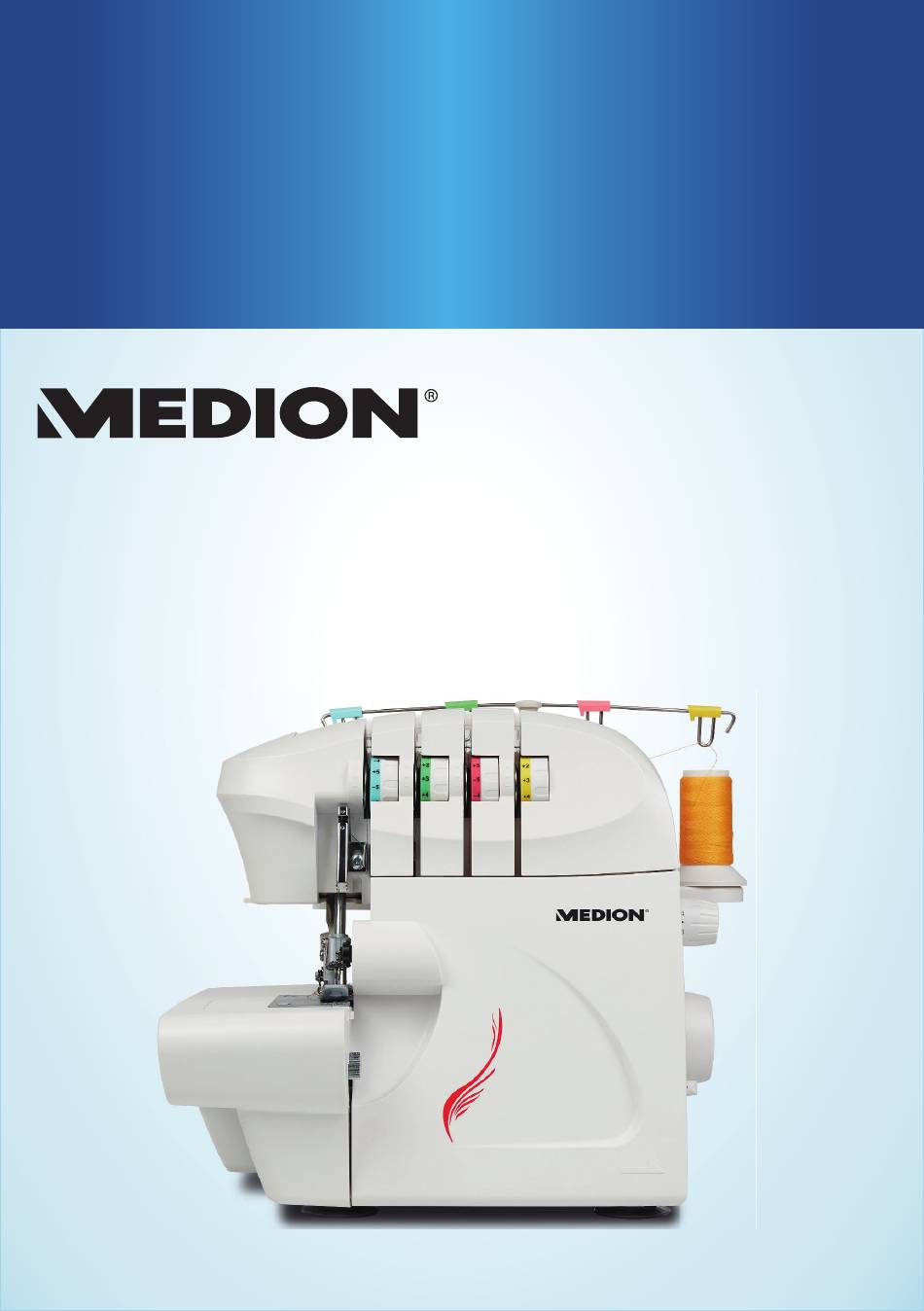

Page 1 User Manual OVERLOCKER...
Page 2: Table Of Contents
Contents Overview ..................4 Device parts ..................6 About this user manual ..............10 Safety information .................13 Package contents ................16 Before use ..................17 Operation ..................21 Threading the loopers and needles ..........24 Test run ..................30 Cutting threads ................30 Adjusting the thread tension ............31 Overview of machine settings ............
Page 3 Overview...
Page 4: Overview
Overview...
Page 5 Overview...
Page 6: Device Parts
Appliance parts Appliance parts Lever for raising the presser foot (on Yarn needles the back of the appliance) Handle Sewing light cover Setting screw for the presser foot Telescopic thread guide pressure Thread tension selector for the left Stitch length control needle Thread tension selector for the right Rear thread guide...
Page 7 Contents Contents Overview ......................4 Device parts ..................... 6 About this user manual ..................10 Explanation of symbols ..................10 Proper use ......................11 Declaration of Conformity .................12 Safety information ..................13 Keep children away from electrical appliances ..........13 Mains cable and power supply ................13 Never carry out repairs yourself ...............14 General information ..................14 Handle the appliance with care ...............15...
Page 8 Contents Threading the right needle ................27 Threading the left needle ................28 Test run ......................30 Cutting threads ....................30 Adjusting the thread tension ................. 31 Adjusting the thread tension for needle threads ......... 32 Adjusting the thread tension for looper threads.......... 32 Overview of machine settings ...............33 Overview of yarn and needles ..............
Page 9 Contents Disposal ......................61 Technical speciﬁ cations ................. 62 Service information ..................63 Legal notice ....................64 Privacy statement ..................65...
Page 10: About This User Manual
About this user manual Thank you for choosing our product. We hope you enjoy using this appliance. Read the safety instructions carefully before using the appliance for the ﬁ rst time. Note the warnings on the appliance and in the user manual. Always keep the user manual close to hand.
Page 11: Proper Use
About this user manual Follow the instructions in the user manual! SEWING TIP Sewing tips to make work easier Declaration of conformity (see "Declaration of conformity" section): Products that feature this symbol meet the requirements of the EC directives. Protection class II Electrical appliances in protection class II are appliances that have double and/or reinforced insulation throughout, and do not have an option for connecting a protective earth.
Page 12: Declaration Of Conformity
About this user manual Declaration of Conformity Medion AG hereby declares that the product conforms to the following European requirements: • EMC Directive 2014/30/EU • Low Voltage Directive 2014/35/EU • Ecodesign Directive 2009/125/EC • RoHS Directive 2011/65/EU.
Page 13: Safety Information
Safety information Safety information Keep children away from electrical appliances − This appliance can be used by children aged 8 years and above, by people with reduced physical, sensory or mental capabilities, or people who lack experience and/or knowledge, if proper supervision is provided or if these people have been instructed in how to use the appliance safely and have fully understood the possible dangers.
Page 14: Never Carry Out Repairs Yourself
Safety information − Switch off the sewing machine and unplug the mains plug for the following tasks: threading the needle, replacing the needle, setting the presser foot, cleaning and maintenance work, at the end of sewing work and when work is interrupted. Never carry out repairs yourself −...
Page 15: Handle The Appliance With Care
Safety information Handle the appliance with care − The sewing machine has suction feet for stability. Nevertheless, ensure that the machine is placed on a stable, level work surface and that all four feet are touching the work surface. − When the appliance is in use, the air vents must remain free: do not allow any foreign objects (e.g.
Page 16: Package Contents
Package contents Package contents Please check your purchase to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase. • Overlock sewing machine • Foot control, type HKT72C • User manual • Accessories (overview of contents on next page) DANGER! Risk of choking and suffocation! Packaging ﬁ...
Page 17: Before Use
Before use Before use Accessories The following accessories can be found in the work table accessory compartment. For accessibility, see “Work table and accessory compartment” on page 23. Needle set Tweezers Replacement for upper knife Oil can (without contents) Replacement for lower knife Spool caps (4x) Screwdrivers (small, medium Two-thread converter...
Page 18: Setting The Telescopic Thread Guide
Before use Setting the telescopic thread guide − Pull the telescopic thread guide (3) all the way out before threading. − Turn the telescopic thread guide until you hear it click into place and in such a way that the thread guides are directly above the spool pin (1).
Page 19: Spool Net
Before use Spool net Polyester or coarse nylon threads work loose when unwinding from the bobbin. Therefore, use the supplied spool net for such yarns to ensure the thread feeds uniformly. − When the yarn has not yet been threaded, pull the net from above over the spool.
Page 20: Connecting The Foot Control
Before use Connecting the foot control Connect the coupling connector for the supplied foot control to the connector housing (25) on the machine and then plug the mains plug into the socket. The mains switch (26) switches on both the machine and the sewing light.
Page 21: Operation
Operation Safety switch This machine is equipped with a micro safety switch. Operation is shut-off when the front ﬂ ap (12) is opened. Close the front ﬂ ap before beginning to sew. Operation Handwheel Always turn the handwheel (27) towards you. Raising and lowering the presser foot ...
Page 22: Front Fl Ap
Operation Front ﬂ ap To open the front ﬂ ap (12), push the notch as far as possible to the right and then pull the front ﬂ ap towards you. To close the front ﬂ ap, fold it upwards and hold in place until it slides into its closed position due to a pre-tensioned spring.
Page 23: Thread Cutter
Operation Thread cutter Cut the threads using the thread cutter (19) on the side of the sewing machine or using scissors. Leave approx. 15 cm of thread hanging out the back of the needle eye. Work table and accessory compartment It is advisable to use the free arm to make sewing sleeves or trouser leg holes easier.
Page 24: Threading The Loopers And Needles
Threading the loopers and needles Threading the loopers and needles General information on threading Threading takes place in the following order: 1. STEP 1 upper looper 2. STEP 2 lower looper yellow 3. STEP 3 right needle green 4. STEP 4 left needle blue Correct threading is essential to ensure that stitching is even and to prevent the thread from...
Page 25: Threading The Upper Looper
Threading the loopers and needles Threading the upper looper 1. Open the front ﬂ ap. 2. Guide the thread through the eye on the telescopic thread guide (3). Take care to ensure that the yarn is thread from back to front. 3.
Page 26: Threading The Lower Looper
Threading the loopers and needles Threading the lower looper 1. Open the front ﬂ ap. 2. Turn the handwheel towards you until the lower looper (34) is in a favourable position for threading. 3. Guide the thread through the eye on the telescopic thread guide.
Page 27: Threading The Right Needle
Threading the loopers and needles 11. Thread the yarn from front to back into the looper eye (B). 12. Pull the end of the thread approx. 10 cm through the looper eye and place the thread to the back. Threading the right needle 1.
Page 28: Threading The Left Needle
Threading the loopers and needles 6. First, guide the thread through the thread guide for the right thread (8) and then through the thread guide for both needle threads (9). 7. Guide the thread through the upper slit on the thread guide for the needle yarn (10). 8.
Page 29 Threading the loopers and needles 6. First, guide the thread through the thread guide for both needle threads. 7. Guide the thread through the lower slit on the thread guide for the needle yarn. 8. Hook the thread in the left thread guide for the needle bar and then thread it through the needle eye of the left needle from front to back.
Page 30: Test Run
Test run Test run When yarn has been threaded for the ﬁ rst time, or yarn has been re-threaded after a torn thread during sewing, proceed as follows: 1. Raise the presser foot by lifting up the lever (20) on the back of the appliance. 2.
Page 31: Adjusting The Thread Tension
Adjusting the thread tension Adjusting the thread tension The required thread tension changes depending on the type and thickness of the yarn and fabric. 1. Check the seams and adjust the machine to the thread tension accordingly. Thread tension: 2. Turn the thread tension selector (4)–(7) to a lower number (upward): there is less tension 3.
Page 32: Adjusting The Thread Tension For Needle Threads
Adjusting the thread tension Adjusting the thread tension for needle threads Thread on the left needle is Thread on the right needle too loose. is too loose. Front side Front side Rear side Rear side Increase needle thread Increase needle thread tension on the left.
Page 33: Overview Of Machine Settings
Overview of machine settings...
Page 34 Overview of machine settings...
Page 35 Overview of machine settings...
Page 36 Overview of machine settings...
Page 37 Overview of machine settings...
Page 38 Overview of machine settings...
Page 39: Overview Of Yarn And Needles
Overview of yarn and needles...
Page 40: Changing The Thread
Changing the thread Changing the thread The following approach makes changing the thread extremely simple, removing the need to completely re-thread. 1. Raise the presser foot (13). 2. Set the thread tension for the desired thread to -5 to loosen it fully. 3.
Page 41: Setting The Stitch Length
Setting the stitch length Setting the stitch length Turn the stitch length control (23) until the desired length is shown. The higher the number, the longer the stitch. The stitch length can be set from F (~1 mm) to 4 mm. Most overlocking work is carried out with a stitch length of 3 mm.
Page 42: The Ideal Cutting Width
Setting the cutting width 4. The cutting width set is shown on the front edge of the throat plate. When the desired stitch width is set, the edge of the knife ﬁ tting and the respective cutting width marking on the throat plate line up. 5.
Page 43: The Cutting Width Is Too Narrow
Setting the cutting width The cutting width is too narrow The loops of the looper threads are too far over the edge of the fabric. 1. Turning the cutting width setting control anti- clockwise moves the lower knife to the right and increases the cutting width.
Page 44: Disengaging The Upper Knife
Disengaging the upper knife Disengaging the upper knife If you would like to sew without cutting the edges at the same time, you can disengage the upper knife. 1. Switch off the machine and pull out the mains plug. 2. Open the front ﬂ ap (12). 3.
Page 45: Converting To Two-Thread Operation
Converting to two-thread operation CAUTION! Risk of crushing The spring of the knife ﬁ tting dial is under high tension and the dial can therefore spring back when returning to the original position and there is a risk of crushing ﬁ ngers. −...
Page 46 Converting to two-thread operation 6. Then carefully turn the two-thread converter to the left and ensure that the point pin on the two-thread converter locks into place in the looper eye. If necessary, use the tweezers to help. 7. Follow the speciﬁ ed steps in the reverse order to remove the two-thread converter.
Page 47: Tight And Loose Chaining With Three Threads
Tight and loose chaining with three threads Tight and loose chaining with three threads This machine can be converted from chaining four to three threads. − Remove either the left or right needle (depending on the required seam) and the corresponding thread (see also “Replacing needles”...
Page 48 Tight and loose chaining with three threads In case of exclusive use of the left needle the stitch width is 6 mm. 6 mm Rear side Front side...
Page 49: Stitch Fi Nger Control
Stitch ﬁ nger control Stitch ﬁ nger control The stitch ﬁ nger must be pulled back for rolled seams. To do so, set the stitch ﬁ nger control to "R". 1. Switch off the machine. 2. Open the front ﬂ ap (12). 3.
Page 50 Stitch ﬁ nger control The stitch ﬁ nger control must be set to "S" for all standard overlock stitches. 1. Switch off the machine. 2. Open the front ﬂ ap. 3. Disengage the upper knife (26), as described in section “Disengaging the upper knife” on page 4.
Page 51: Differential Feed
Differential feed Differential feed The differential feed prevents seams from becoming wavy on knit fabrics and prevents layers of fabric from slipping. It also prevents lightweight fabrics from puckering. Functionality The machine has two sets of feed dogs, one front set (A) and one rear set (B).
Page 52: Positive Differential Feed
Differential feed Positive differential feed With positive differential feed, the front feed dogs (A) move further than the rear feed dogs (B). This "amasses" fabric under the presser foot, preventing the fabric from becoming wavy. Negative differential feed With negative differential feed, the front feed dogs (A) do not move as much as the rear feed dogs (B).
Page 53: Setting The Differential Feed
Differential feed Setting the differential feed The differential feed is set by turning the differential feed control (28). The feed can also be set while sewing. Use the following table to select a setting: Application Feed type Setting Positive Non-wavy seams, de- differential 1–2 sired puckering...
Page 54: Setting The Presser Foot Pressure
Setting the presser foot pressure Setting the presser foot pressure The presser foot pressure is set correctly for all common sewing tasks as standard and does not need to be adjusted. If it nevertheless becomes necessary to adjust the pressure of the presser foot, you can regulate this using the setting screw for the presser foot pressure (22) on top of the machine.
Page 55: Replacing Needles
Replacing needles Replacing needles This machine is ﬁ tted with type 2022 80/11; 80/12 or 90/14 needles. NOTICE! Risk of damage! Bent or blunt needles can cause damage to the machine and material. − Switch off the machine. − Replace the defective needle. 1.
Page 56: Replacing The Knife
Replacing the knife Replacing the knife Switch off the machine and pull out the mains plug before replacing the knife. Replacing the lower knife Replace the lower knife in this way when it becomes blunt: 1. position the upper knife (29) upwards, as described above in section “Disengaging the upper knife”...
Page 57 Replacing the knife − When replacing, proceed carefully and do not exert any pressure towards the dial with the screwdriver. 3. Insert a new upper knife so that the upper edge of the knife lines up with the knife ﬁ tting. 4.
Page 58: Troubleshooting
Troubleshooting Troubleshooting Please read this section before contacting our Service Centre. Problem Cause Solution Page Needles break Needles are bent, blunt or the Insert a new needle tip is damaged Needles are inserted Insert the needles cor- incorrectly rectly in the needle bar The fabric was pulled too Guide the fabric gently roughly...
Page 59: Storage
Storage Problem Cause Solution Page Seams pucker Thread tension is too high Adjust the thread tension Yarn has not been threaded Thread the yarn correctly correctly Yarn is stuck Check the ﬂ ow of the individual threads Fabric feed has not been Set the feed to 1–2 adjusted Fabric is not cut...
Page 60: Cleaning And Lubrication
Cleaning and lubrication Cleaning and lubrication To ensure your machine works properly, you must clean the mechanism from time to time using the brush from the accessory box and oil the relevant points. Use only high-quality sewing machine oil to oil this sewing machine.
Page 61: Disposal
Disposal 4. Close the front ﬂ ap. 5. For test purposes, now sew test fabric, to check that the machine is working correctly. The excess oil is eliminated directly, without causing damage to your actual material. Disposal Packaging Your overlock sewing machine has been packaged to protect it from damage in transit.
Page 62: Technical Specifi Cations
Technical speciﬁ cations Voltage: AC 220–240 V ~ 50 Hz Power consumption: Total output: 90 W Motor: 90 W Light: 1 W (LED) Foot control: Type: HKT72C Rated voltage: 220–240V ~ 50 Hz Protection class II Number of threads: 4 or 3 Number of needles: 2 or 1 Sewing speed:...
Page 63: Service Information
• In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will ﬁ nd our Service Community at community.medion.com. • Alternatively, use our contact form at www.medion.com/contact.
Page 64: Legal Notice
This user manual is protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the above address for returns. Please always contact...
Page 65: Privacy Statement
GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 of the GDPR in conjunction with paragraph 19 of the BDSG). For MEDION AG, this is the state ofﬁ cial for data protection and freedom of information North Rhine-Westphalia, PO box 200444, 40212 Düsseldorf, Germany, www.ldi.nrw.de.
Page 67 PRODUCED IN CHINA FOR: MEDION AG AM ZEHNTHOF 77 45307 ESSEN GERMANY AFTER SALES SUPPORT 709395 0333 3213106 1 800 992508 Standard local land- Free hotline line call rate www.medion.co.uk YEAR MODEL: WARRANTY 02/2021 MD 19077...
