http://www.fulterer.com
http://www.fultererusa.com

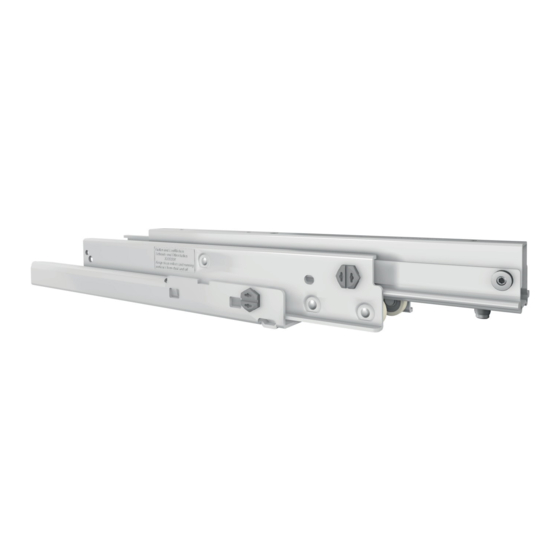

FR771 Progressive-Action Full Extension, Bottom Mount
LGA tested according to DIN 4554
standard at 50.000 Double Cycles
250 lbs. Capacity, with Matching Top Guide
(US Patent No. 6,199,966)
Mounting Instructions
#126 08/6/07 H.S.
page 1 of 5
Advertisement
Table of Contents
Related Manuals for Fulterer FR771
Summary of Contents for Fulterer FR771

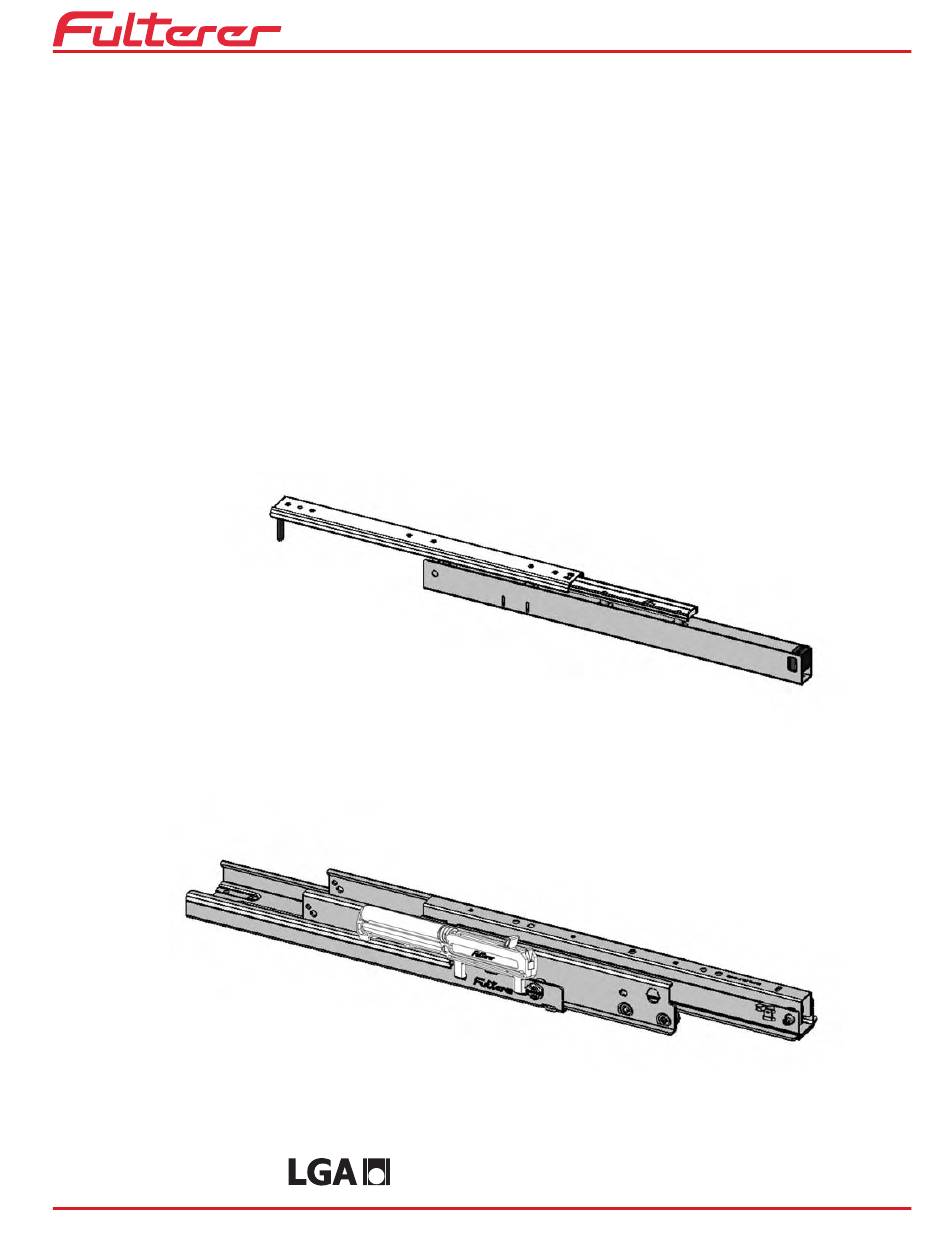

- Page 1 Mounting Instructions http://www.fulterer.com http://www.fultererusa.com FR771 Progressive-Action Full Extension, Bottom Mount 250 lbs. Capacity, with Matching Top Guide (US Patent No. 6,199,966) LGA tested according to DIN 4554 standard at 50.000 Double Cycles page 1 of 5 #126 08/6/07 H.S.
- Page 2 Mounting Instructions Mounting + FR777 Progressive-Action Pantry-Pullout Cabinet Profile mounts in cabinet as per drawing 1, 1a and according to the hole locations 1b. Important: Due to the high weight capacity and leverage created when fully loaded, we highly recommend to thru-bolt the cabinet profile at the last two holes (X) M6 thru bolts (DIN 931 or 7985A) and tee nuts are used.
- Page 3 Mounting Instructions Mounting + The Top Guide mounts as per drawing 2, 2a and according to hole locations. + The U-Profile of the Top Guide mounts as per drawing 3, 2a and according to the hole locations. Front View 39.6 (36.5 ) * use 4mm diameter (#6) countersunk screws...
- Page 4 + Tighten the Allen Head set screws at the same time adjusting the side Vertical and horizontal to side position (Illustration B). adjustments on the slide + Adjust the angle position on the FR771 as per (Illustration B). side adjustment Important: + Do not lubricate any part of the slide at any time!
- Page 5 Easy-Close 3401 for FR771 Mounting Instructions http://www.fulterer.com http://www.fultererusa.com Assemble parts as illustrated 1, 2, 3, 4, 5. Caution: 8300001 Clip springs on the right side Clip into place with piston in closed position only, to avoid bending the piston 6200516...
