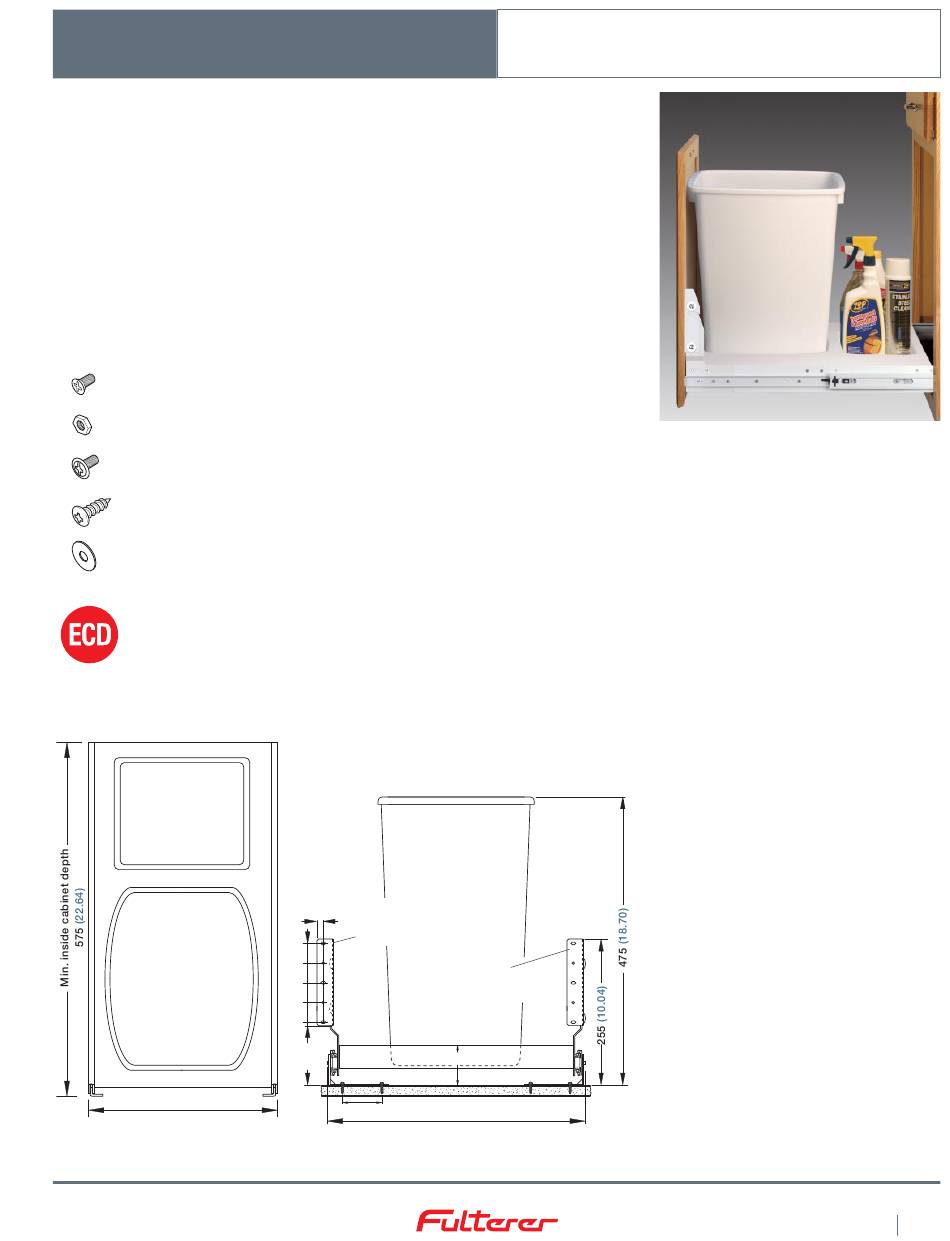

FR 3607
Supplied Parts List
A Drawer Slide, left (cabinet, middle and drawer profile with integrated ECD).
B Drawer Slide, right (cabinet, middle and drawer profile with integrated ECD).
C Bottom Mount Brackets
D1 Connecting Bracket
D2 Connecting Bracket with slot
D3 Support profile, left
D4 Support profile, right
F Tray (1 piece).
G Wire Support (1piece).
Screws:
(g) M4 x 8mm, zinc
(h) M4 Nut, zinc
( i ) M4 x 8mm, zinc
( j ) No. 8 x 5/8 in., zinc
( n) Washer
Storage Bin
34L (36 qt.)
Waste Basket
Inside cabinet width
288–465
(11.34 –18.30)
Adjustable
10
Door Front Bracket
facing outward
134
102
70
38
6
0
96
(3.78)
64
(2.52)
mm
(in.)
FR 3607: 288 – 465
Inside cabinet width
Mounting Instructions
Figure 1
Adjustable
Door Front Bracket
facing inward
75
(2.05)
(11.34 –18.30)
mm
(in.)
FR 3607
1 of 3
Advertisement
Related Manuals for Fulterer FR 3607
Summary of Contents for Fulterer FR 3607
- Page 1 Door Front Bracket facing outward Adjustable 34L (36 qt.) Door Front Bracket Waste Basket facing inward (2.05) (3.78) (2.52) Inside cabinet width (in.) FR 3607: 288 – 465 (11.34 –18.30) (in.) 288–465 Inside cabinet width (11.34 –18.30) 1 of 3...
- Page 2 Mounting Instructions FR 3607 Step 1. Identify all parts. The build-in width of the unit is set to its maximum of 476mm (18.75 in.) with tray F at 424mm (16.69 in.). If you are faced with a narrower cabinet inside width you have the option of cutting tray F down to the required size on a table saw.
- Page 3 Mounting Instructions FR 3607 Figure 3 FR 3609 ( j ) ( j ) ( j ) Drawer Profile FRONT ( j) Drawer Profile ( j) ( j) Step 3. Determine the location of the door front bracket using figure 1. Attach door with screws (j).
