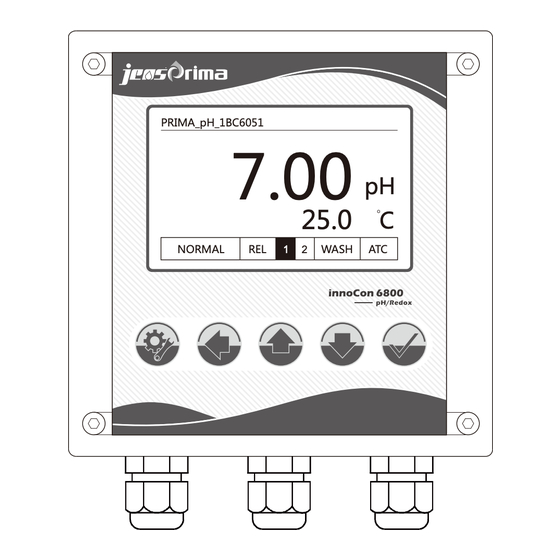

- Page 1 6800P Online pH/ORP Analyzer Operation Manual PRIMA_pH_1BC6051 7.00 25.0 NORMAL WASH JENSPRIMA INSTRUMENTS WALL MOUNTING...
-
Page 3: Table Of Contents
Sensor Installation ........... Electrical Connection ........... Display ............... Configuration Mode ........... General Setting ............Analysis System ............Output ............Interface ............Diagnosis ............Calibration Mode ............pH Calibration ............ORP Cabliration ............Maintenance ............Communications Protocol（RS485） ........Page 1 www.jensprima.com... -
Page 4: Safety
Sensor Please use sensors manufactured by JENSPRIMA; Damages to the instruments caused by the use of sensors not manufactured by JENSPRIMA within the warranty period will not be covered by the warranty. Only technicians authorized by jensprima can modify and update the instrument. -
Page 5: Product Introduction
Product Introduction General Information The innoCon 6800P intelligent controller is designed for water treatment and industrial process monitoring, with innoSens pH / ORP electrodes for measuring pH / redox potential and temperature in water. Automatic temperature compensation, a variety of installation methods, standard 4-20mA / RS485 and a variety of control functions output, Chinese and English menu, the user can program by their own. - Page 6 6800 Monitor Manual Technical Parameters innoCon 6800P Controller： Parameters Temperature Measurement range -2.00~16.00pH -2000~2000mV -10.0~130.0 ℃ Resolution 0.01pH 0.1 ℃ ±0.01pH ±1mV ±0.2 ℃ Accuracy Temp.Compensation method Pt 1000/NTC 10K Temp.compensation range -10.0~130.0 ℃ Ambient Temp. 0~70.0℃ Storage Temp.
-
Page 7: Installation
138mm Installation drawing Wall /pipe mounting Use 4 M5 screws for wall mounting Use U-pipe for pipe installation Page 5 www.jensprima.com... - Page 8 6800 Monitor Manual Installation of Sensor JENSPRIMA has many types of industrial electrodes that have a specific connection function. The most common installation methods are: immersion type, pipe type, flow type, tank installation and live bolt assembly type electrode tube installation.
- Page 9 Shielded wire -- （Temperature） wash -- Wash relay Empty feet -- （pH/ORP） Connect with the temperature probe RS485 output (Modbus RTU Protocol) Terminal 2 and terminal 3 must be short connected when the RS485 two-wire connection is made www.jensprima.com Page 7...
-
Page 10: Display
PRIMA_pH_1BC6051 OUTPUT1： 12.00 Arrows key OUTPUT2： 04.00 NORMAL WASH Entry into the setup mode is protected by password. The default password is 0022. to the previous menu. You can return to the measurement mode by pressing this Page 8 www.jensprima.com... - Page 11 → Relay 3 → Current 1 4.00mA → Current 2 4.00mA Entry into the setup mode is protected by password. The default password is 0022. to the previous menu. You can return to the measurement mode by pressing this www.jensprima.com Page 9...
- Page 12 Serial Number ▲ 1BH0001 3. Press “Menu” to return to previous menu. Restore 2. Select “Restore” and press “Enter”. Restore → YES → NO 3. Press upward and downward arrows to select YES or NO, and press “Enter”. www.jensprima.com...
-
Page 13: Analysis System
Optional ：Glass and Antimony Electrode previous menu. Damping 2. Select “Damping “ and press “Enter”. Damping ▲ Notes: The larger the damping index is, the more steadily and slowly the figure changes. Range : 0-20 previous menu. www.jensprima.com Page 11... -
Page 14: Output
Hysteresis : 0.10pH Optional ranges：0~2.00pH、0~200mV previous menu. Relay 2 2. Select “Relay2” and press “Enter”. Relay 2 ▲ ON/OFF Options： ON/OFF Action : Options： HI/LO Set point +4.00pH Optional ranges：2.00~16.00pH、-2000~2000mV Hysteresis: 0.10pH Optional ranges：0~2.00pH、0~200mV RS485 Modbus previous menu. www.jensprima.com Page 12... -
Page 15: Interface
Press “Enter” to test whether Relay3 is closed or open. → Current 1 4.00mA Press “Enter” to output 4mA, 12mA , 20mA compulsorily. → Current 2 4.00mA Press “Enter” to output 4mA, 12mA , 20mA compulsorily. 2. Press “Config” to return to previous menu. www.jensprima.com Page 13... -
Page 16: Calibration Mode
(at MTC only), select the first point the standard solution, press Enter to start cabration automatically, when stable, go to next page automatically Auto Calibration Store calibration results ▲ → YES Slope → NO 59.87 mV/pH Press ENTER key to next www.jensprima.com Page 14... -
Page 17: Orp Cabliration
→ Input Buffer : 0238mV Restore Wash and dry The electrode and put it into the standard solution, enter the standard solution value, after the reading value is stable, press the "OK" key to complete the calibration. www.jensprima.com Page 15... -
Page 18: Maintenance
Plug off the electrode cable and store the electrode in a special protective solution. Do not store the electrode in a dry environment or place the electrode in purified water. Store the glass electrode dow n in a not frozen indoor. www.jensprima.com Page 16... - Page 19 1=closed Relay1 status 0=release 1=closed Relay2 status 0=release 1=closed Relay1 ON/OFF 0=on 1=off Relay2 ON/OFF 0=on 1=off Relay3 ON/OFF 0=on 1=off Temp. sensor type 0=Pt1000 1=NTC10K Temperature unit 0='C 1='F pH sensor type 0=glass Temperature mode 1=manual www.jensprima.com Page 17...
- Page 20 Jensprima Instruments (Shanghai) Co., Ltd Web: www.jensprima.com Email: info@jensprima.com © 3 JENSPRIMA INSTRUMENTS, all rights reserved...
