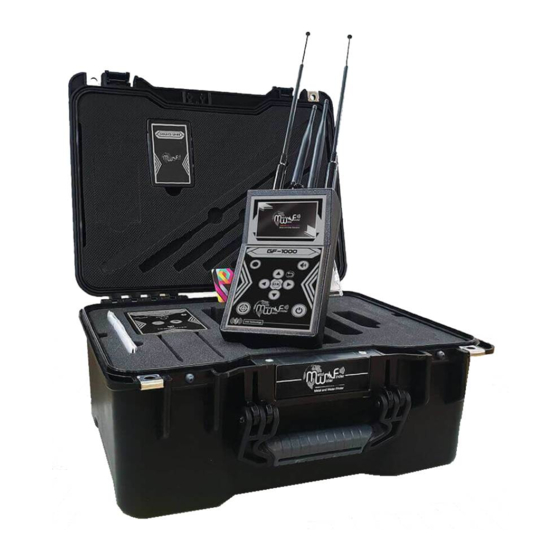

- Page 1 GF -1000 Metal and Water Finder USER’S MANUAL User's manual for GF 1000, the latest device to detect metals and gem stones with 33 targets WWW.MWF-USA.COM...
-
Page 2: Table Of Contents
CONTENTS Metal and Water Finder Contents Page Safety Information Page Technical Specifications Page Device Parts Page Main Control Unit Page Device Settings Page Get Started Page Long Range Locating System (LRL) Page Charging Setting Page Nots Page Page... -
Page 3: Safety Information
SAFTY INFORMATION It’s better to turn off mobile while The operating in high voltage areas using the device. would limit the results and performance Don't operate two devices with Don't store in high temperature or same method of search at the high humidity same place The operator Must remove any... -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS Search System : Long Range Locating System LRL Processing digital frequency signals to receive Search Principle: the energy of the targets' electrostatic fields . Operating Processor: MICROCONTLLER PIC18 & ARM 7 1.From 1 KHz To 30 KHz Operating Frequency: 2.Special frequencies for measurement and verification 3.Measurement of electrical resistance Ohm... - Page 5 TECHNICAL SPECIFICATIONS 200 M, With the ability to control the level of search DEPTH SEARCH:: depth through the depth control interface. 2500 M, With the ability to control the levels DISTANCE SEARCH: of the search distance through the distance control interface.
-
Page 6: Device Parts
DEVICE PARTS The Main Control Unit The main control unit of the device, through which the search criteria and settings for the device are determined, and it is communicated with the attached search units via wireless connection. CHARGER An electric charger to recharge the device's battery Values: Input: 100 - 240V AC / 50 - 60Hz / 0.5A Output: 5V Continuous / 2A / 10W. - Page 7 DEVICE PARTS TRANSCEIVER ANTENNAS The main control unit of the device, through which the search criteria and settings for the device are determined, and it is communicated with the attached search units via wireless connection. REINFORCEMENT UNIT Equipped with a built-in transmitter that works on two systems, a signal filtering system to confirm the location of the target, and a system equipped with ground waves with a system for accurate transmission and enhancement of the signal, this...
-
Page 8: Main Control Unit
THE MAIN UNIT FRONT INTERFACE Sockets for connecting the Power and lock switch transmitter and receiver antennas The key to tracking and focusing on goals Display screen The keys move up, down, right, and left Volume control key Screen brightness control switch Back key Enter key Page... - Page 9 THE MAIN UNIT BACKGROUND Laser indicator light Charging socket Installation of hand grip socket Audio output The battery compartment Page...
-
Page 10: Device Settings
The device will show the loading screen and then go to the main menu of search systems. GF 1000 Note : When the device is turned on for the first time, the device will display a screen that enables you to choose the system language... - Page 11 DEVICE SETTINGS Explanation of the information bar at the top of the screen of the main unit of the device The information bar facilitates and helps to quickly read the device settings and know its status from the battery level and brightness of the screen and know the time during the search process.
- Page 12 DEVICE SETTINGS Use the buttons ( ) to move between the menu options on the screen, then press the button ( ) to confirm the selection and to return to any position, press the button ( Settings menu To enter the settings menu, press the button ( ) from the main menu to move between the settings menu windows, and then press ( ) to enter the selected...
- Page 13 DEVICE SETTINGS Settings menu To set the values of the sound alerts, scroll down and press the ( ) button, then control the volume by going to the subwoofer icon, or you can hide the sound completely You can activate or cancel the vibration option and play the sound of clicking the keys of the main unit, in addition to activating and deactivating the headphones option.
- Page 14 DEVICE SETTINGS Settings menu To set the bluetooth system, go to the bluetooth settings window, then press the button ( ), then we turn on or off bluetooth through( To set the password, go to the password setting window and then press the button ( ).
- Page 15 Settings menu Verify device-product information (downloaded software version-device model-manufacturer information-build number-serial number of device -QRCODE image that enables you to go directly to the MWF website using the camera of any mobile “smart phone” device). GF 1000 Press the button (...
- Page 16 DEVICE SETTINGS Start Search To start the search process, select the search system icon from the main menu to enter the search system. On the screen, the long-range search system icon and the settings icon will appear: We will explain in detail the entry of the (Getting Started) section about the interfaces of the long-range search system.
-
Page 17: Get Started
Long Range Locator System START WORKING LONG RANGE LOCATOR (LRL) System features * This system is characterized by many new technologies added to our remote sensing system, unprecedented and exclusive technology, this system works on detection and remote search technology to locate targets and monitor them from long distances, directing the user and leading him to the target site directly. - Page 18 Long Range Locator System START WORKING The parts for Long Range System (LRL) Main Unit Transceiver Antennas Carrying handle page...
- Page 19 Long Range Locator System START WORKING Connect the antennas to the designated place on the front of the unit Place the handle at the bottom of the unit Note: Do not forget to remove the batteries from the unit before storage to ensure they are working properly page...
- Page 20 Long Range Locator System START WORKING Start Searching Select Long Range Locator system by choosing LRL icon then press button After entering the long-range detection system, the options for determining distance - target - and depth will appear on the screen. We start by specifying the target to be searched by moving between the 33 existing target icons displayed as follows: ZIRCON...
- Page 21 Long Range Locator System START WORKING Start Searching Long Range Locator interface To move between Target, Distance and Depth use these buttons To select the target and the search parameters use these buttons After selecting the search options, go to the search option to start searching then press the button Where we have an interface to choose between ground transmitter and filter.
- Page 22 Long Range Locator System START WORKING Start Searching Before selecting the ground transmitter or filter Turn on the soil support unit provide ground support unit with the appropriate battery Then press the (ON / OFF) button to turn on the unit and then wait for some time to connect to main unit via bluetooth system, where we notice that the blue light for the bluetooth symbol in the main unit stops flashing and thus the link between the...
- Page 23 The automatic tuning system (ATS) is a special and new invention registered for the MWF group, this system provides accurate and sure results in all types of soils and terrain, as this system automatically identifies the soil and gives the search automatic...
- Page 24 Long Range Locator System START WORKING Start Searching In the next step, the system search window appears, which shows the target direction compass and the search criteria from a distance and depth, as well as the laser light icon, which helps to easily identify the target point and the drilling point accurately in various circumstances day and night Diamond The user must carry the device through the carrying handle horizontal with the ground and...
- Page 25 START WORKING Long Range Locator System Start Searching First, we infuse the waves and elds coming out of the device, where we move the device by hand to the right, then left slowly, and then the hand that holds the device is steady Right Left page...
- Page 26 START WORKING Long Range Locator System Start Searching If the target is found, the device will receive a read and signal by automatically changing the device from the normal path to which the target was located. This direction is the direction of the target's location, and then the device is installed in the same direction.
- Page 27 START WORKING Long Range Locator System Start Searching After confirming the target path, we press the button ( ) to ensure accurate tracking of the target path and avoid the trouble of drilling at the wrong point Diamond Indication of left deviation in the direction of the specified target path with the change of the alert Diamond Indication of right deviation in the direction of the specified target path with the change of...
- Page 28 Long Range Locator System START WORKING Start Searching How to locate the target After confirming more than one reading of the direction of the presence of target we press the move button to install the target path and we walk in the same direction and normal to carry the device.Note during which the device issued alerts to indicate that walking is in the right track towards the indicator.
- Page 29 START WORKING Long Range Locator System There is another way for us to more accurately determine where the target is located We are the process of squaring the target site by taking four readings of the target , point from four angles Square three meters from the target site, we will notice the intersection point of the four readings Theoretically it will be the midpoint of the target...
- Page 30 Long Range Locator System START WORKING How to detect the target depth Reverse direction of the transmission unit Medium speed The device turns off its path towards the target location Soil This distance is equal to the depth of the target Target Page...
- Page 31 Long Range Locator System START WORKING Start Searching Now to make sure the target type in whether it is metallic metal or buried metal target using filter system We return to the main long-term search window and repeatedly click on the option to start searching Then we choose the option Filter Then we implant the soil support unit in the ground well, about 10 meters from the target...
- Page 32 Long Range Locator System START WORKING Signal filtering system to confirm the location of the target, and the system equipped with ground waves with the system for accurate transmission and enhancement of the signal, this transmitter works with a bluetooth system to communicate with the main unit through a special control interface to operate and close these systems through the system interface It provides a signal filtering system, to avoid any interference caused by any radio or...
-
Page 33: Charging Setting
BATTERY CHARGING Charging Information You can continue charging the battery when the device is closed or switched on, knowing the added charge level All in real time with smart charging systems. When the device is connected to the charger in the off state, the battery charge progress indicator will appear on the screen in percentage As shown: The device also offers the battery and smart charging feature, which gives... -
Page 34: Nots
NOTE Page... - Page 35 Metal and Water Finder Turkey - istanbul United States of America - illinois www.mwf-metaldetectors.com www.mwf-usa.com info@mwf-metaldetectors.com info@mwf-usa.com +90 ( 212 ) 222 0946 +1 ( 708 ) 364 9602 +90 ( 212 ) 222 0947...
