- Page 1 Nokeval FD100 series User Manual...
-
Page 2: Table Of Contents
Contents Document information ............................2 FD100A4 and FD100A6 field displays ........................ 3 Power supply connection ..........................4 Configuring ................................ 5 Specifications ..............................7 Document information Device Scope: FD100A4 (4-digit device) FD100A6 (6-digit device) Case versions: 1.0 to 1.0 Document Type: manual Document ID: 3103... -
Page 3: Fd100A4 And Fd100A6 Field Displays

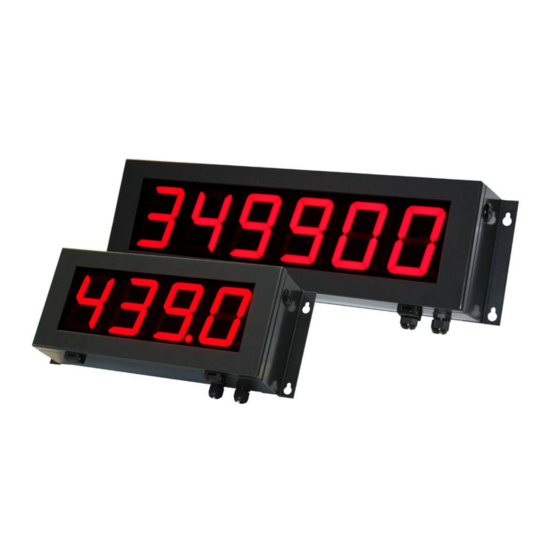

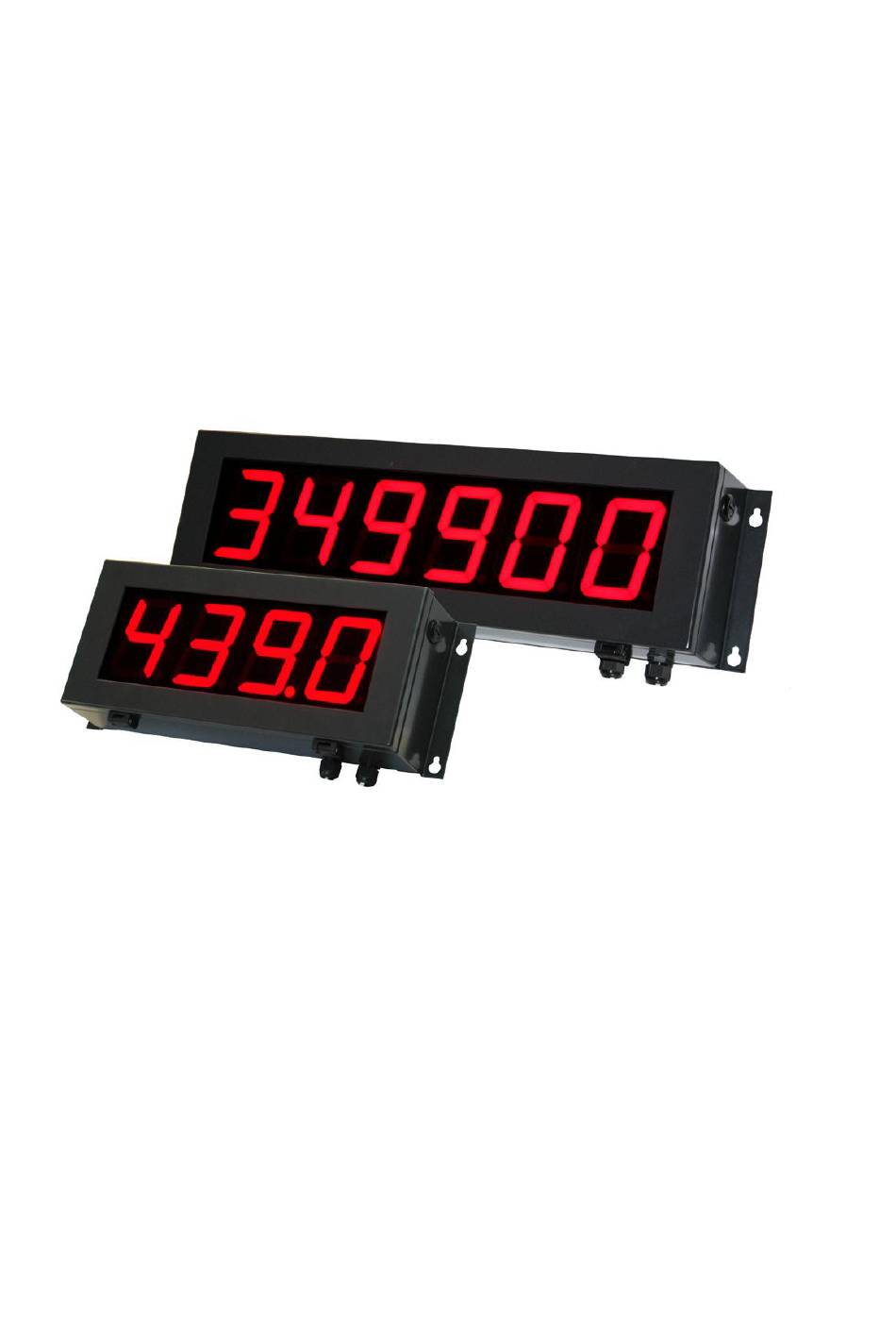

FD100A4 and FD100A6 field displays Introduction The FD100 series includes 4 and 6 digit models. Digit size is 100mm. The displays are based on input cards of the panel meter series 2000 giving over 100 combinations. The unit has wide power supply range of 41...265 VAC or 20...28 VAC/VDC depending on model. -
Page 4: Power Supply Connection
Symbols and markings Protective earth connector Alternating or direct current Power supply connection The unit has wide power supply range of 41...265 VAC or 20...28 VAC/VDC depending on model. There are two types of power supply connectors; grey connector color is used to indicate higher voltages and green color to indicate 24 V. -
Page 5: Configuring
FD100A4-F24 and FD100A6-F24 24V Power supply 20...28 VAC/VDC Electronics No polarity unit Small display and buttons Two cable glands for configuration Configuring The display unit is configured with the small display and buttons inside the main case. Electronics unit To reach electronics unit open the main case as explained before. Use the small display and four buttons to configure the display unit. - Page 6 Jumper configurations If corresponding 2000-series manual informs that jumpers need to be changed, see below instructions to reach the jumpers. 1. Detach all connectors 2. Open these 4 screws to open the electronics case lid to reach internal measurement cards...
-
Page 7: Specifications
Electrical safety EN 61010-1 Classification Fixed equipment, permanently connected equipment, with protective earth See additional input and output card specifications from corresponding 2000-series manual. Nokeval Nokeval Oy, Yrittäjäkatu 12, 37100 Nokia, Finland, Tel. +358 3424800, fax. +358 3422066, sales@nokeval.com, www.nokeval.com...
