Summary of Contents for Nokeval 301

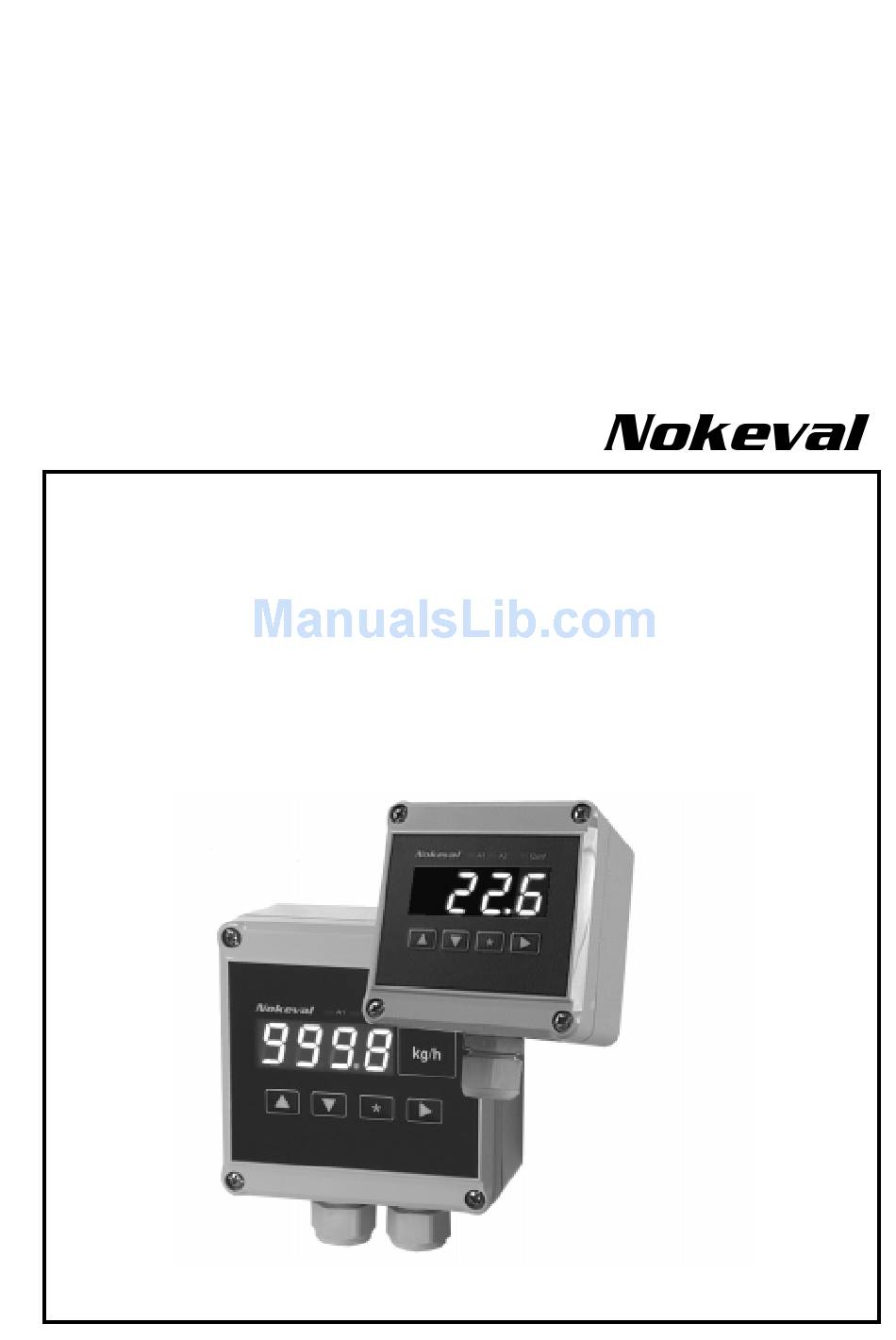

- Page 1 No 050101 User's Manual Models 301 & 302 and 305 & 306...
- Page 2 Input terminals ..................7 Alarm connections, only with model 302 ..........7 Measuring mode ........................7 Configuration mode ......................7 Alarms off ....................7 Manufacturer: Nokeval Oy Tel. +358 (0)3 342 4800 Yrittäjäkatu 12 Fax. +358 (0)3 342 2066 37100 NOKIA email mail@nokeval.com...
-
Page 3: Models
(ABS) IP65 size: 100 x 100 mm basic our powered models 2011 and 2021. Password is model 301 without alarms and model 302 with two settable for entering configuration and alarm stages. alarm contacts. Correspondingly models 305 and... -
Page 4: Models
Display scaling -999..+9999 Accuracy 0.05% of span continuous 4,8 V = 4-20 mA (comparable 240 Ω, non resistive) Input voltage drop 301 continuous 7,3 V = 4-20 mA (comparable 340 Ω, non resistive) alarms with Alarm relays (option) 2 solid state relays (SSR), max. 250 VAC, 150 mA... -
Page 5: Front Panel Buttons And Indicators
Alarm indicator LED's A1..A2. C o n f 5620 Place for dimension (301 and 302) -arrow-buttons are used to change numerical value and for moving on configuration menu. Enter selections in Exit from selected configuration stage configuration stage... -
Page 6: Configuration
Configuration Configuration can be started by pressing and holding Alarm values and hysteresis are selected in - and -keys simultaneously for 2 seconds. Arrow configuration mode. keys moves up and down in main menu. Desired Changes can be restored by selecting text UnDO into function is selected with -key. -
Page 7: Description
value is set larger than measuring range (full span). Description Manual reset is done with -key from front panel. An example of Manual reset / hold function: Input terminals High level alarm is 100 °C and low level -5 °C. When 1 (+) signal loop (4…20mA) input is over 100 °C, LED A2 lits (relay A2 energized) 2 (-) signal loop... -
Page 8: Nokeval Oy Yrittäjäkatu
Finally exit to the configuration menu with key. doing that, ensure that the input signal is correct (using a separate mA meter) and that the scaling (Lo, Hi) is appropriate. Manufacturer: Nokeval Oy Tel. +358 (0)3 342 4800 Yrittäjäkatu 12 Fax. +358 (0)3 342 2066 37100 NOKIA email mail@nokeval.com...
Need help?
Do you have a question about the 301 and is the answer not in the manual?
Questions and answers
Не показывает вес
The Nokeval 301 may not be displaying weight due to the following reasons:
1. No display: Check the voltage between pins 1 and 2; pin 1 should be positive. Remove the positive wire from terminal block 1 and measure current between the top of pin 1 terminal block screw and the removed wire. The current should be at least 4mA. If there is still no display, the device needs service.
2. Keyboard not working: For model 301, ensure the “Remove for keylock” or “KEYLOCK” jumper header is not closed.
One or both of these issues may cause the display not to show weight.
