1. Description

SingleBEC is a linear regulator to provide power for a standard servo with a maximum input
voltage of 6V. The SingleBEC can also be used to provide power for the control units of helicopters
or multi-rotor aircraft.
Its great advantage is that it allows the use of standard servos in systems designed for the so-called
High-Voltage servos. Due to its dimensions, the SingleBEC is designed even for small airplane
models. Its internal filtering improves the quality of the output voltage for the servo.
The small size and low weight of the SingleBEC allows for very simple installation in all parts of
the plane. Due to its performance parameters, the Single BEC is suitable for the category of micro
and mini servos with load strengths of @ 25 kg/cm at 6V.

2. Circuitry

SingleBEC has one input from where a JR three-wire cable (female) lead, and one output lead with
a JR three-wire cable with the security tab.
SingleBEC has a fixed output voltage of 5.5V. It is therefore designed for servos to 6V. The
SingleBEC contains an internal, resettable fuse which protects against short circuit and overload. If a
short circuit or overload occurs, the output voltage decreases to zero until the short circuit or overload
is removed.
Modellbau Lindinger GmbH

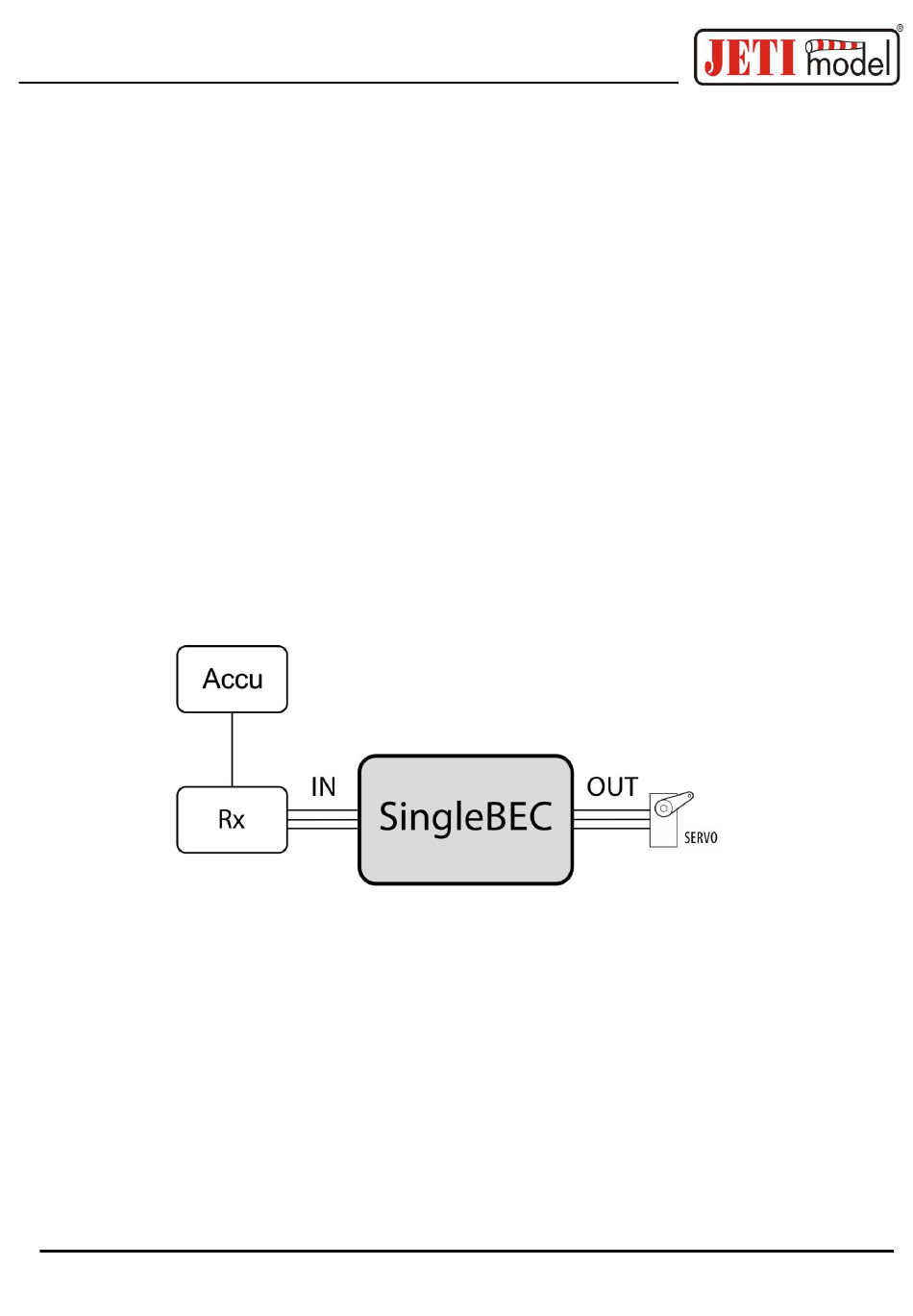

Fig. 1: Application wiring of SingleBEC
