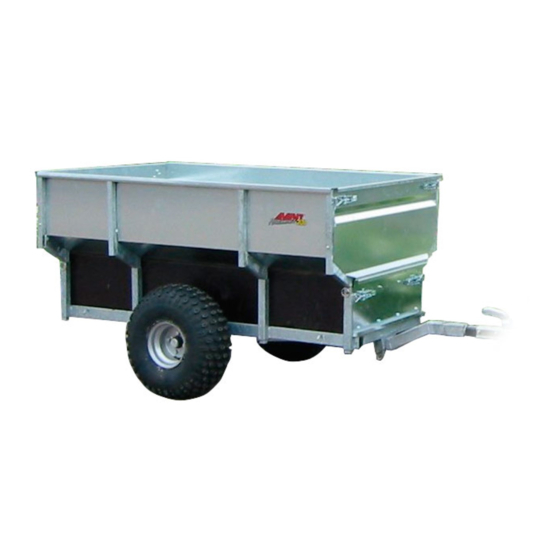

Assembly manual for trailer A21110 & A21111
1. Drawbar

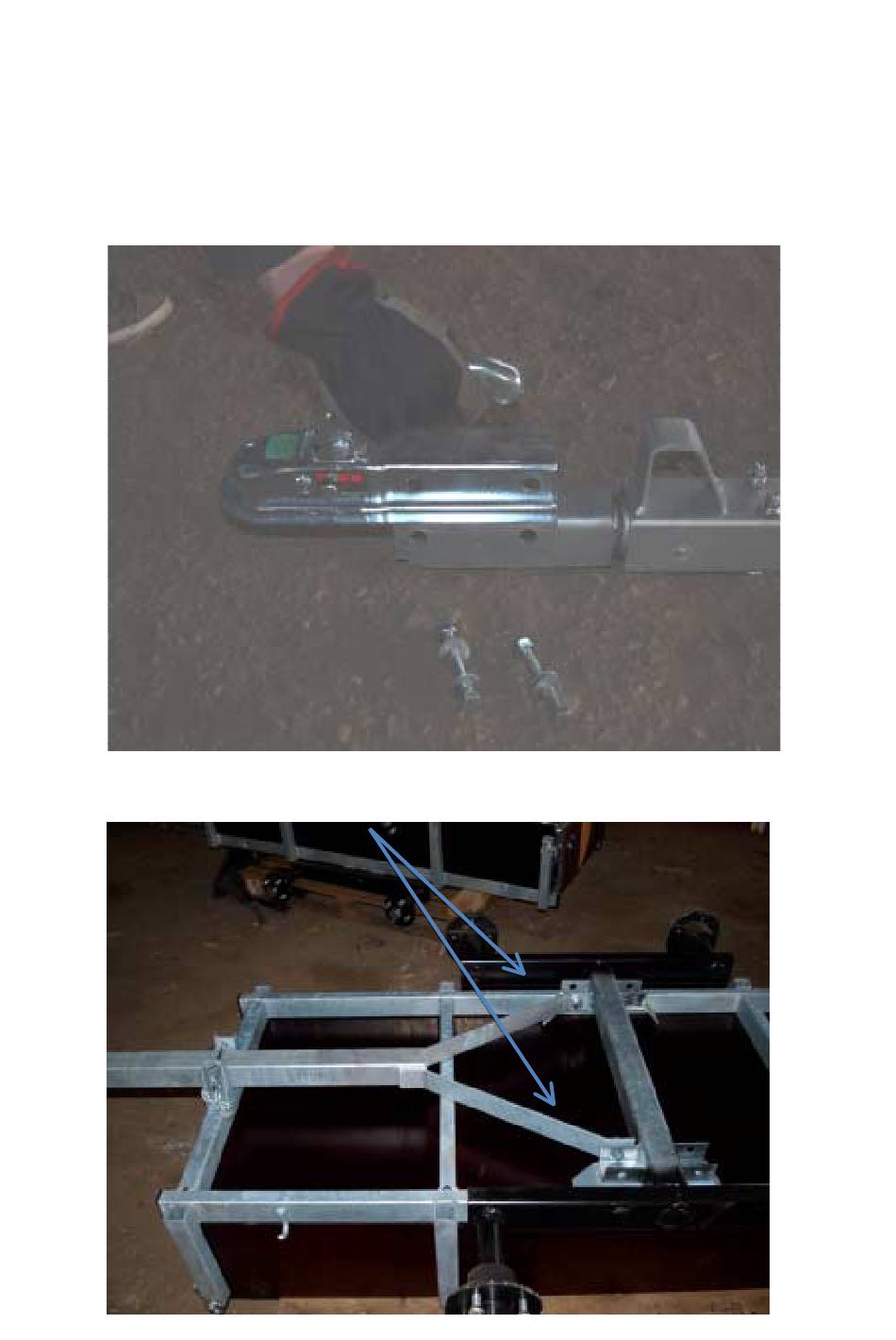

Install the towing coupling in the drawbar's rotating end, as shown in picture below. The
coupling fits tight, so a hammer might be necessary.
Turn the trailer upside down and install the drawbar to the chassis:
Advertisement
Related Manuals for AVANT A21110
Summary of Contents for AVANT A21110
- Page 1 Assembly manual for trailer A21110 & A21111 1. Drawbar Install the towing coupling in the drawbar’s rotating end, as shown in picture below. The coupling fits tight, so a hammer might be necessary. Turn the trailer upside down and install the drawbar to the chassis:...
- Page 2 When installing the drawbar, note that the drawbar support should be facing the ground when the trailer is upright: Drawbar support 2. Install wheels while the trailer is upside down:...
- Page 3 3. Turn the trailer upright, remove the bolts that hold the side plywood to the chassis and place side supports as shown in the picture: Note that the outer side supports have to have bracket answers riveted to them.
- Page 4 4. Place the side profile plates as shown on the picture and fix the side plates to the chassis, on the points marked with arrows:...
- Page 5 5. Install the 2‐part end plates:...
