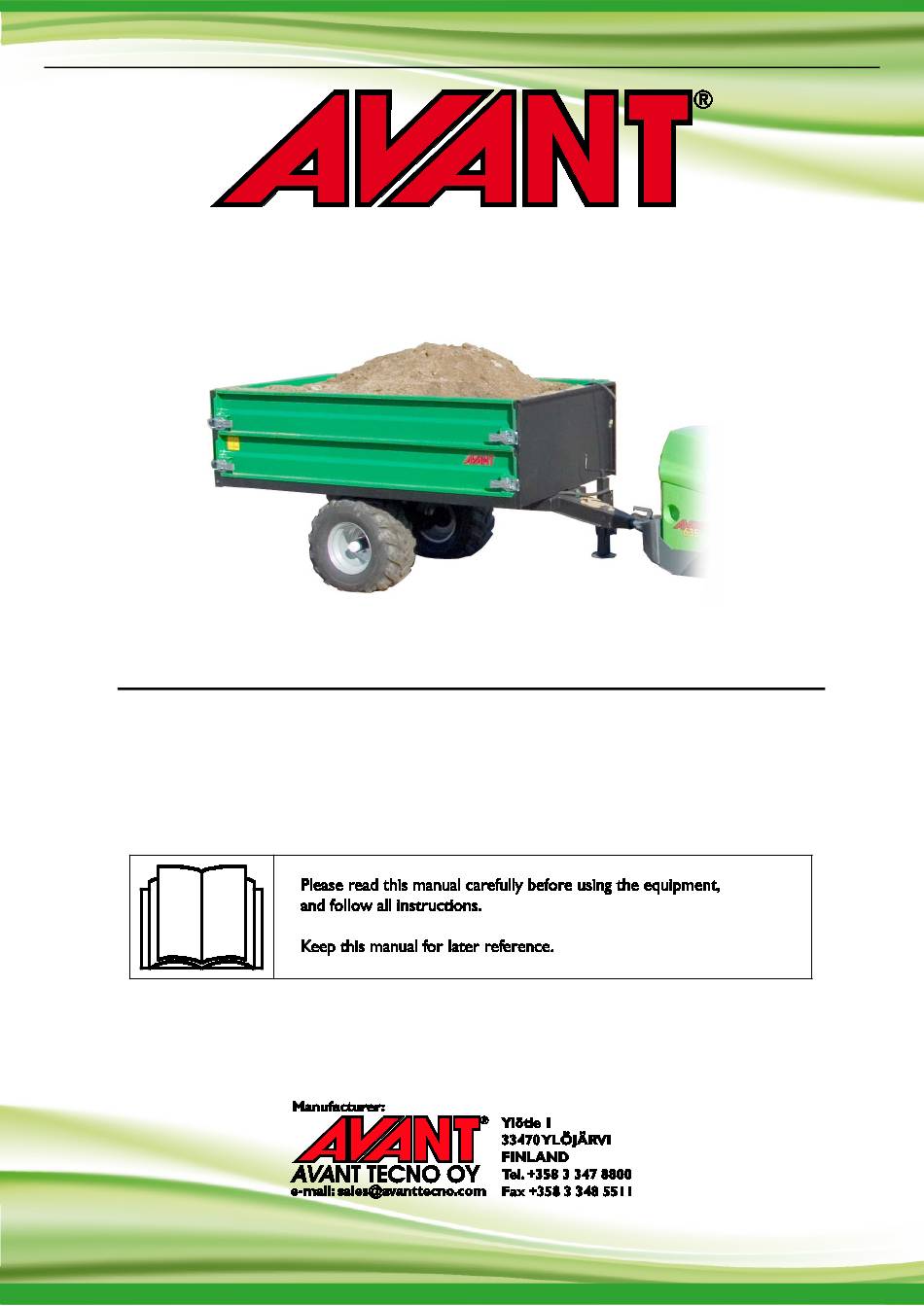

- Page 1 English Tipping trailer 2019 1 Operator's Manual for Attachment Tipping trailer Product number A2949 A21200 www.avanttecno.com A438308 2019 1 EN 2016-...
- Page 2 Tipping trailer 2019 1...
-
Page 3: Table Of Contents
Tipping trailer 2019 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS ........................7 Personal protective equipment ...........................9 Safe shutdown procedure .............................9 4. TECHNICAL SPECIFICATIONS ......................10 Safety labels and main components of the attachment ..................11 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (26) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use

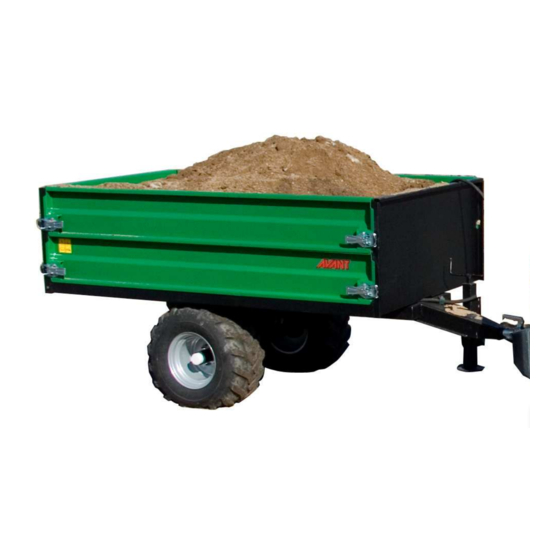

2. Designed purpose of use The AVANT Tipping trailer is an attachment that is suitable for use with AVANT multi purpose loaders that are shown in Table 1. The trailers are intended for transporting and dumping of loose materials materials, such as soil or sand. -
Page 7: Safety Instructions
7 (26) 3. Safety instructions Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's manuals of both the loader and the attachment before starting operation. - Page 8 8 (26) Make sure to use only an attachment that is in good condition. Check the attachment thoroughly in regular intervals. Do not modify the attachment in a manner that would affect its safety. It is prohibited to drill holes on the attachment, and welding or other means of fixing hooks or other objects on the attachment is strictly prohibited.
-
Page 9: Personal Protective Equipment
9 (26) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 10: Technical Specifications
2,0 – 2,3 bar 2,0 – 2,3 bar Maximum towing speed: 25 km/h 25 km/h Hydraulic function: 2-acting 2-acting Maximum input of hydraulic 225 bar, 40 l/min 225 bar, 40 l/min energy: Compatible AVANT loaders: See Table 1, Designed purpose of use... -
Page 11: Safety Labels And Main Components Of The Attachment
11 (26) 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover. - Page 12 12 (26) Table 3 - Decal locations and warning messages Decal Warning message 1 A46771 Misuse hazard - Read instructions before use. 2 A46800 Risk of falling of persons and getting run over. Never carry passengers with the loader or its attachments. 3 A46803 Crushing hazard, moving components.
-
Page 13: Assembling The Attachment
13 (26) 5. Assembling the attachment Hitching the Tipping trailer is quick and easy, but it must be done carefully. A trailer that becomes separated may slide or swing hitting the operator or other persons. To avoid hazardous situations, always follow the following instructions for hitching. -
Page 14: Connecting And Disconnecting Hydraulic Hoses
14 (26) Crushing hazard - Support the Tipping trailer properly when loading or unhitching. A loaded trailer may swing or move abruptly when unhitching it. A heavy trailer that starts to move can not be controlled manually. Due to this, the supporting of the trailer must be taken care of when loading or unhitching the trailer. -
Page 15: Operating The Attachment
If your loader is not listed in Table 1 on page , ask your Avant dealer before using this attachment. Avoid running over persons - Check surroundings before driving. Always look in the direction the loader is moving. - Page 16 Density of material, (indicative), Material kg / l (t / m³) Snow 0,2 - 0,8 Example: Tipping trailer A2949 (volume 0,48 m³) is filled with Wood chips 0,15 - 0,3 soil up to its sides (single sides). Wood pellet ~ 0,65...
-
Page 17: Use
17 (26) Tipping over hazard - Keep the operating area of the trailer clear. The possibility of tipping over of the trailer and the movements of the trailer cause a risk for serious personal injuries or death. Make sure that there are no other persons at the operating area of the trailer. -
Page 18: Opening And Removing The Sides
18 (26) 6.3 Opening and removing the sides After opening the locking of the sides, the plates can be removed by lifting them straigth upwards. Keep the sides attached and locked always during transitions. Extra extending of the sides is prohibited. -
Page 19: Tipping The Trailer
19 (26) 6.4 Tipping the trailer Use the tipping function only from the driver’s seat and only at the final emptying area. Verify that tipping is safe by checking the terrain inclinations and by keeping others at a safe distance away from the equipment due to the overturning risk of the trailer. -
Page 20: Operating The Rear Hydraulic Outlet Of The Loader
20 (26) 6.4.1 Operating the rear hydraulic outlet of the loader Control of the rear hydraulics varies according to the loader model and the implementation of the rear hydraulics. More information can be found from the operator’s manual of the loader. ... -
Page 21: Working On Uneven Ground
21 (26) 6.5 Working on uneven ground Extra caution is needed when using the equipment on inclined terrains and slopes. Drive slowly especially on inclined, uneven, or slippery surfaces, and avoid sudden changes in speed or direction. Operate the controls of the loader with careful and smooth movements. -
Page 22: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 23: Cleaning The Attachment
23 (26) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 24: Warranty Terms
24 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 25 Avant Max. last Max. load Perävaunu hydraulitoimisella kipillä; Avant-kuormaajan työlaite A2949 1200 kg Tippvagn med hydraulisk kipp; arbetsredskap för Avant lastare Trailer with hydraulic tipping; attachment for Avant loaders A21200 1800 kg 11.10.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör /...
