  • Page 1 OPERATIONS MANUAL METER SITE ANALYZER PRODUCT: CATALOG NO. 6330...
  • Page 2 METER SITE ANALYZER OPERATIONS MANUAL CATALOG NO. 6330 © 2020 TESCO - The Eastern Specialty Company All Rights Reserved. Specifications are subject to change without prior notice. Revision TESCO – The Eastern Specialty Company 925 Canal Street Bristol, PA, 19007 Phone: 215.228.0500...
  • Page 3 If no warranty period is specified below and signed by an authorized DISTRIBUTOR of TESCO, the Warranty Period shall be one (1) year. In no event shall this Warranty remain in effect for more than the stated Warranty Period plus two (2) months after the date of shipment.
  • Page 4 The Warranty set forth herein shall NOT be effective unless: 1. Notice of defect is given to TESCO by phone, fax, email or mail as soon as the defect is discovered.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS 1.0 INTRODUCTION ....................... 1 1.1 Introduction ........................2 1.2 Contacting TESCO......................2 1.3 General Safety Summary ....................3 1.4 Description of Safety-related Icons ................... 3 1.5 Product Features ......................4 1.5.1 Key Features ..........................4 1.5.2...
  • Page 6 OPERATIONS MANUAL 3.3.2.1 Manual Mode ......................... 16 3.3.2.1a Meter Test ........................17 3.3.3.1b CT Testing ......................... 20 3.3.3.1c Pulse Alignment Check ..................... 24 3.3.2.2 Sequence Testing ........................25 3.3.2.3 Database ..........................26 3.3.2.3a New/Edit Site ........................27 3.3.2.3b New/Edit Meter ....................... 28 3.3.2.3c New/Edit CT ........................
  • Page 7 TABLE OF CONTENTS 5.0 MAINTENANCE ......................40 5.1 Introduction ........................41 5.2 Cleaning the Instrument External Surface ............... 41 5.3 Repair / Parts Replacement / Recalibration ..............41 www.tescometering.com +1 215 228 0500 support@tescometering.com...
  • Page 8: Introduction

    INTRODUCTION 1.0 INTRODUCTION 1.1 Introduction ........................2 1.2 Contacting TESCO......................2 1.3 General Safety Summary ....................3 1.4 Description of Safety-related Icons ................... 3 1.5 Product Features ......................4 1.5.1 Key Features ..........................4 1.5.2 Standard Features ........................4 1.5.3 Standard Unit ..........................
  • Page 9: Contacting Tesco

    CTs, PTs, and other issues. If you want to be sure the customer is billed correctly and you are not losing revenue, you must test the whole site, not just the meter — this is where TESCO’s Meter Site Analyzer (Catalog No. 6330) comes in.
  • Page 10: General Safety Summary

    INTRODUCTION 1.3 General Safety Summary This manual contains information and warnings that must be observed to ensure safe operation and keep the Site Analyzer in a safe condition. Operation or service in conditions or in a manner other than specified could compromise safety. For the correct and safe use of this device, it is essential that both operating and service personnel follow accepted safety procedures in addition to the safety precautions specified, including proper PPE guidelines.
  • Page 11: Product Features

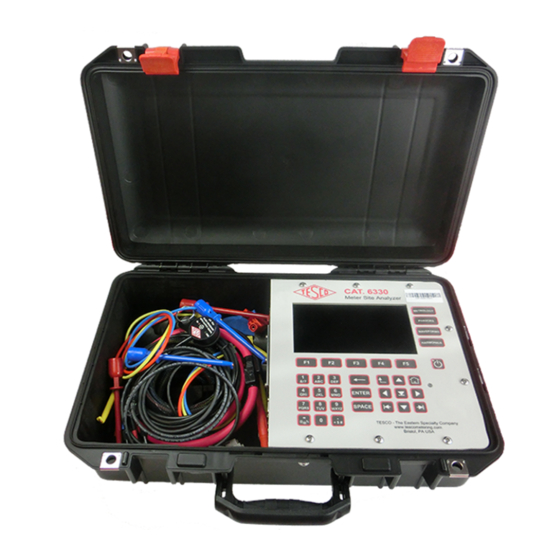

    1.5.3 Standard Unit These are the standard items included in the package: • 6330 TESCO Meter Site Analyzer • Optical pickup (1037-SA) with 9.84 ft. cable, Next Gen compatible • Battery charger (90W 19VDC output, 85 -264VAC input with 6 ft. cord) 1.5.4...
  • Page 12: Optional Accessories

    INTRODUCTION 1.5.5 Optional Accessories • SENSORLINK high voltage probe • 50 ft. extension cables for Rogowski coils • Diamond Level Support 1.6 General Specifications 1.6.1 Input Characteristics PARAMETERS DATA Supply Frequency 50/60Hz Power Supply Adaptor 19VDC, 4.74A Output Power 90W Max. 1.6.2 Dimensions PARAMETERS...
  • Page 13: About This Operations Manual

    OPERATIONS MANUAL 1.7 About this Operations Manual This manual provides complete information for setting up and operating the Site Analyzer. This document instructs the user on the following operations of the CAT. 6330: Setup  Front Panel Features  Graphical User Interface (GUI) ...
  • Page 14 OPERATIONS MANUAL 2.0 SETUP 2.1 Introduction ........................7 2.2 Unpacking and Inspection ....................7 2.3 Setup, Airflow and Cooling Considerations ............... 7 2.3.1 Setup and Placement .......................... 7 2.4 Main Power Supply ......................7 +1 215 228 0500 www.tescometering.com support@tescometering.com...
  • Page 15: Introduction

    A packing list is included in the packaging. When you unpack the Site Analyzer, check for all the standard equipment listed and check the shipping order for any additional items ordered. Report any shortage to the place of purchase, your distributor, or directly to TESCO. 2.3 Setup, Airflow and Cooling Considerations 2.3.1 Setup and Placement...
  • Page 16 OPERATIONS MANUAL 3.0 FUNCTIONALITY 3.1 Introduction ........................10 3.2 Panel Features ......................10 3.2.1 Front Panel Sections ........................... 10 3.2.2 Side Panel Sections ..........................11 3.2.3 Front Panel Buttons ..........................11 3.3 The Graphical User Interface (GUI) ................. 12 3.3.1 GUI Screen Sections ..........................12 3.3.2 Main Menu ............................
  • Page 17 FUNCTIONALITY 3.3.2.5c Configuration ........................37 3.3.2.5d Serial Numbers ......................... 38 3.3.2.5e Software Versions ......................38 3.3.3 Fast Access Functions ......................... 13 3.3.3a Metrology ..........................13 3.3.3b Phasors ............................ 14 3.3.3c Waveforms ..........................14 3.3.3d Harmonics ..........................15 www.tescometering.com +1 215 228 0500 support@tescometering.com...
  • Page 18: Introduction

    Front panel features (controls, displays, indicators) and side panel sections (terminals) are shown in Figure 3.2.1 and Figure 3.2.2 respectively. 3.2.1 Front Panel NUMBER DESCRIPTION LCD screen Function keys Keypad Fast access keys Power button Navigation buttons Table 3.2.1. CAT. 6330 Front Panel Sections +1 215 228 0500 www.tescometering.com support@tescometering.com...
  • Page 19: Side Panel Sections

    Optical Pickup Terminal Ethernet Communication USB type-B port USB type-A ports Battery Compartment Table 3.2.2. CAT. 6330 Side Panel Sections 3.2.3 Front Panel Buttons SYMBOL DESCRIPTION • Selects the NEXT or PREVIOUS menu item • Moves the SELECTED LINE UP or DOWN •...
  • Page 20: The Graphical User Interface (Gui)

    Screen Title Status Bar Screen Data Function Buttons Table 3.3.1. CAT. 6330 GUI Sections STATUS BAR ICONS These icons are located at the status bar of the screen. They are indicators of different network connections and temperature levels of the device.
  • Page 21 FUNCTIONALITY 3.3.2 Fast Access Functions SCREEN DESCRIPTION The “FAST” access buttons provide instant access to various measurements at any time. Pressing one of the buttons brings up the display regardless of what is shown on the screen. Pressing the same button again shows the previous screen.
  • Page 22 OPERATIONS MANUAL 3.3.2b Phasors SCREEN DESCRIPTION Displays a phasor diagram for the active phases. Diagram is continuously updated. NOTE: The phase colors were changed in 3.3.2.4b Colors/Beepers Options. KEYPAD & FUNCTION KEYS: PRIMARY Switch to the primary reading. SECONDARY Switch to the secondary reading. HOLD Freeze the data acquisition.
  • Page 23 FUNCTIONALITY 3.3.2d Harmonics SCREEN DESCRIPTION Displays live reading of the harmonics up to the 50th. Data can be represented by columns or points. NOTE: The phase colors were changed in 3.3.2.4b Colors/Beepers Options. KEYPAD & FUNCTION KEYS: Change Y axis from linear to log scale. Show the 1 harmonic (fundamental) SHOW FIRST...
  • Page 24: Main Menu

    OPERATIONS MANUAL 3.3.3 Main Menu SCREEN DESCRIPTION The MAIN MENU contains the core functions of the device. A site can be selected using the SITE dropdown box. Clicking the GPS LOCATE button will narrow the choices for SITE to those at the current GPS location. If only one site is found, that site will be loaded.
  • Page 25: Meter Test

    FUNCTIONALITY 3.3.3.1a Meter Test SCREEN DESCRIPTION Perform a meter test to determine the accuracy of the meter under different loads. METER TEST FUNCTION KEYS: NEW ADV SETUP Perform to check pulse alignment. section 3.3.2.1c Pulse PULSE ALIGN Alignment Check more information.
  • Page 26 OPERATIONS MANUAL SCREEN DESCRIPTION TIMED RUN TEST B. TIMED RUN TEST A timed run test is identical to an accuracy test except the minimum time for the test is set. The actual measurement still starts and ends based on the meter pulses. PARAMETERS TEST DURATION Set the test duration.
  • Page 27 FUNCTIONALITY SCREEN DESCRIPTION E. ENERGY TEST ENERGY TEST The energy delivered test is similar to the timed register test. The difference is that instead of specifying the time for the test to run we specify the amount of energy to be delivered. PARAMETERS Set the amount of energy to be delivered to ENERGY DELIVERED...
  • Page 28: Ct Testing

    OPERATIONS MANUAL 3.3.3.1b CT Testing SCREEN DESCRIPTION CT TEST MODES CT TEST The CAT6330 provides a wide range of methods for testing CTs. The change in the secondary current is measured as the burden placed on the CT is BURDEN ONLY increased.
  • Page 29 FUNCTIONALITY SCREEN DESCRIPTION CT TEST RESULTS BURDEN ONLY CT test results are presented for Ratio, Burden, Ratio with Burden, and Admittance tests. Soft keys provide many different ways of looking at the test data. The test on each CT will PASS •...
  • Page 30 OPERATIONS MANUAL SCREEN DESCRIPTION CT RATIO ONLY RATIO ONLY The ratio only test measures the complete set of CT parameters and displays them in numeric and graphical form. The data is also displayed on the IEEE accuracy parallelogram. CTs which meet the requirements of their accuracy class will be represented by points inside the parallelogram.
  • Page 31 FUNCTIONALITY Label changes depending on what view you are in. In CURVES view, it CURVES shows PARALLELOGRAM changes to PARALLELOGRAM plot when pressed. DONE or SAVE will be available DONE depending on whether a site has SAVE been selected. DATA Burden resistance ΔI (%) Measured current...
  • Page 32: Pulse Alignment Check

    OPERATIONS MANUAL SCREEN DESCRIPTION DEMAGNETIZATION TEST DEMAG Demagnetize all CTs. Current transformer demagnetization is done by gradually increasing the secondary resistance from low to high then from high to low at a consistent rate. KEYPAD & FUNCTION KEYS Shift between different display CT #1 modes.
  • Page 33: Sequence Testing

    FUNCTIONALITY 3.3.3.2 Sequence Testing SCREEN DESCRIPTION Sequence testing is performed when there is more than one type of test to SEQUENCE TESTING execute. The user can select what test will be included in the sequence. To know how to perform a Sequence Test, proceed to section 4.3 Sequence Test.
  • Page 34: Database

    OPERATIONS MANUAL 3.3.3.3 Database SCREEN DESCRIPTION This contains information on sites registered in the Site Analyzer. The user can DATABASE create a new site and edit an existing record. Aside from the site, the user can also create and edit Meter, CT, and Customer information per site. The database also shows test results from Meter and CT tests.
  • Page 35: New/Edit Site

    FUNCTIONALITY 3.3.3.3a New/Edit Site SCREEN DESCRIPTION NEW/EDIT SITE NEW SITE Create new site information. Fill out the information and save it in the database. If the site info is for editing, the fields will be filled with pre-saved information of that site and the user can make changes. NEW SITE INFO KEYPAD &...
  • Page 36: New/Edit Meter

    OPERATIONS MANUAL 3.3.3.3b New/Edit Meter SCREEN DESCRIPTION Create new meter information. Fill out the information and save it in the NEW/EDIT METER database. If the existing meter info is for editing, the fields will be filled with pre-saved information of that meter and the user can make changes. KEYPAD &...
  • Page 37: New/Edit Ct

    FUNCTIONALITY 3.3.3.3c New/Edit CT SCREEN DESCRIPTION NEW CT NEW/EDIT CT Create new CT information. Fill out the information and save it in the database. A maximum of three (3) CTs can be added at a time. If the existing CT info is for editing, the fields will be filled with pre-saved information of that CT and the user can make changes and save them.
  • Page 38: New/Edit Customer

    OPERATIONS MANUAL 3.3.3.3d New/Edit Customer SCREEN DESCRIPTION NEW/EDIT CUSTOMER CUSTOMER INFO Create new customer information. Fill out the information and save it in the database. If the customer info is for editing, the fields will be filled with pre- NEW CUSTOMER saved information of that customer and the user can make changes.
  • Page 39: Test Results

    FUNCTIONALITY 3.3.3.3e Test Results SCREEN DESCRIPTION SITE TEST RESULTS All of the test results for the selected site are displayed and organized by test session. The display indicates which test types are included in a particular test session. Use the buttons to scroll to a site and press ENTER to select.
  • Page 40 OPERATIONS MANUAL SCREEN DESCRIPTION ADD METER LIBRARY Create a new meter library. KEYPAD & FUNCTION KEYS: SAVE Save new meter library. Return to the METER LIBRARY BACK screen. Press to return to the previous screen. +1 215 228 0500 www.tescometering.com support@tescometering.com...
  • Page 41: Test Sequences

    FUNCTIONALITY 3.3.3.3g Test Sequences SCREEN DESCRIPTION TEST SEQUENCES KEYPAD & FUNCTION KEYS: TO BE REPLACED Press to return to the previous screen. 3.3.3.4 Preferences SCREEN DESCRIPTION PREFERENCES Change or update the options and settings for the device. KEYPAD & FUNCTION KEYS: Select method of assigning IP NETWORK address...
  • Page 42: Network/Security Options

    OPERATIONS MANUAL 3.3.3.4a Network/Security Options SCREEN DESCRIPTION NETWORK/SECURITY Select whether the Ethernet address is selected through DHCP or set manually. KEYPAD & FUNCTION KEYS: EDIT Edit network connection. Lock all information from editing. This is enabled when the EDIT LOCK button is pressed.
  • Page 43: General Options

    FUNCTIONALITY 3.3.3.4c General Options SCREEN DESCRIPTION GENERAL OPTIONS Select how the brightness level of the screen is managed. Press to return to the previous screen. DATA BRIGHTNESS Manually set brightness level of screen. LEVEL Automatically adjust brightness of the screen. AUTO ADJUST The dropdown selection of Brightness Level will be disabled.
  • Page 44: System Information

    OPERATIONS MANUAL 3.3.3.5 System Information SCREEN DESCRIPTION This contains information on the user, temperature, load box, controllers, and SYSTEM INFO operating system of the Site Analyzer. KEYPAD & FUNCTION KEYS: View/Edit user’s name and time USER and date settings. Check temperature TEMPS circuit, CTs, and battery.
  • Page 45: Temperature

    FUNCTIONALITY 3.3.3.5b Temperature SCREEN DESCRIPTION TEMPS This contains the information on the temperature of the device. DATA Temperature of SOM BURDEN Temperature of burden circuit CIRCUIT TEMPERATURES CT PHASE A Temperature of CT Phase A CT PHASE B Temperature of CT Phase B CT PHASE C Temperature of CT Phase C SHOW...
  • Page 46: Serial Numbers

    OPERATIONS MANUAL 3.3.3.5d Serial Numbers SCREEN DESCRIPTION SERIAL NUM This contains the serial numbers of the controllers. DATA PART NUMBER Part number of the listed boards SERIAL NUMBER Serial number of the listed boards Press to return to the previous screen. 3.3.3.5e Software Versions SCREEN DESCRIPTION...
  • Page 47: Configurations

    FUNCTIONALITY 4.0 CONFIGURATIONS 4.1 Meter Test ............................. 40 4.2 CT Test ..............................40 4.3 Sequence Test ............................42 www.tescometering.com +1 215 228 0500 support@tescometering.com...
  • Page 48: Meter Test

    OPERATIONS MANUAL 4.1 Meter Test SCREEN DESCRIPTION HOW TO PERFORM METER TEST: 1. If a site was preselected, the test parameters will be automatically filled in. Otherwise, manually input the parameters and select the test load and test type. 2. If an optical probe is attached to the meter, the meter’s pulse output can be aligned by pressing [PULSE ALIGN].
  • Page 49: Ct Test

    FUNCTIONALITY 4.1.1 Energy Test SCREEN DESCRIPTION HOW TO PERFORM ENERGY METER TEST: STARTING METER READING 1. Press [START]. 2. Enter meter kWh. ENDING METER READING 4.2 CT Test SCREEN DESCRIPTION HOW TO PERFORM A CT TEST: 1. Select a CT Test type: •...
  • Page 50: Sequence Test

    OPERATIONS MANUAL 4.3 Sequence Test SCREEN DESCRIPTION HOW TO PERFORM SEQUENCE TESTING: 1. Select a site in the Main Menu. This is required before Sequence Setup can be accessed. 2. Set the Sequence Name and Tolerance for the pass or fail criteria. The TA and Service can’t be changed as they were already configured in the chosen site.
  • Page 51: Maintenance

    OPERATIONS MANUAL 5.0 MAINTENANCE 5.1 Introduction ........................41 5.2 Cleaning the Instrument External Surface ............... 41 5.3 Repair / Parts Replacement / Recalibration ..............41 +1 215 228 0500 www.tescometering.com support@tescometering.com...
  • Page 52: Introduction

    5.3 Repair / Parts Replacement / Recalibration For the Site Analyzer’s repair, parts replacement, and recalibration, directly contact TESCO through phone or email. See section 1.2 Contacting TESCO for contact details. TESCO recommends recalibration on an annual basis. Further details can be found on the Calibration Certificate provided with your Site Analyzer.
