- Page 1 Operation Manual...
- Page 2 INDEX A. Introductions -------------------------- 1 B. Features --------------------------------- 1 C. The Panel and Shape ---------------- 2 D. The LCD Display ---------------------- 3 E. Operation Instructions --------- 4 ~ 6 F. Precaution ---------- ------------- 7 G. Specifications----------------------- 8 H. Memo------------------------------------- 9...
- Page 3 H. Memo - 9 -...
- Page 4 G. M-700S Specifications Measurement range 5.5 ~ 55.0% (% WME) 3% Accuracy (at 25C) (difference as the testing materials.) Resolution 0.1% Display Multi-Functions Digital LCD display Operating Range -10 ~ +50C (with temp. compensated) Sampling rate Approx. 1 reading/Sec. Auto/Manual turn off, Hold function, Record Maximum &...

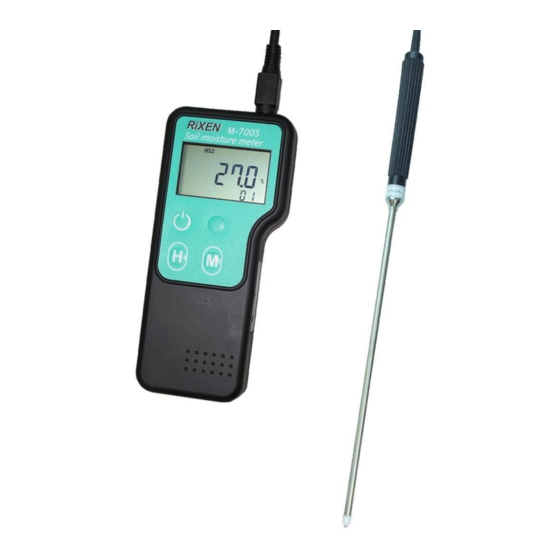

- Page 5 A. Introductions The Soil Moisture Meter M-700S is the complete instrument for measuring moisture levels of soils. Read moisture reading of soils from high accurate digital LCD indicator. Press REC (Record) and H-D (Hold) keys can record the maximum and minimum reading, which can be applied at majority sampling and quality control.
- Page 6 C. The Panel and Shape LCD Display CAL Key Power Switch HOLD Key MODE Key Moisture Probe in Offset calibration screw AC Adaptor connector DC 9V Battery box - 2 -...
- Page 7 F. Precaution 1. The power supply is 9V Battery, and can option to use AC adaptor. Please notice the power supply when operation. 2. When measuring, please don’t touch the moisture probe, and don’t use the moisture probe and outside moisture probe simultaneously to avoid wrong measuring value.
- Page 8 Calibration Method: Turn off the meter. Keep the CAL key pressed and press key to turn on the power. When display indicate symbol “CAL” to enter calibration Mode. The indication reading should be 16.4% (0.5). If need to calibrate, please use screwdriver to calibrate from right-side of meter.
- Page 9 D. The LCD Display Low battery warns MAX Value Hold Value MIN Value Recording value warns Moisture Value Recording Mode Calibration Mode Manual Power off - 3 -...
- Page 10 E. Operation Instructions 1. Turn On: Press key to turn on the Meter, It will run to set up inside Automatic temperture compensation in few seconds. (display 8888). ※ Meter will be auto turn off after 30 seconds. 2. Manual Turn Off: Keep the key Pressed and press key to turn on the power, The display will indicate symbol “E”...
- Page 11 6. MAX, MIN (Recall): After step 5. MAX. MIN. (Record), press key to stop record function (display indicates “HOLD”). Press key again to read MAX reading (display indicates “MAX HOLD”). Press key again to read MIN reading (display indicates “HOLD MIN”). ※...
