Rixen A80 Instruction Manual

Level-Angle Meter A80 Instruction Manual

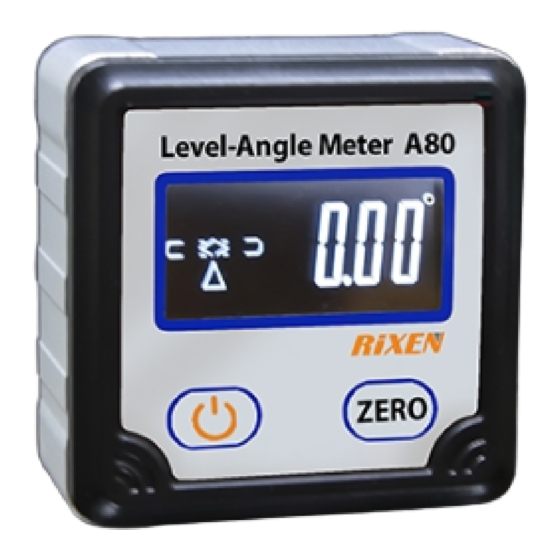

Level-Angle Meter A80
ZERO
Screen Icons
ABS Indicates that the instrument is working in absolute angle mode
-1-
Indicates that the instrument is calibrating for one direction
-2- Indicates that the instrument is calibrating for another direction
Warning of the vertical axis deviation
Button Function
1. Press the
After not pressing any button for about 5 minutes, the device will automatically shut down.
(1) With the device turned on, press the
measurement mode. (Set the current measurement position to "zero")
(2) In the relative measurement mode, the "ABS" symbol on the LCD will disappear.
(3) The relative measurement mode allows the operation to measure the difference between two objects.
(4) To return to (ABS) absolute measurement mode, press the

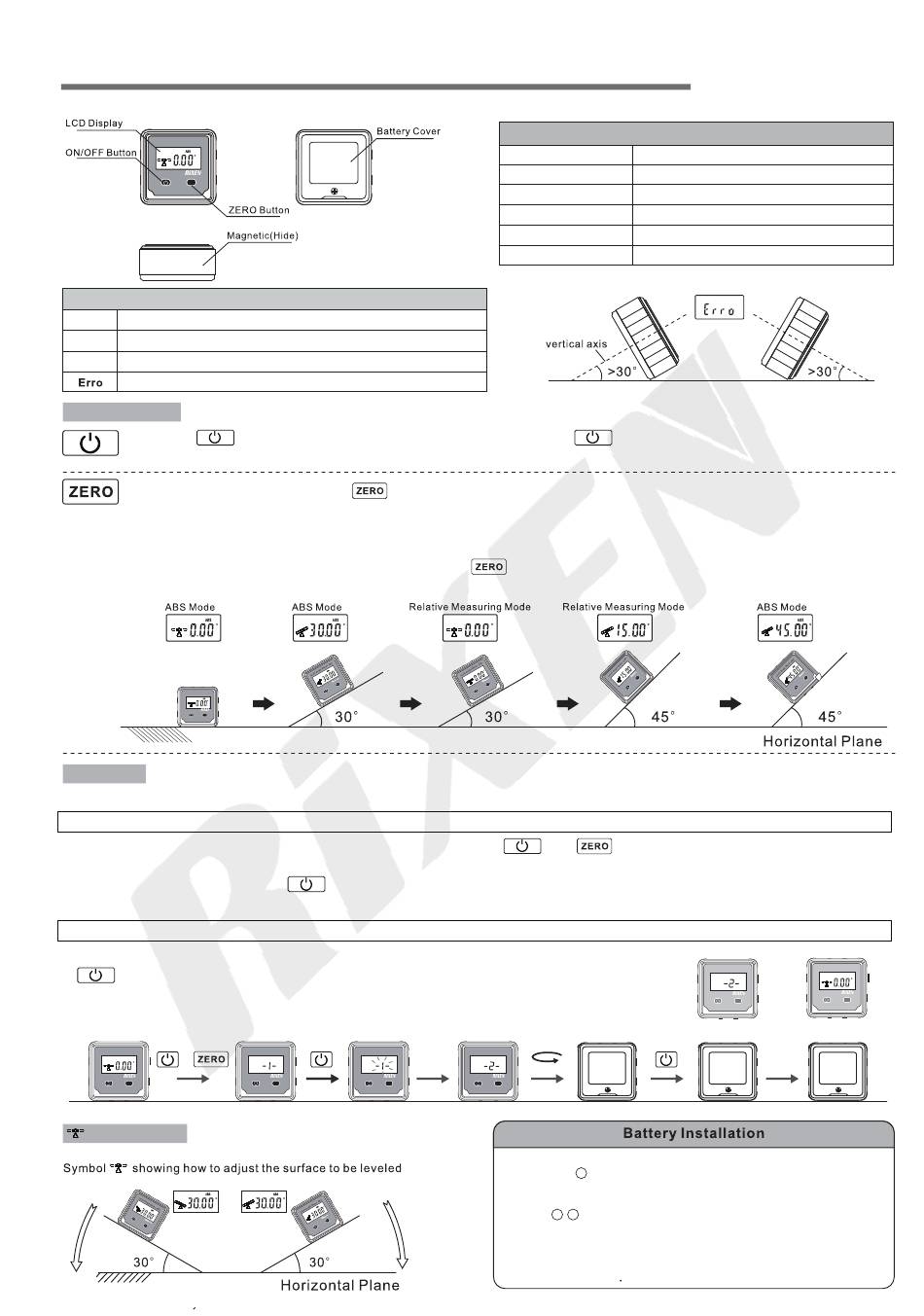

※Please refer to the picture below
Level-Angle Meter A80
ZERO
Calibration
The instrument has been calibrated before leaving the factory, so there is no need to calibrate or adjust it before use.
* If the measurement error is too large due to drop, impact, maintenance or other factors......you must Perform recalibration.
(1) Place the instrument on a stable plane as flat and smooth as possible, press
to start the calibration mode, and display "-1-".
(2) When "-1-" is displayed, press the
After completion, it will automatically display "-2-".
* Note: When "-1-" flashes briefly, do not move the instrument until "-2-" appears.
(3) After completing the above item (2), turn to the same position and rotate 180° in place, then press the
key, "-2-"will flash briefly, and the second stage of correction has been performed.
(4) In the state of (3) above, do not move the instrument until "-2-" disappears, and the current measured value
is displayed to complete the calibration.
Level-Angle Meter A80 +
ZERO
Icon Function
button once to turn the unit on. To turn off the unit, hold the
button to set the display to zero and enter the relative
key, and "-1-" will flash briefly. This is the first stage of calibration.
Level-Angle Meter A80 Level-Angle Meter A80
ZERO ZERO
A80 Technical Specifications
Accuracy 0°~90° : ± 0.1°, the rest : ±0.2
Resolution 0.05°
Working Range 90°×4
Power Supply AAA alkaline battery×2
Working Temperatrue -5~+45°C (23~113°F)
Working Humidity ≤85%RH
button for 3 seconds,
button once.
and two keys at the same time
180°
Level-Angle Meter A80
ZERO
1. Turn off the power of the instrument.
2. Use a small + screwdriver to remove the battery cover.
(Removing the screw will temporarily attract the bottom surface
of the instrument to prevent loss.)
+ -
3. Follow instructions to install two new batteries.
4. Replace the battery cover.
5. Please comply with local battery recycling regulations.
Note: When storing the instrument for a long time, make sure to
remove the battery from the instrument.
Level-Angle Meter A80
Level-Angle Meter A80
ZERO
ZERO
Rixen A80 Jnue 2020
